4XTE Transaxle Hydraulic Schematics

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

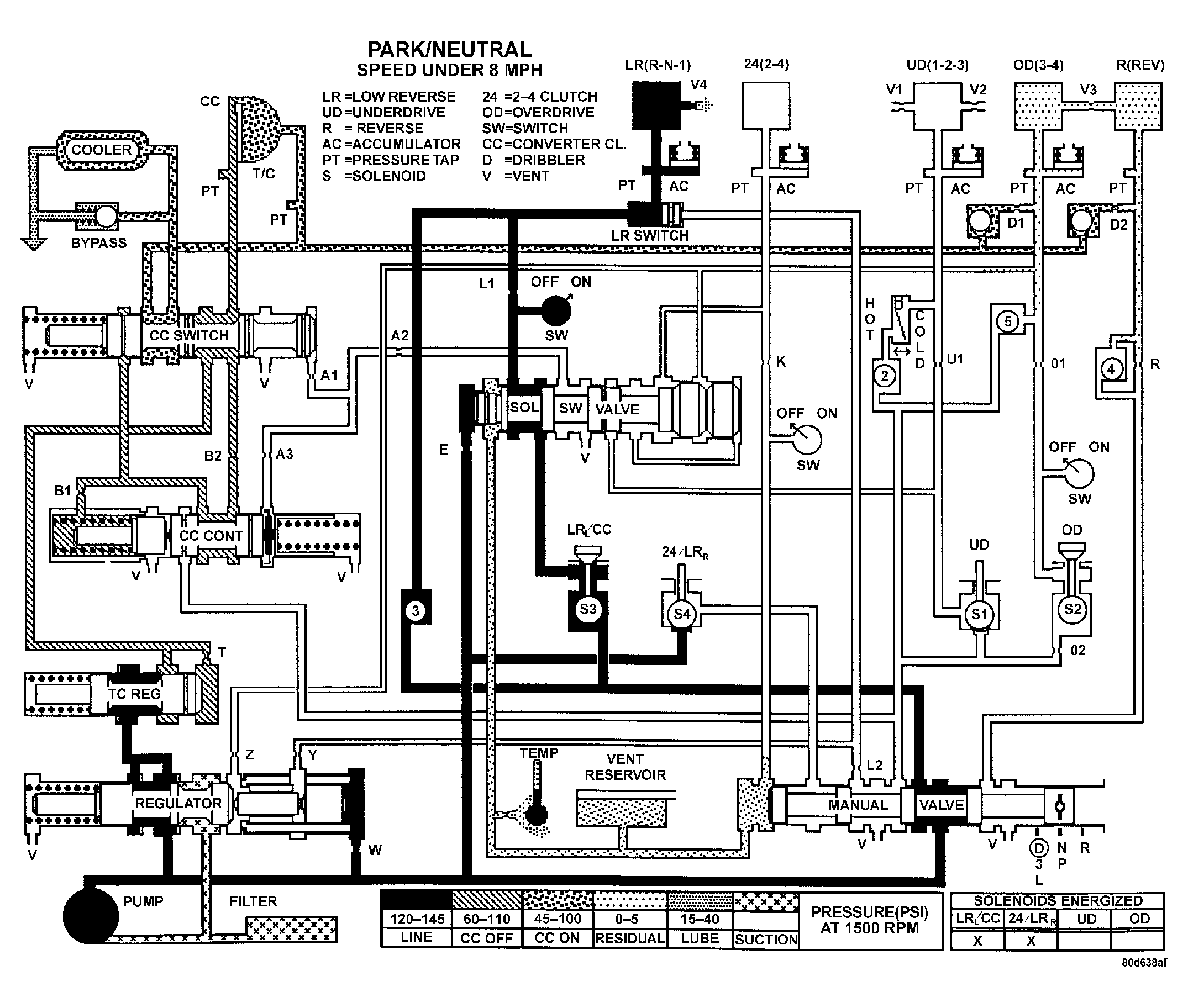

Fig 1: Park/Neutral (Speed Under 8 MPH)

Courtesy of DAIMLERCHRYSLER CORP.

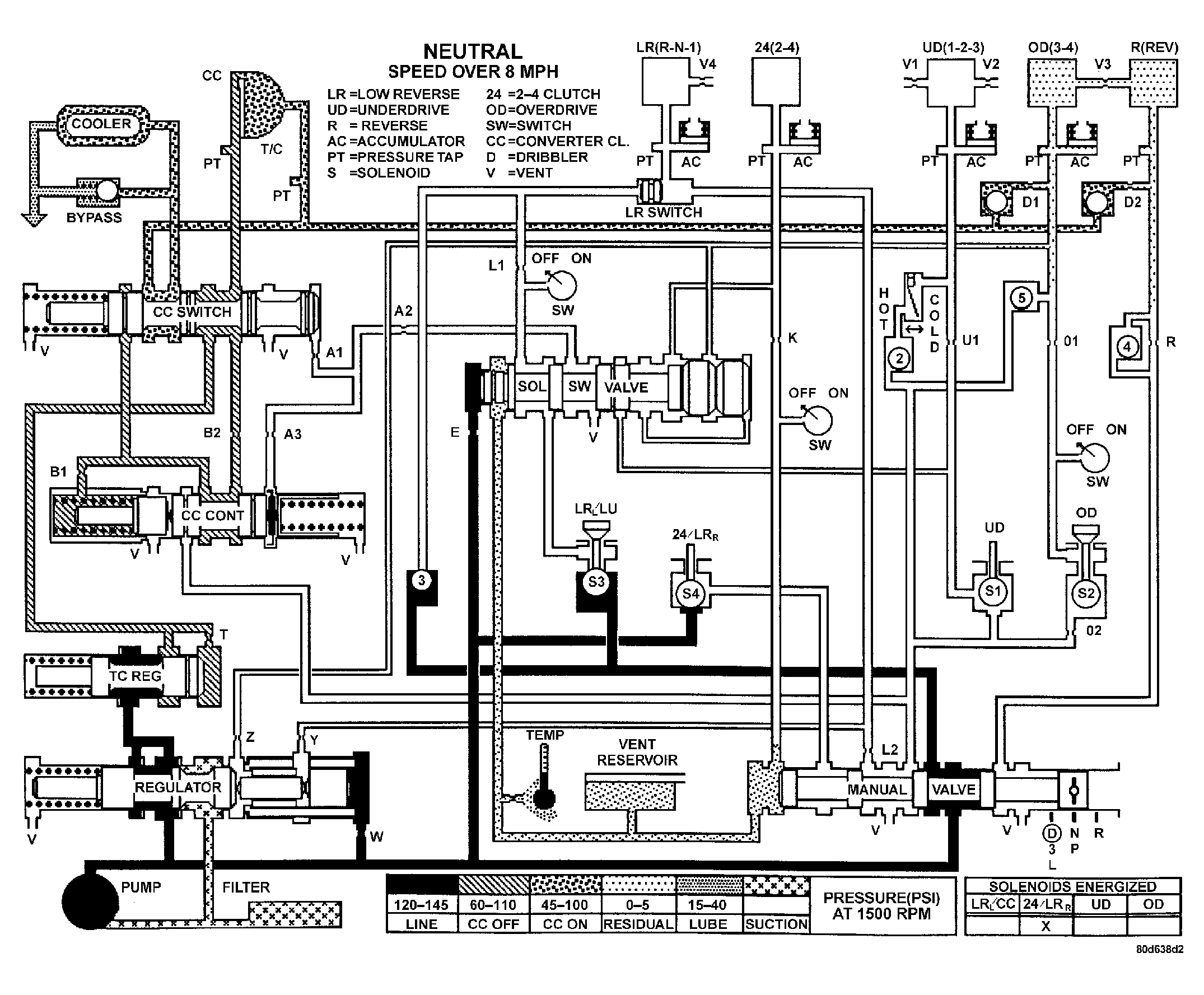

Fig 2: Neutral (Speed Over 8 MPH)

Courtesy of DAIMLERCHRYSLER CORP.

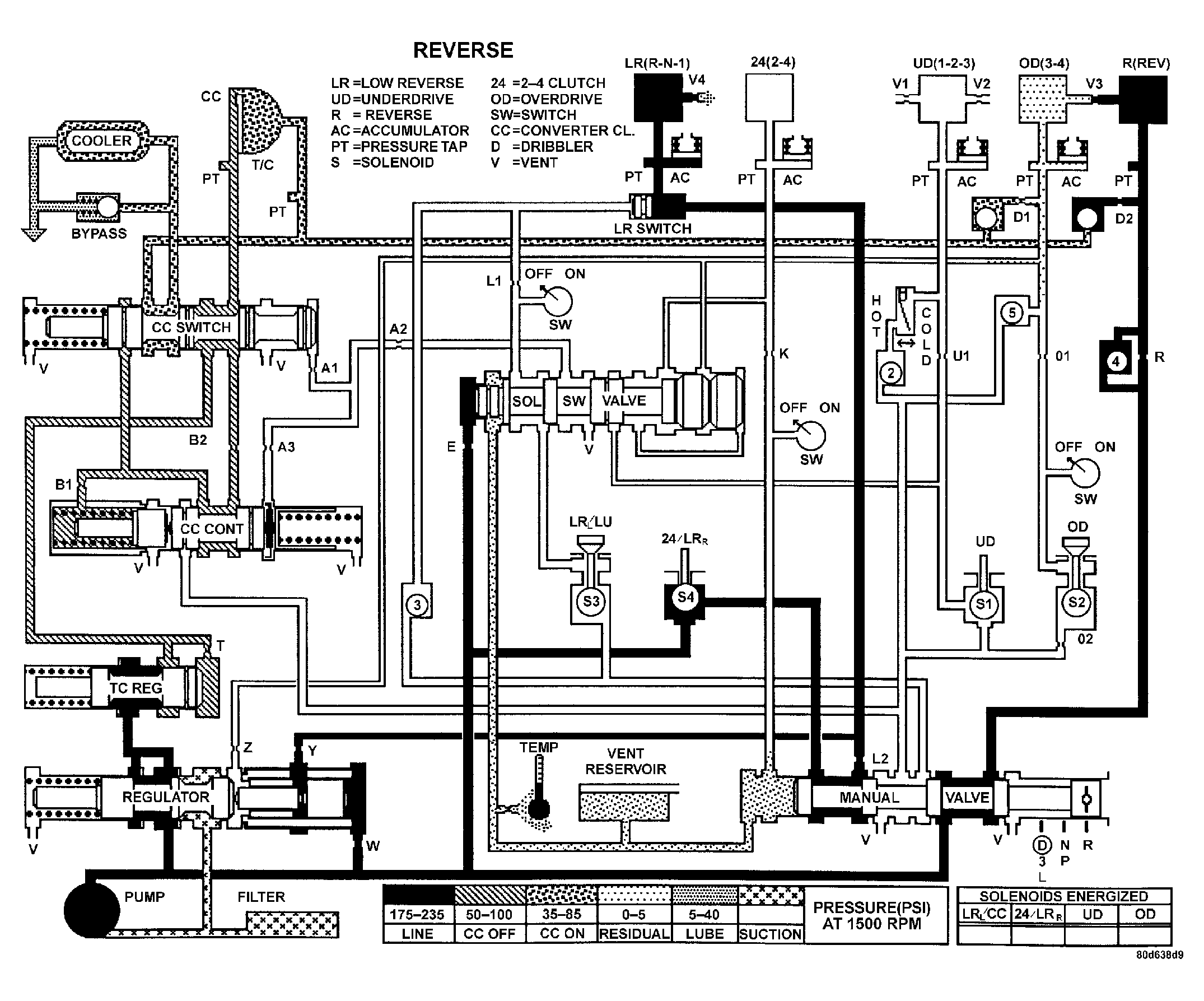

Fig 3: Reverse

Courtesy of DAIMLERCHRYSLER CORP.

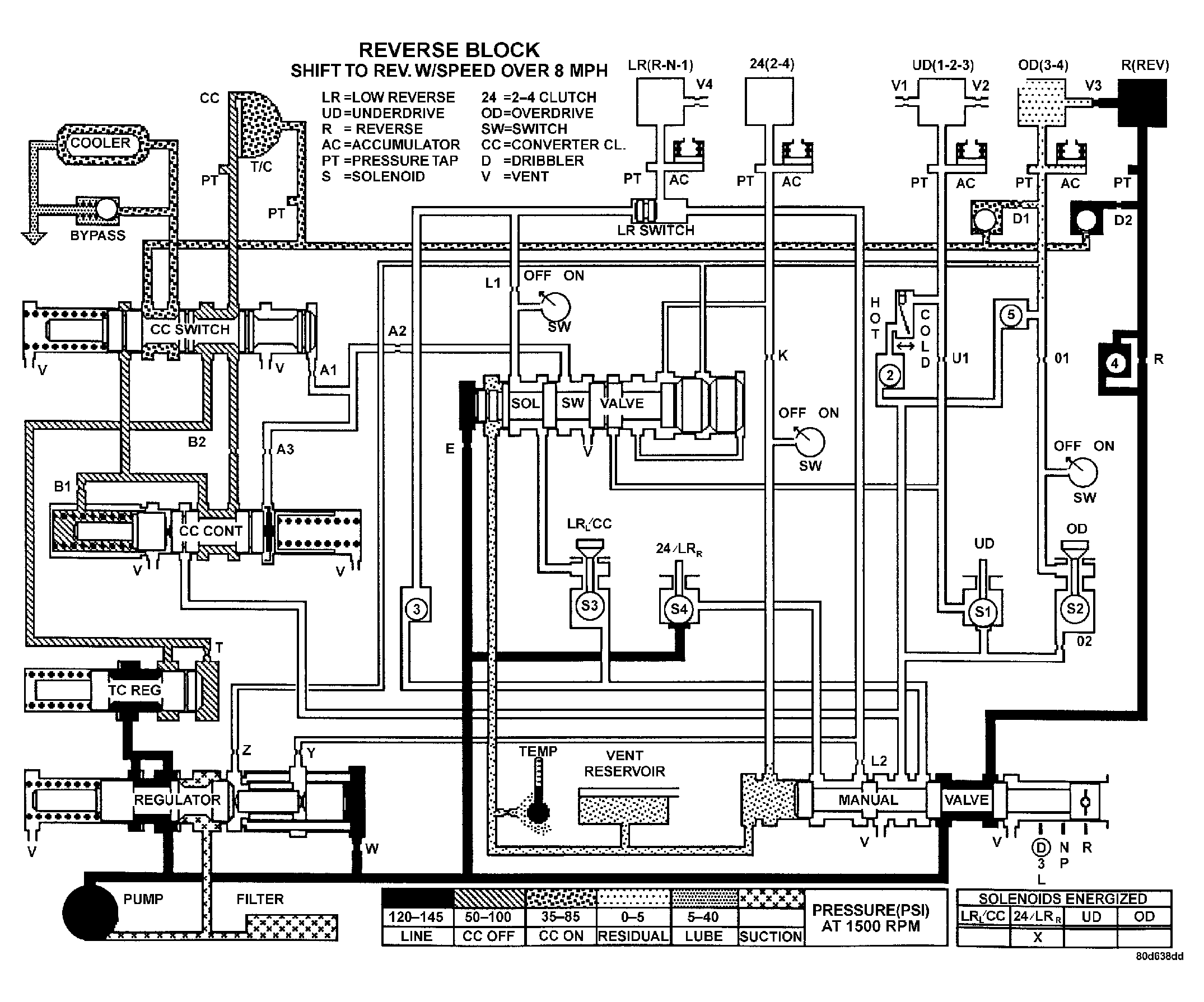

Fig 4: Reverse Block (Shift to Reverse W/Speed Over 8 MPH)

Courtesy of DAIMLERCHRYSLER CORP.

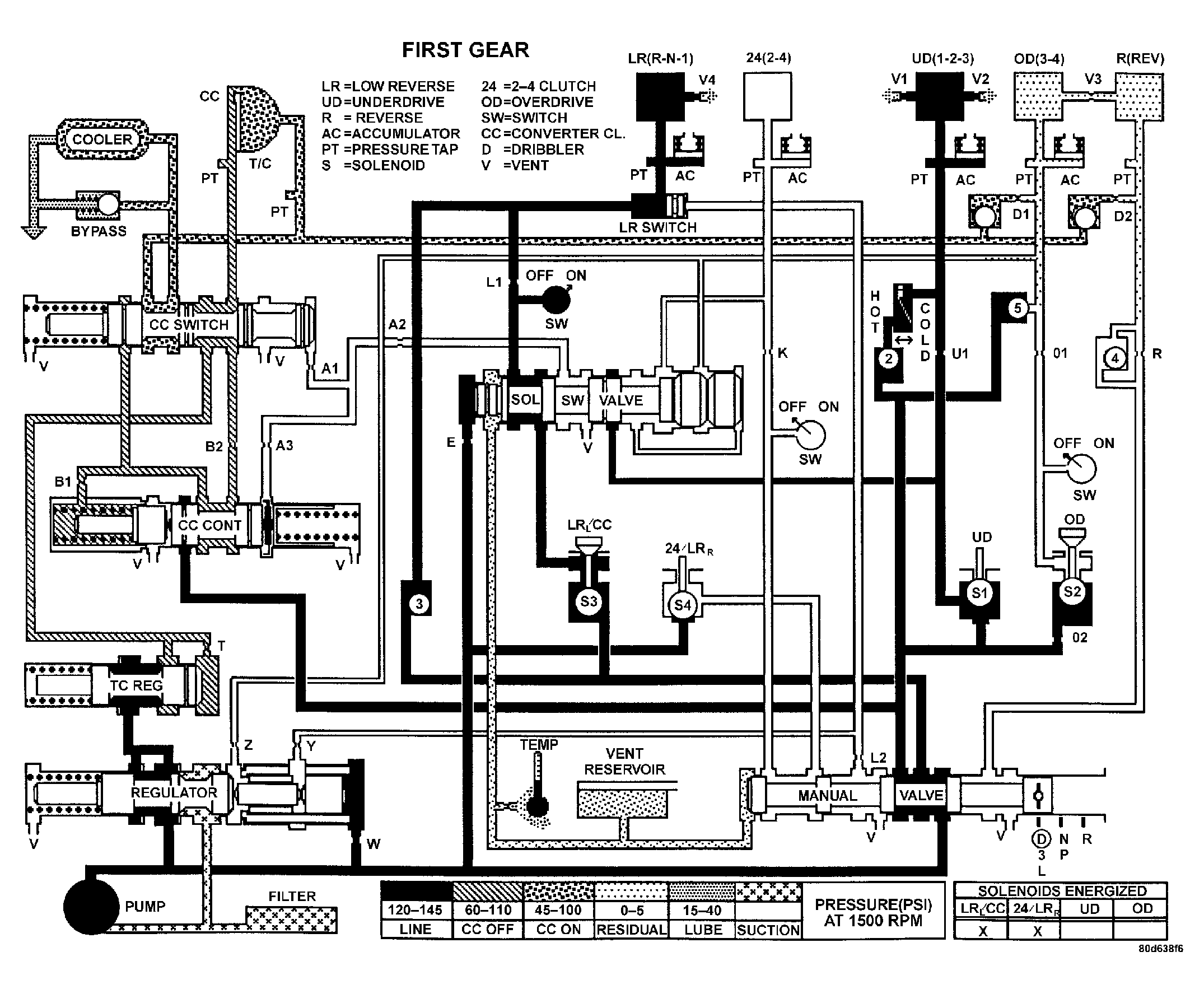

Fig 5: First Gear

Courtesy of DAIMLERCHRYSLER CORP.

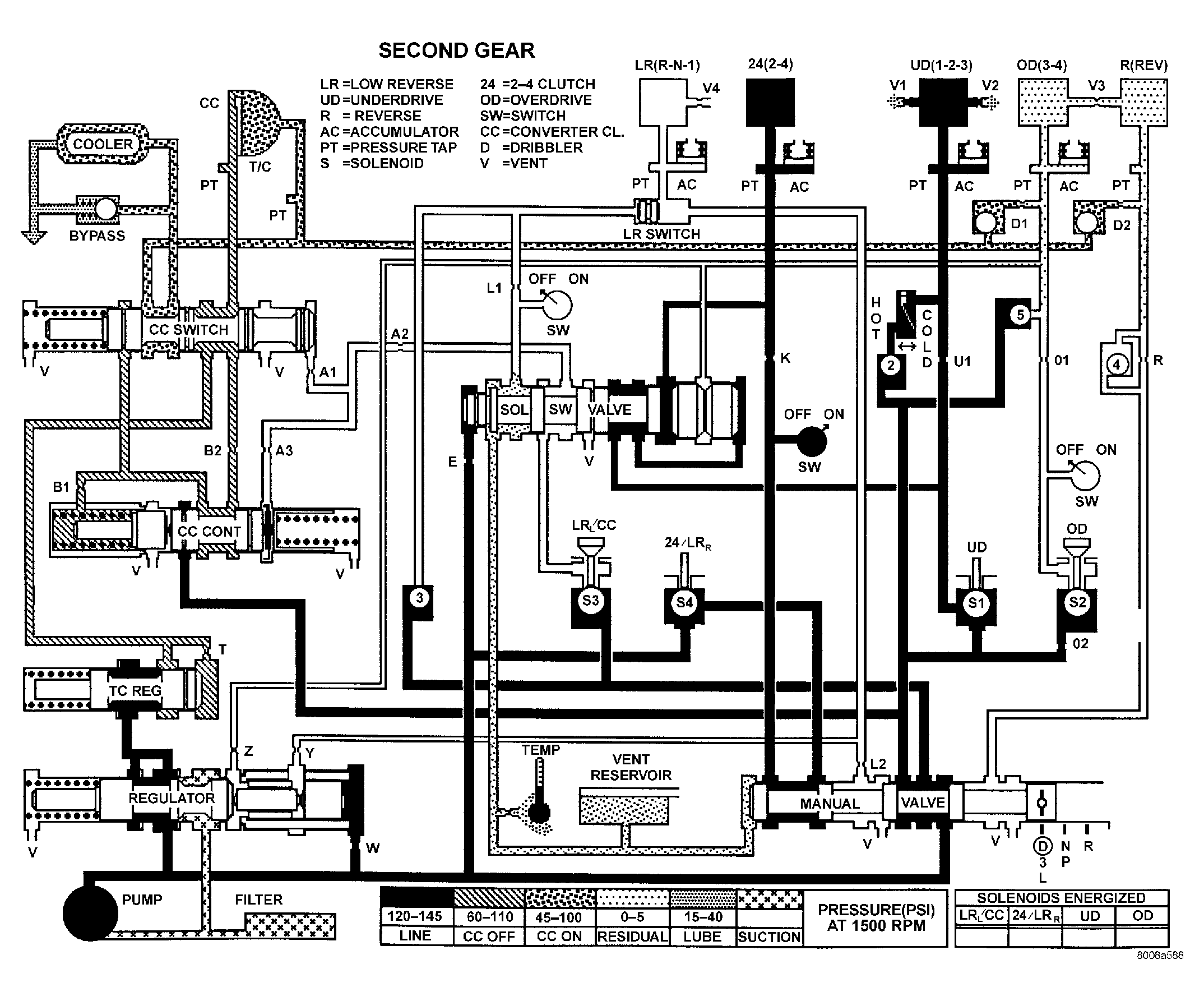

Fig 6: Second Gear

Courtesy of DAIMLERCHRYSLER CORP.

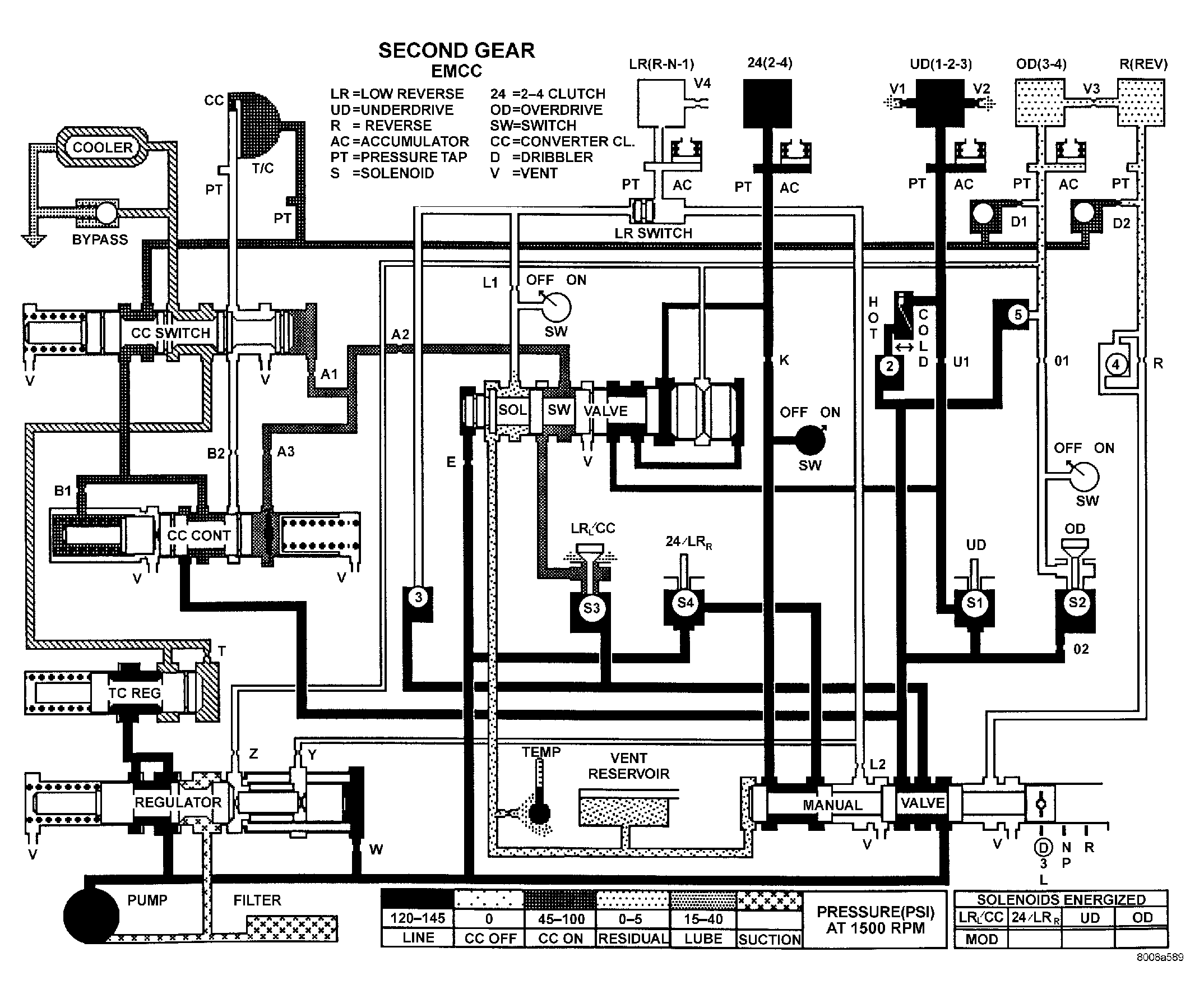

Fig 7: Second Gear (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

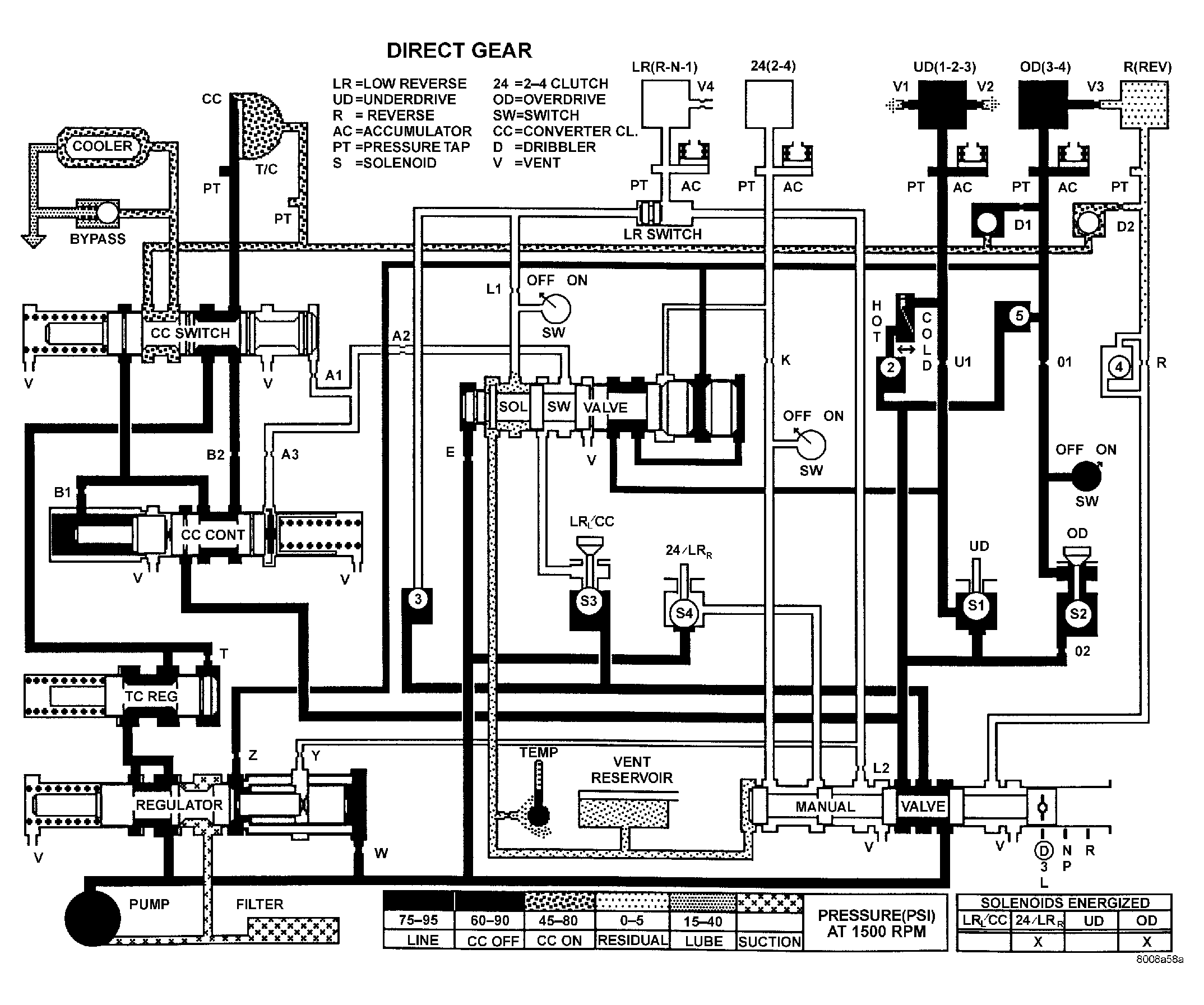

Fig 8: Direct Gear

Courtesy of DAIMLERCHRYSLER CORP.

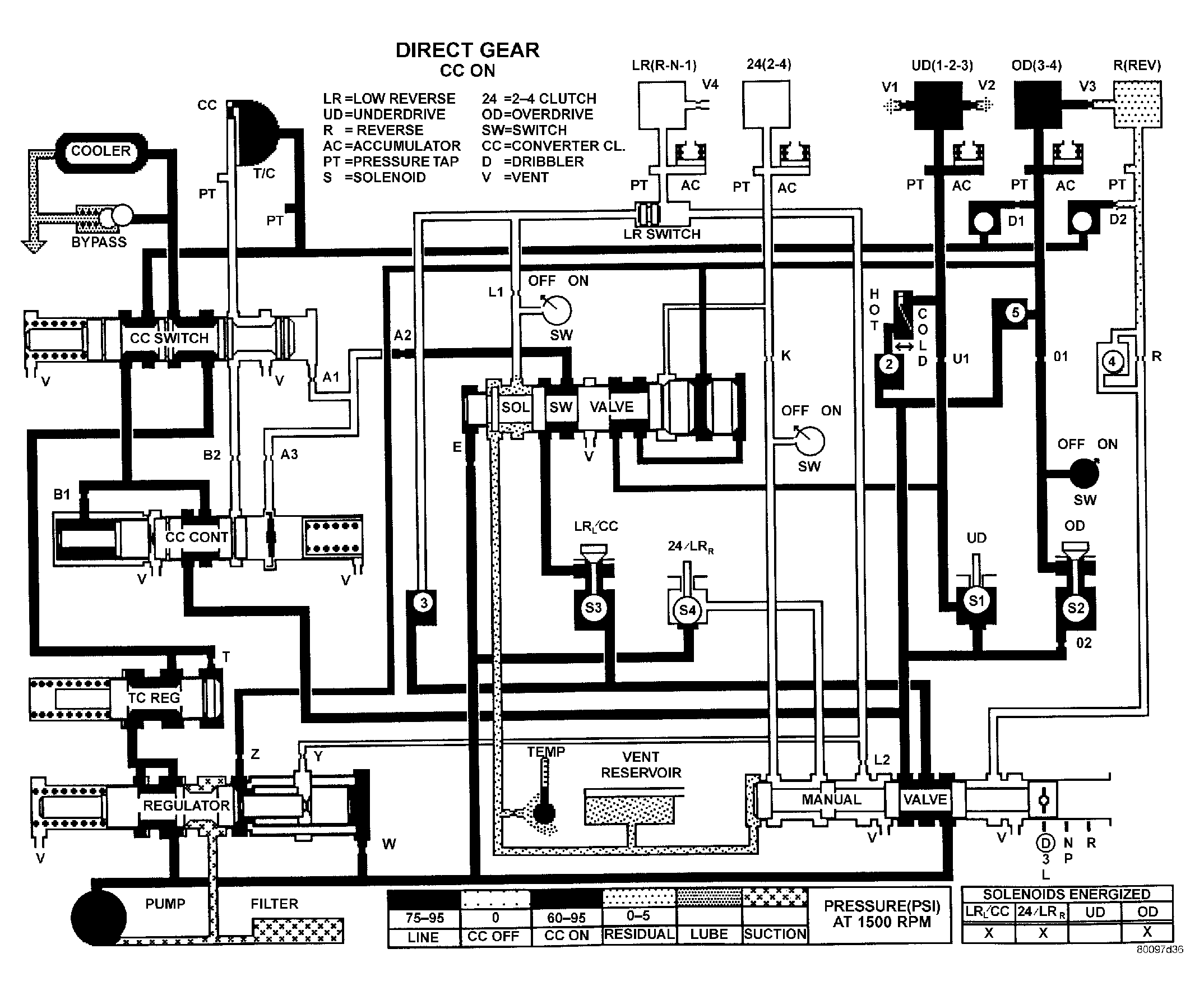

Fig 9: Direct Gear (CC on)

Courtesy of DAIMLERCHRYSLER CORP.

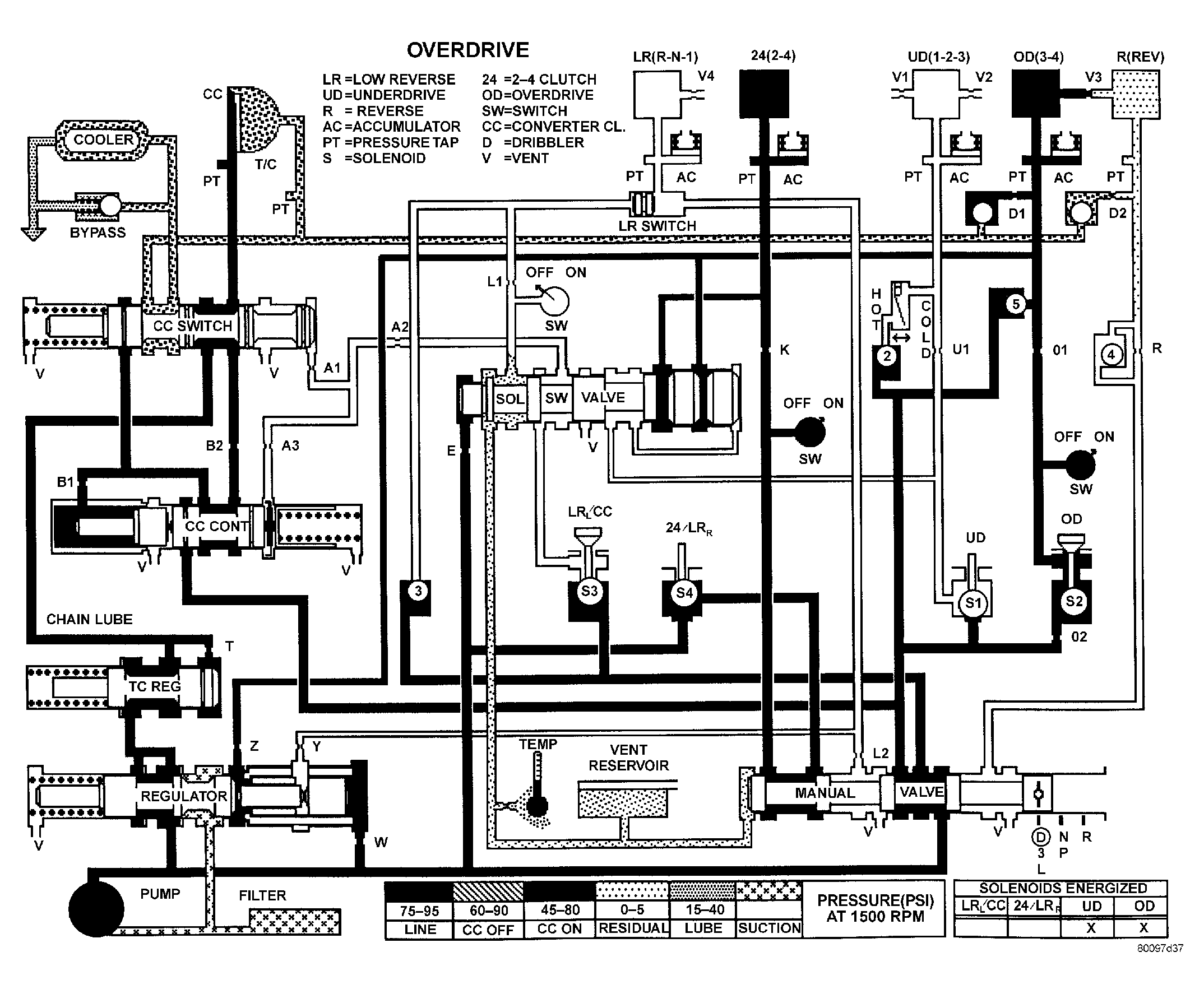

Fig 10: Overdrive

Courtesy of DAIMLERCHRYSLER CORP.

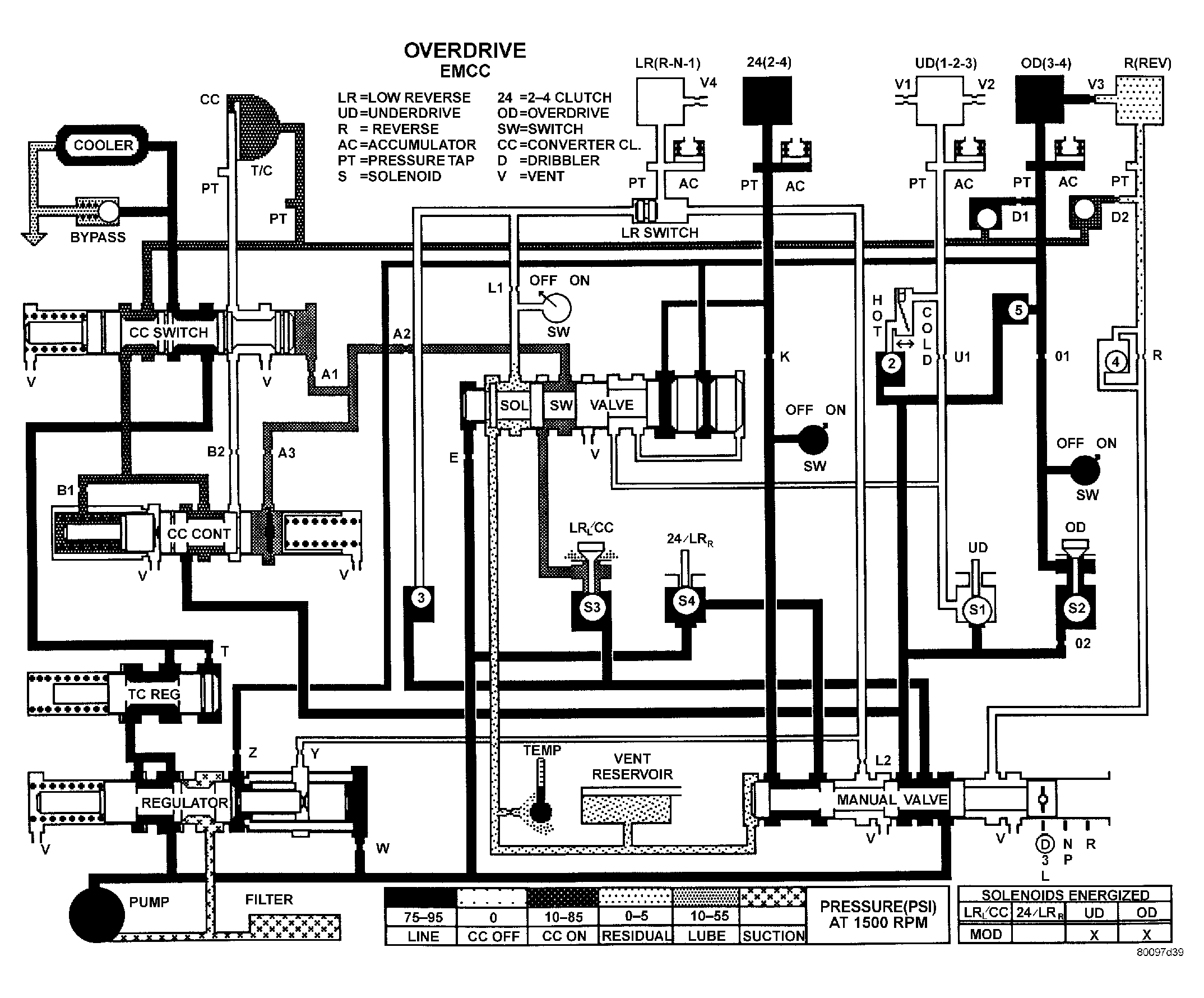

Fig 11: Overdrive (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

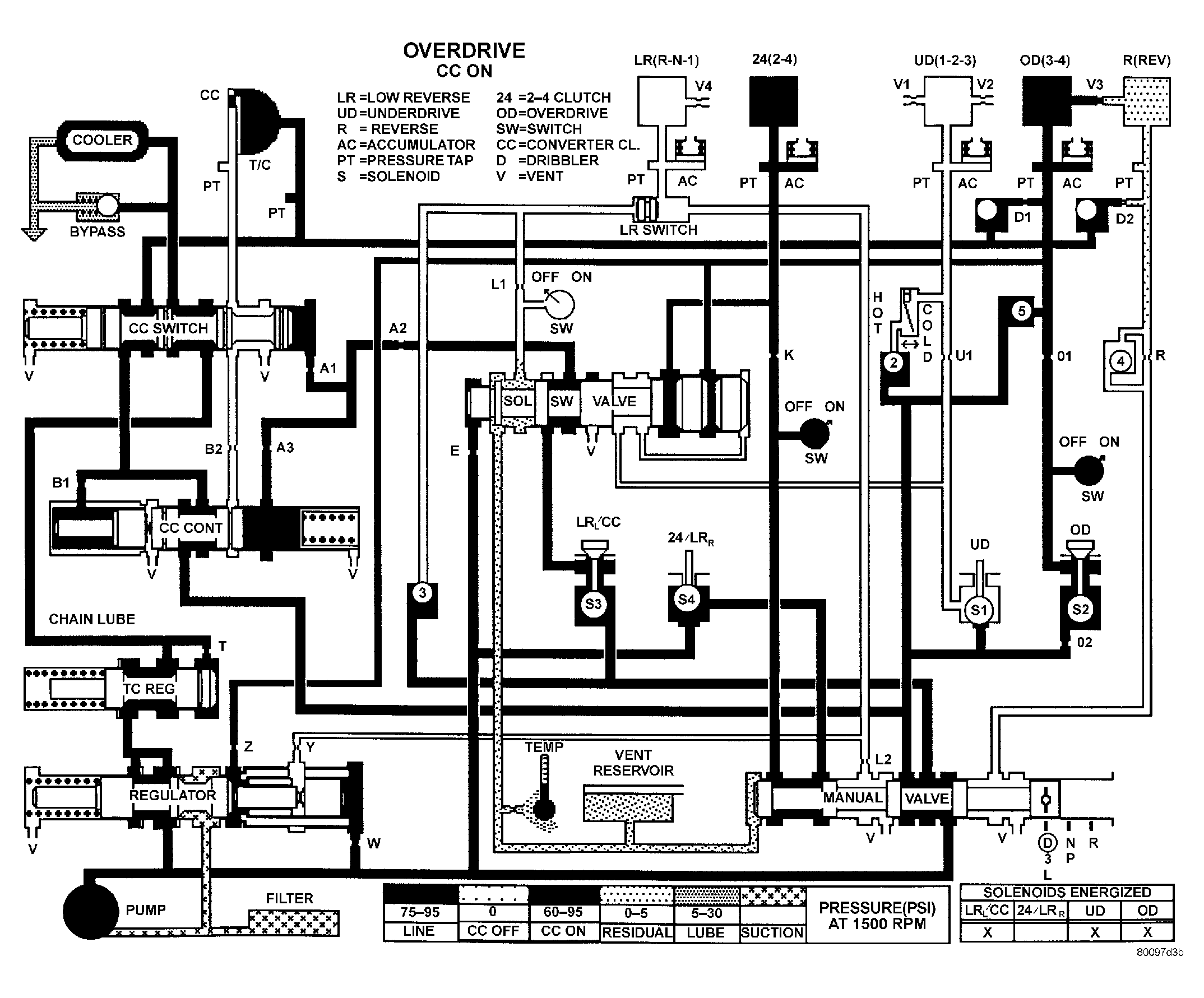

Fig 12: Overdrive (CC on)

Courtesy of DAIMLERCHRYSLER CORP.
