Washer Reservoir: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the washer hose to the reservoir.
  2. Install the washer fluid reservoir.

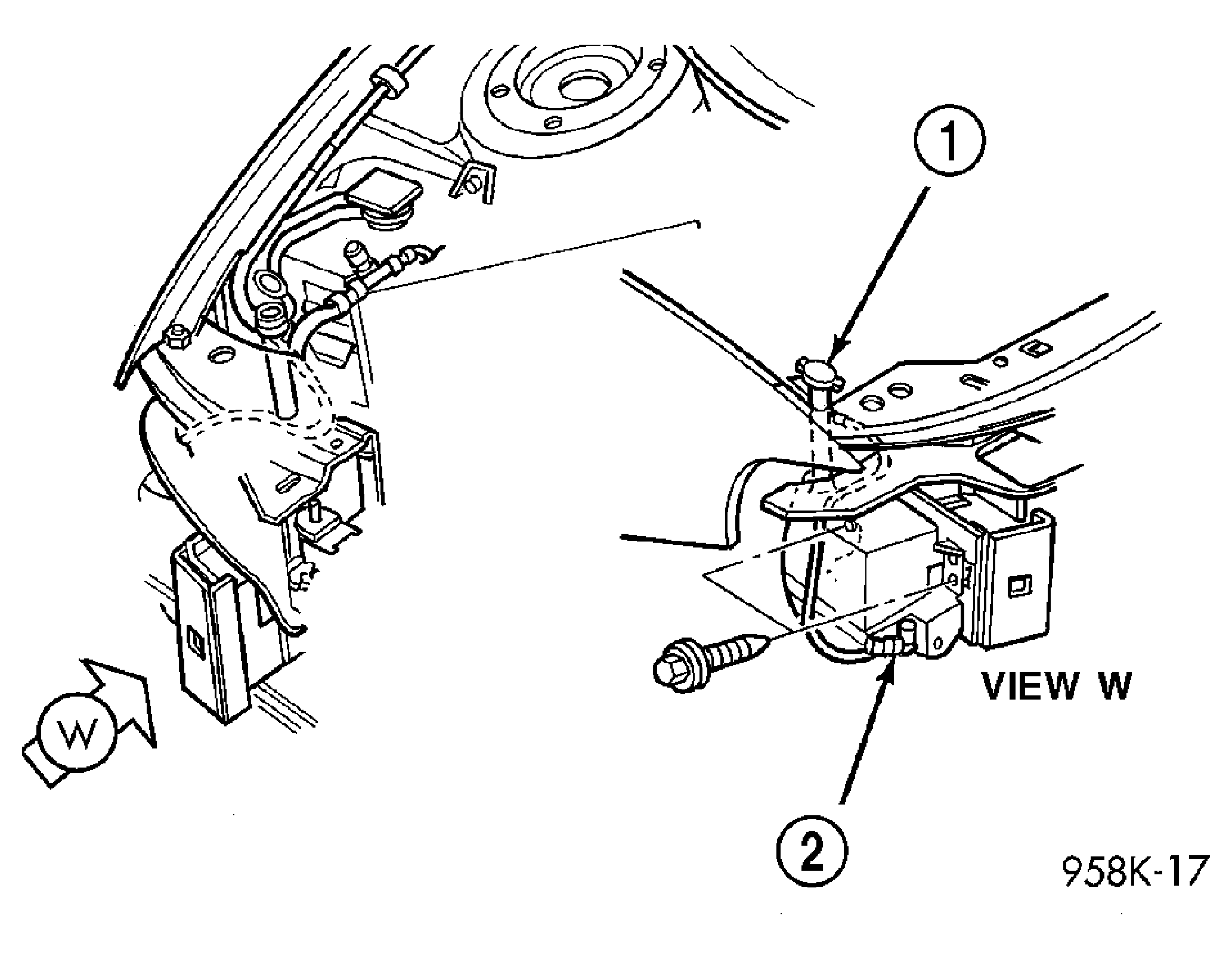

  3. Connect wire connector to washer pump and harness mounting tab. See Figure.
  4. If fascia was partially removed, reinstall bumper fascia as needed. Refer to INSTALLATION .
  5. Connect washer fluid hose to washer pump on reservoir.
  6. Fill washer fluid.
  7. Connect the battery negative remote cable.
