Transponder Key: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

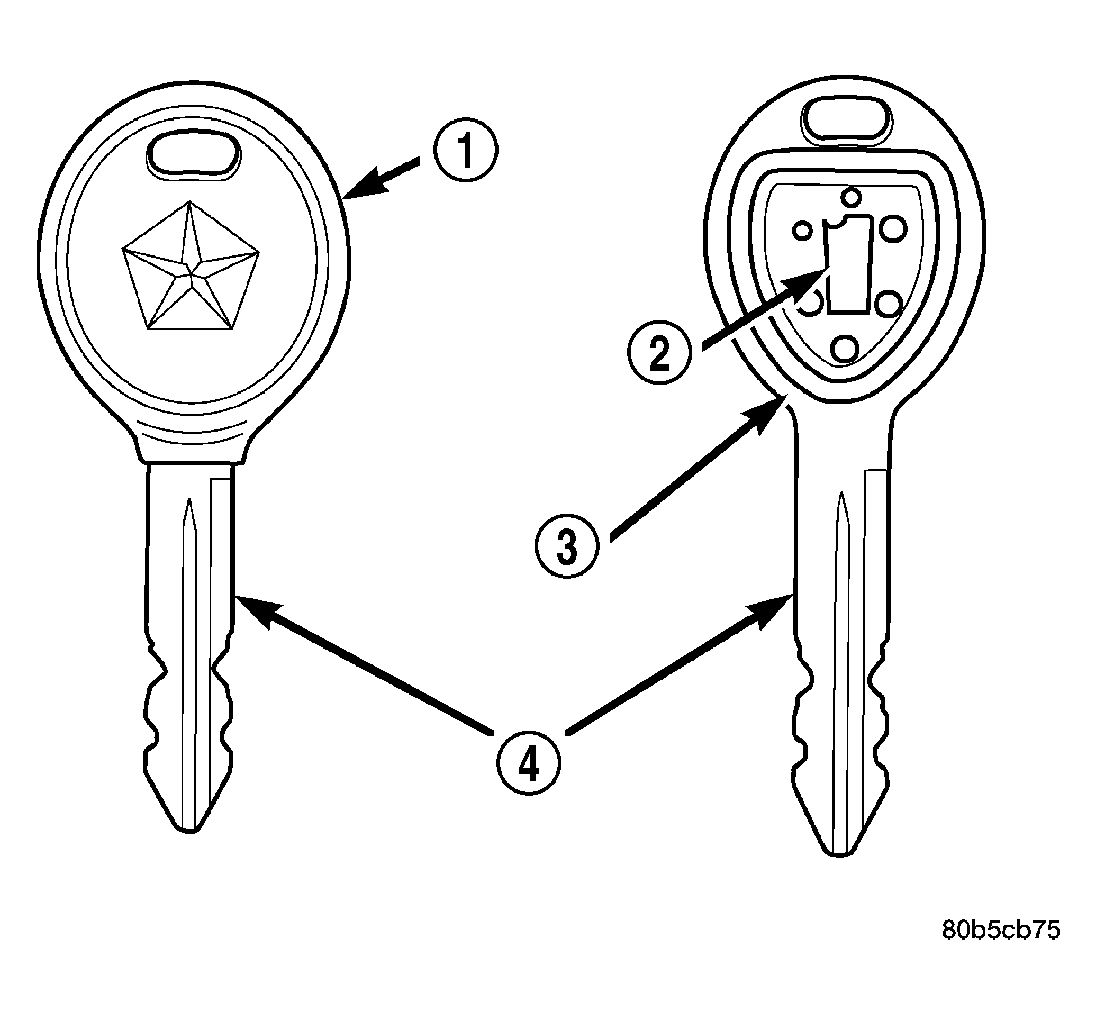

| 1 - MOLDED CAP |
| 2 - TRANSPONDER |
| 3 - MOLDED CAP REMOVED |
| 4 - SENTRY KEY |
The Sentry Key Immobilizer System (SKIS) uses a transponder chip that is integral to each ignition key to communicate with the Sentry Key Immobilizer Module (SKIM). Ignition keys are supplied with the vehicle when it is shipped from the factory. The transponder chip is undermolded within the head of the key. This undermold is hidden beneath an overmolded rubber cap. See Fig 1.
