Installation - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

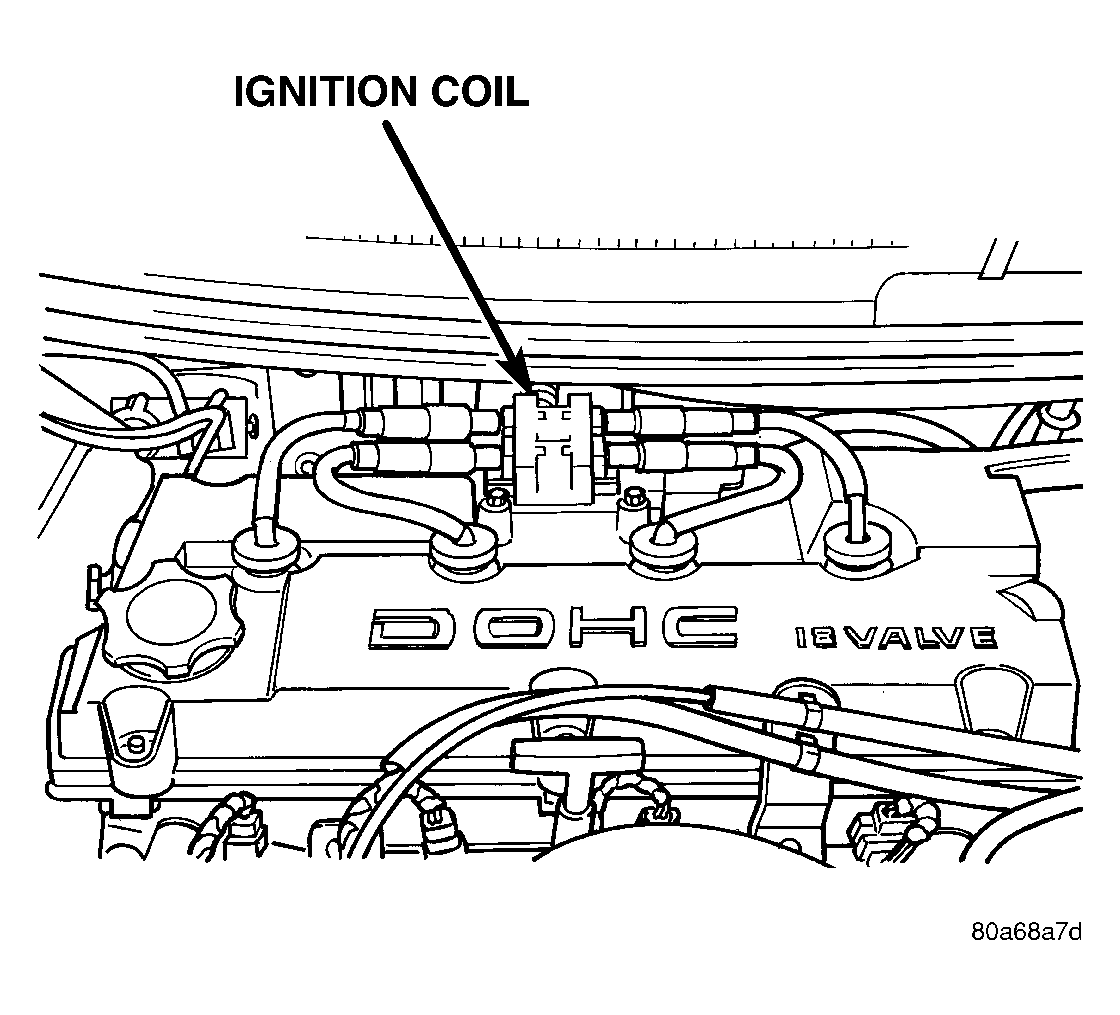

The electronic ignition coil pack attaches directly to the valve cover. See Figure.

  1. Install coil pack on valve cover.
  2. Install bolts and tighten bolts to N.m 11.8 (105 in. lbs.).

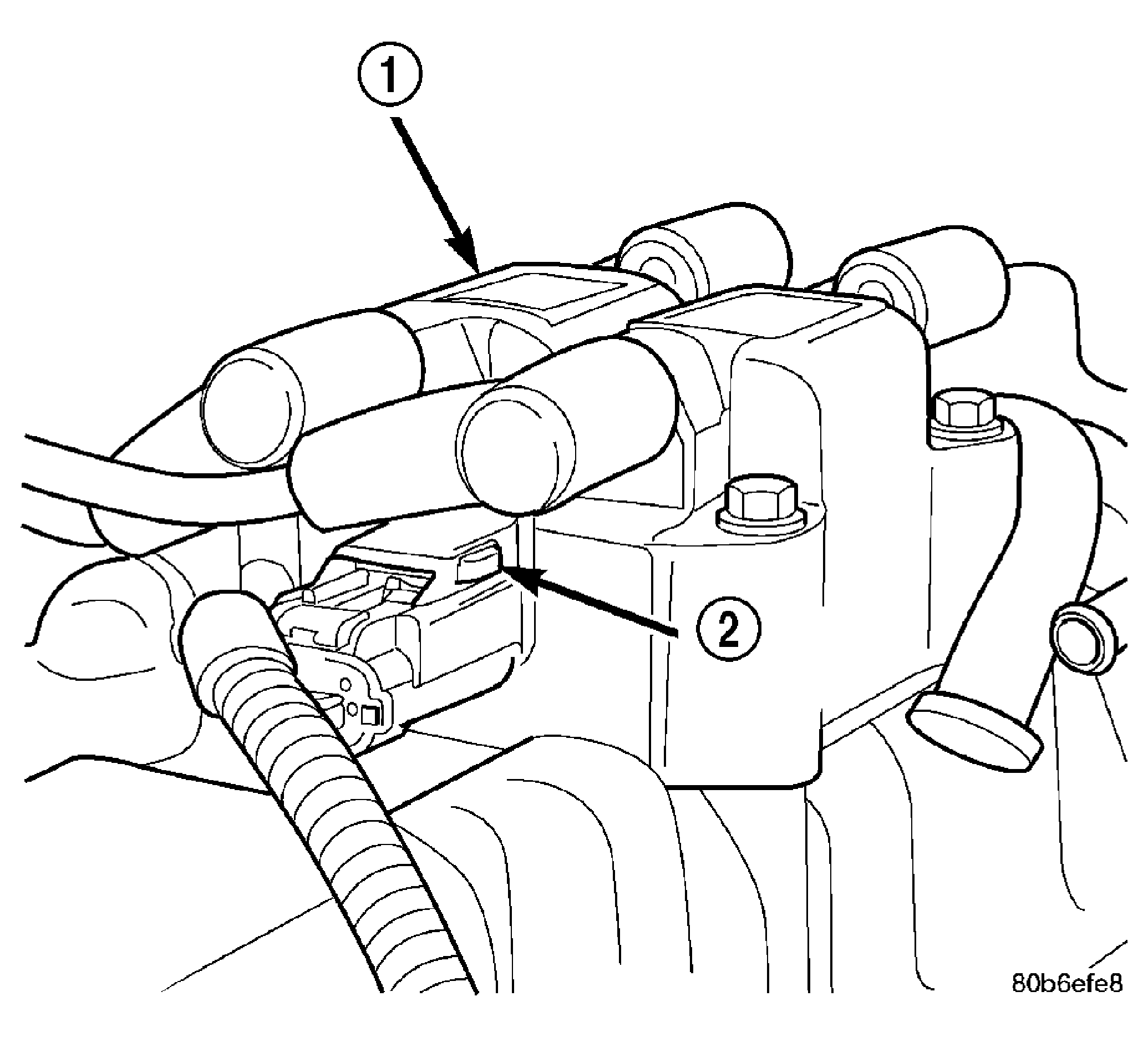

  3. Connect the electrical connector. See Figure.
  4. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
