Removal - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The camshaft position sensor is mounted to the rear of the cylinder head.

Remove the negative battery cable.
Disconnect the PCV hose and reposition.

Disconnect electrical connectors from the camshaft position sensor. See Fig 1.

Fig 1: Cam Sensor/EGR Valve/PCV Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - Camshaft Position Sensor

2 - PCV Valve

3 - EGR Valve and Transducer (if equipped)

Remove camshaft position sensor mounting screws. Remove sensor.
Loosen screw attaching target magnet to rear of camshaft and remove magnet. See Fig 2.

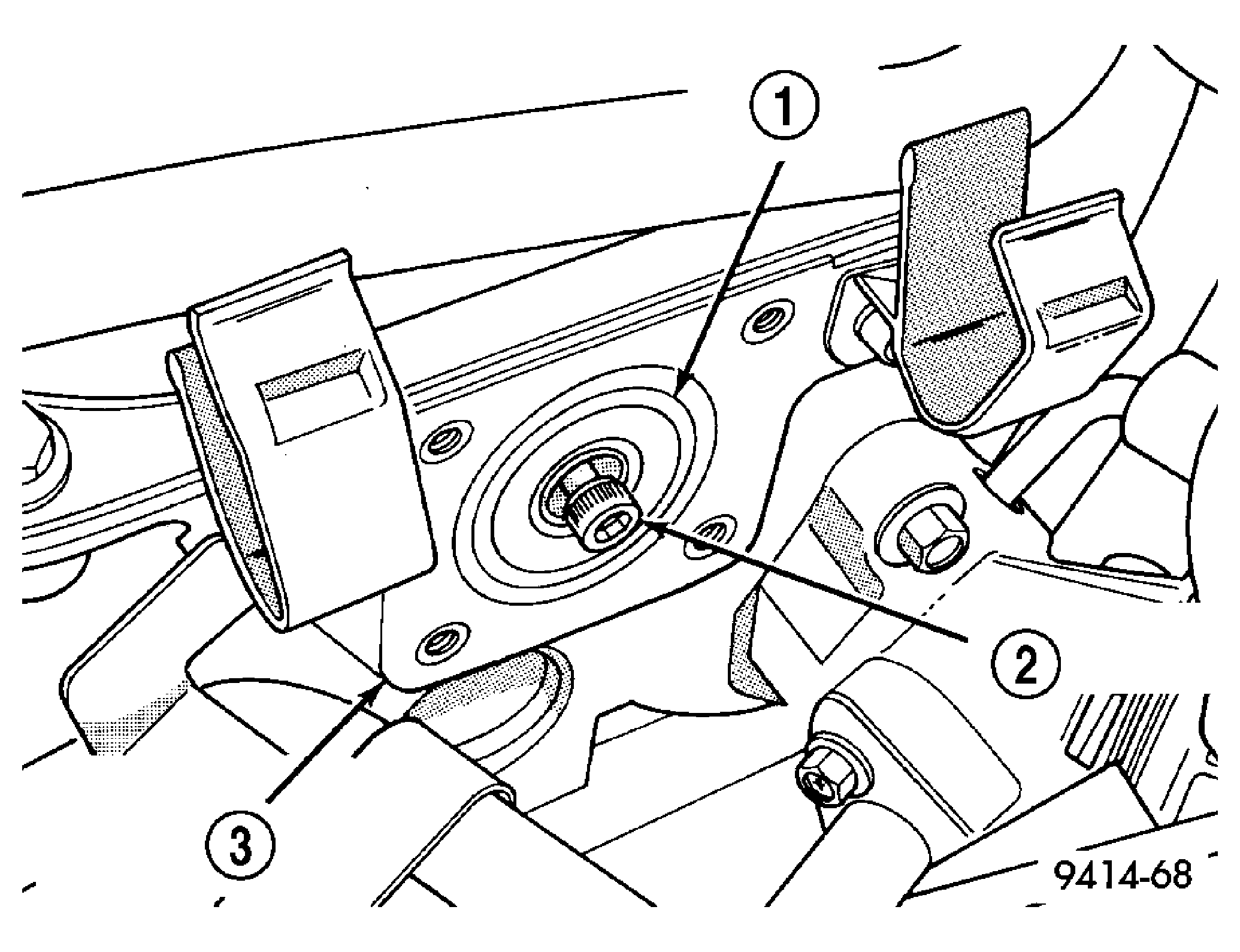

Fig 2: Target Magnet Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - TARGET MAGNET

2 - MOUNTING BOLT

3 - REAR OF CYLINDER HEAD
