Removal - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release hood latch and open hood. See Fig 1.
    Fig 1: Starter - 4 Cylinder
    GC0031217Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect and isolate the battery negative cable.
  3. Remove the air cleaner box.
  4. Remove the lower bolt.
  5. Remove the upper bolt and ground wire
  6. Remove starter. See Fig 2.

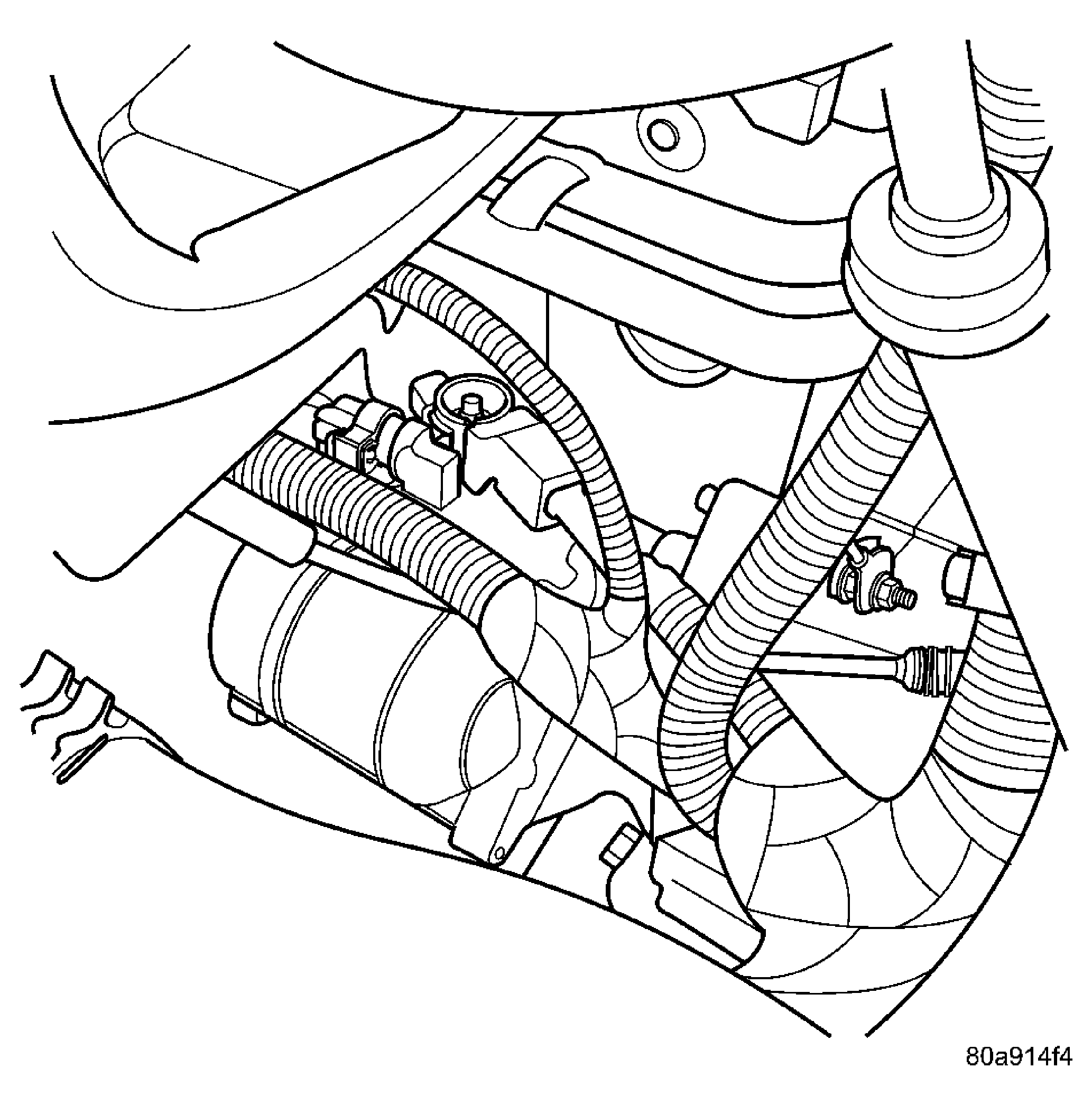

    Fig 2: Starter Removal - 4 Cylinder
    GC0031216Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect solenoid wire connector from terminal
  8. Remove nut holding B+ wire to terminal.
  9. Disconnect solenoid and B+ wires from starter terminals.
