Removal - 2.7L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Open Hood.
Disconnect the negative battery cable.
Raise vehicle and support.
Disconnect the electrical connector from the O2 sensor.
Remove the O2 sensor from the exhaust manifold. See Fig 1.

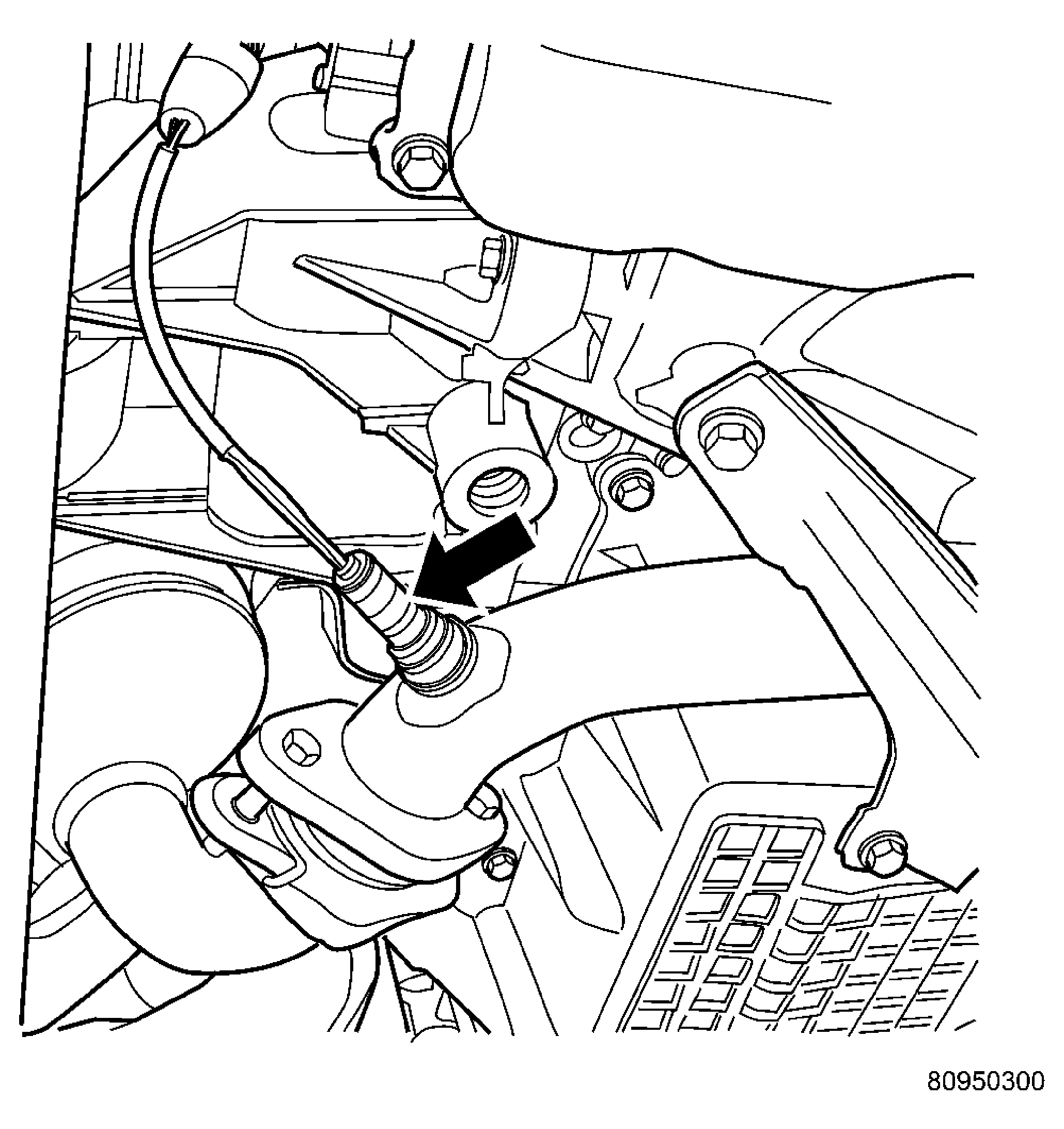

Fig 1: O2 Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove the front mount through bolt.
Remove the front mount bracket from engine block.
Remove the battery cable from starter. See Fig 2.

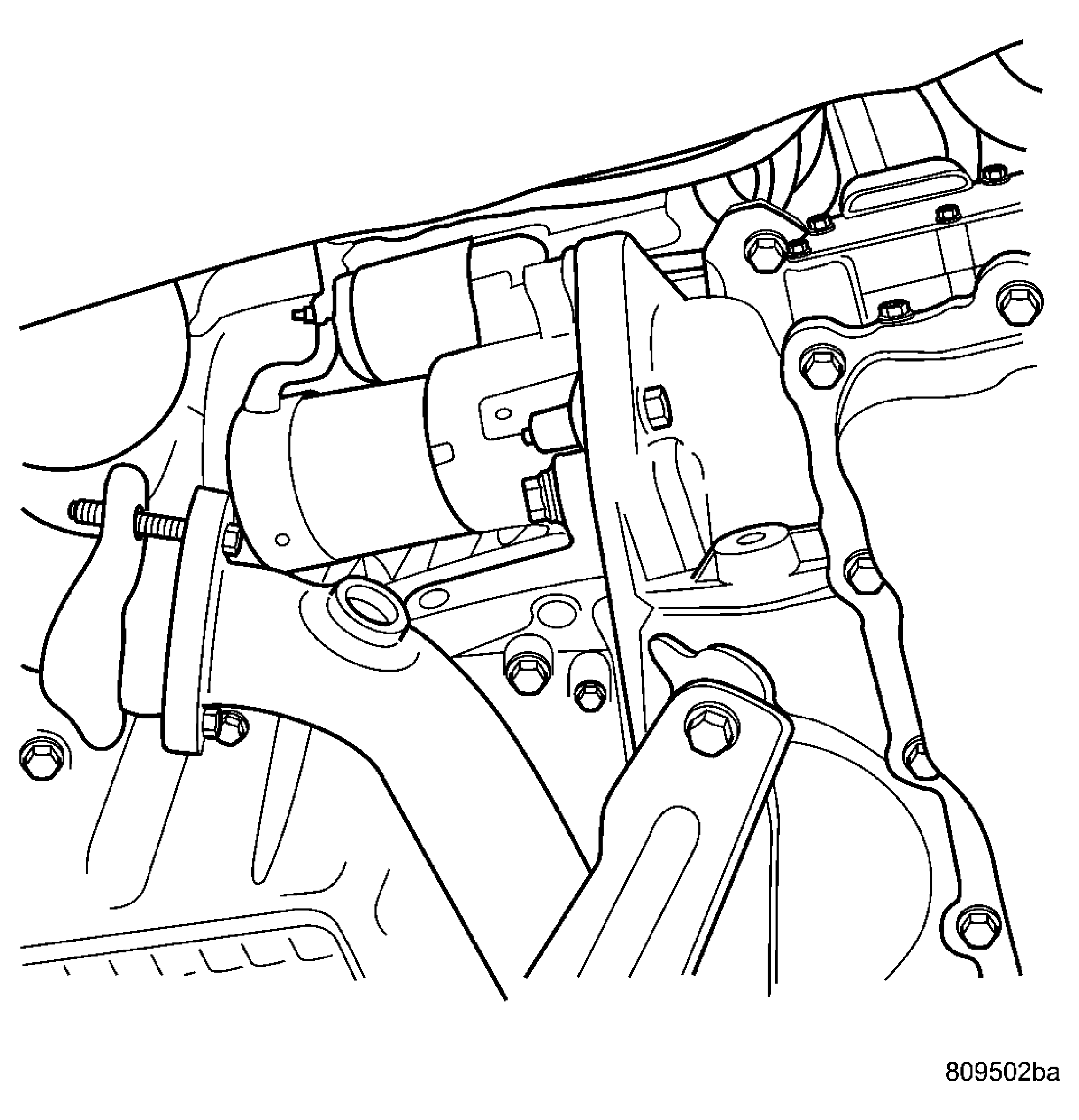

Fig 2: Starter Motor
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower starter bolt and remove starter. See Fig 3.

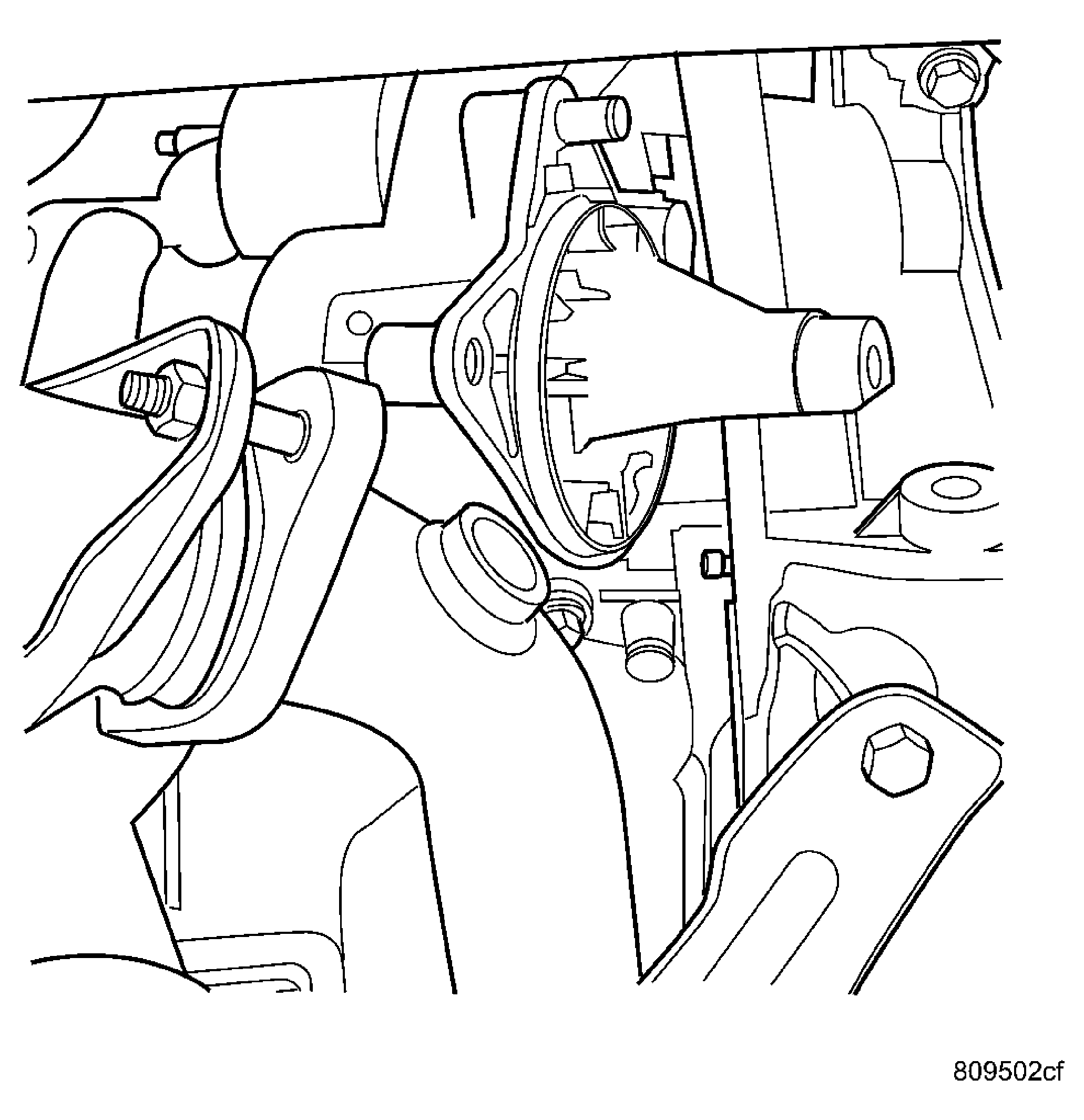

Fig 3: Starter Motor Removal

Courtesy of DAIMLERCHRYSLER CORP.
