Headlamp Alignment
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

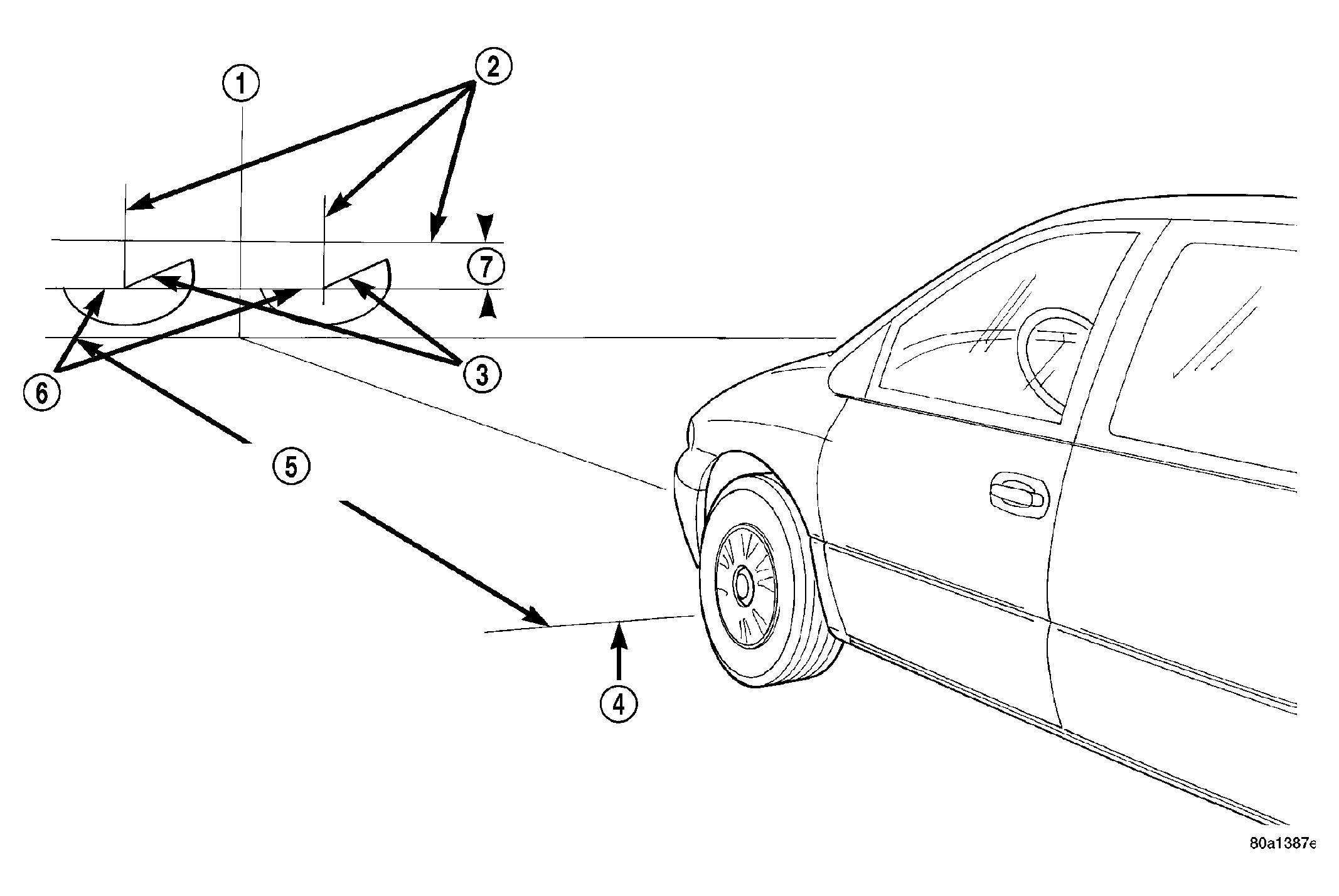

A properly aimed low beam headlamp will project a high intensity light pattern on the screen with the horizontal cut-off line aligned with the tape line 130 mm (5.12 in.) below the headlamp centerline. See Figure. The intersection of the horizontal and 15 degree cut-off lines in the projected pattern should align to the intersection of the headlamp centerline vertical tape line and the tape line 130 mm (5.12 in.) below the headlamp horizontal centerline. The high beam pattern should be correct when the low beams are aligned properly.

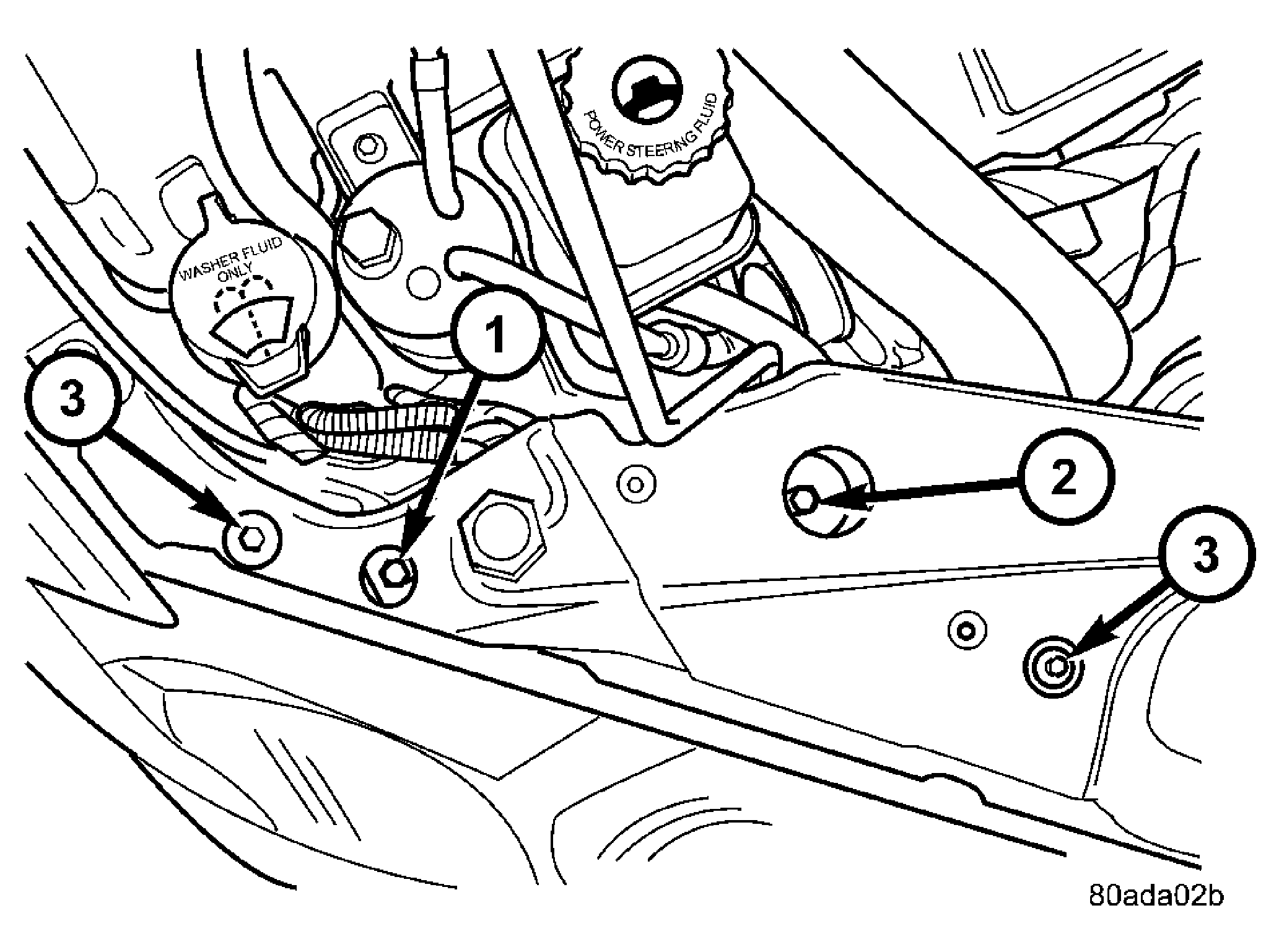

To adjust headlamp alignment, rotate alignment screws to achieve the specified low beam hot spot pattern. See Fig 1.
| 1 - HEADLAMP ADJUSTER - VERTICAL |
| 2 - HEADLAMP ADJUSTER - HORIZONTAL |
| 3 - HEADLAMP RETAINING BOLTS |
