Side Rail Weatherstrip: Removal: Rear

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise convertible top.
  2. Remove push in fasteners attaching weatherstrip to retainer.
  3. Separate weatherstrip from vehicle. See Fig 1.

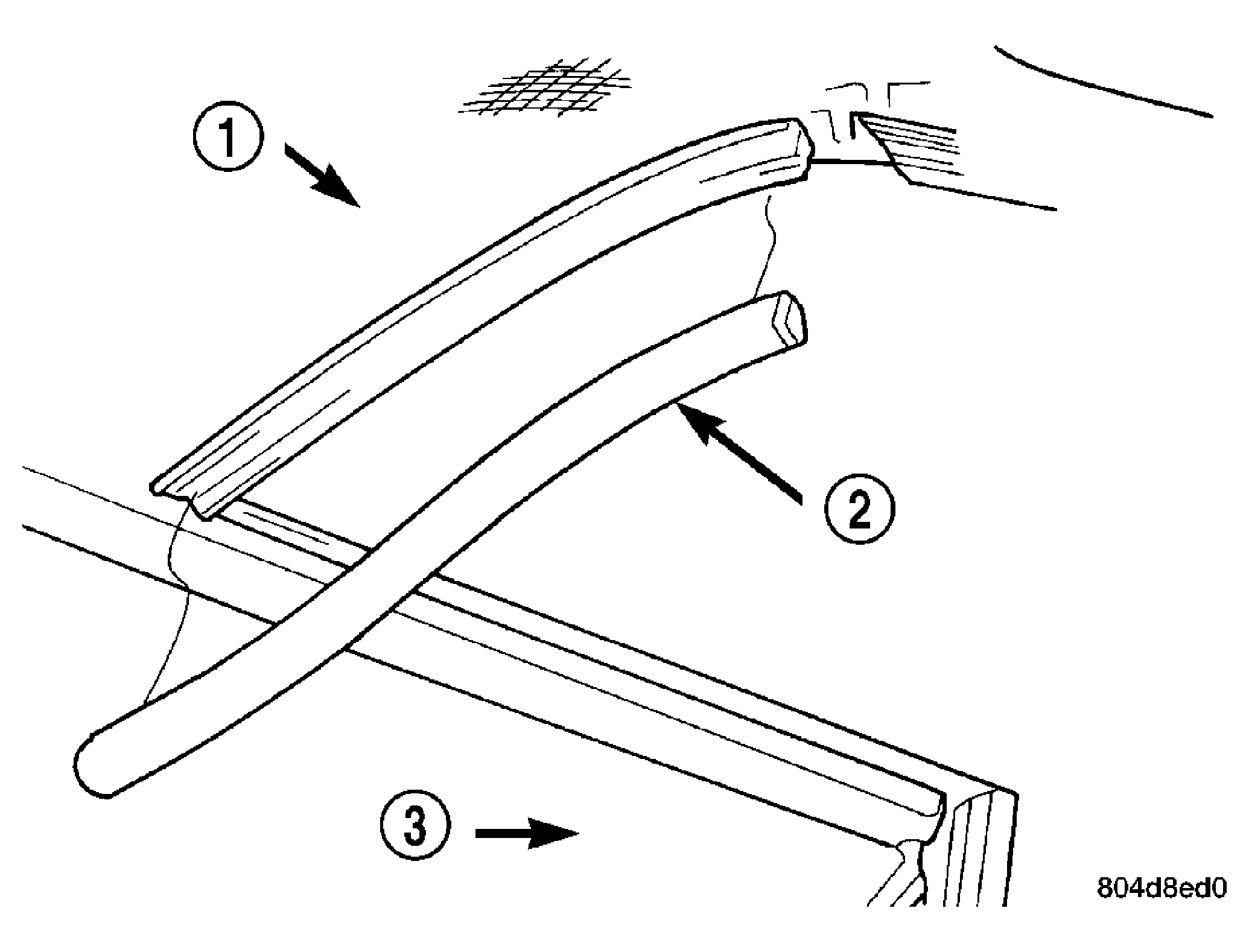

Fig 1: Rear Side Rail
GC0031568Courtesy of DAIMLERCHRYSLER CORP.
1 - CONVERTIBLE TOP
2 - REAR SIDE RAIL WEATHERSTRIP
3 - QUARTER PANEL
