Side Rail Weatherstrip: Removal: Center

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise convertible top.
  2. Remove push in fasteners attaching weatherstrip to retainer.
  3. Remove weatherstrip from vehicle. See Fig 1.

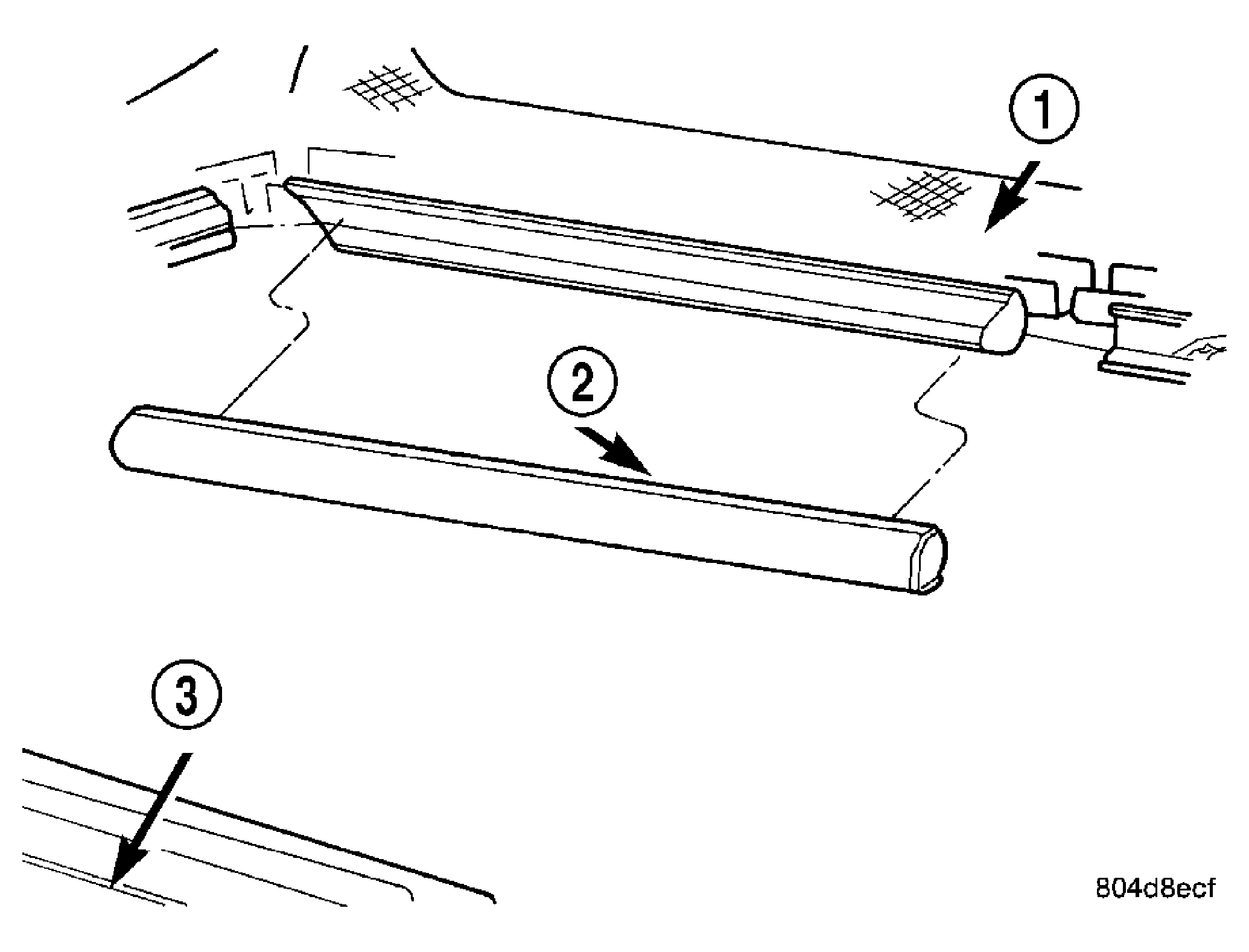

Fig 1: Center Side Rail Weatherstrip
GC0031567Courtesy of DAIMLERCHRYSLER CORP.
1 - CONVERTIBLE TOP
2 - CENTER SIDE RAIL WEATHERSTRIP
3 - QUARTER PANEL
