Secondary Sill Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Open door.
Using fork tool C-4829, disengage push in fasteners attaching secondary sill weatherstrip to bottom of door.
Remove secondary sill weatherstrip from vehicle. See Fig 1.

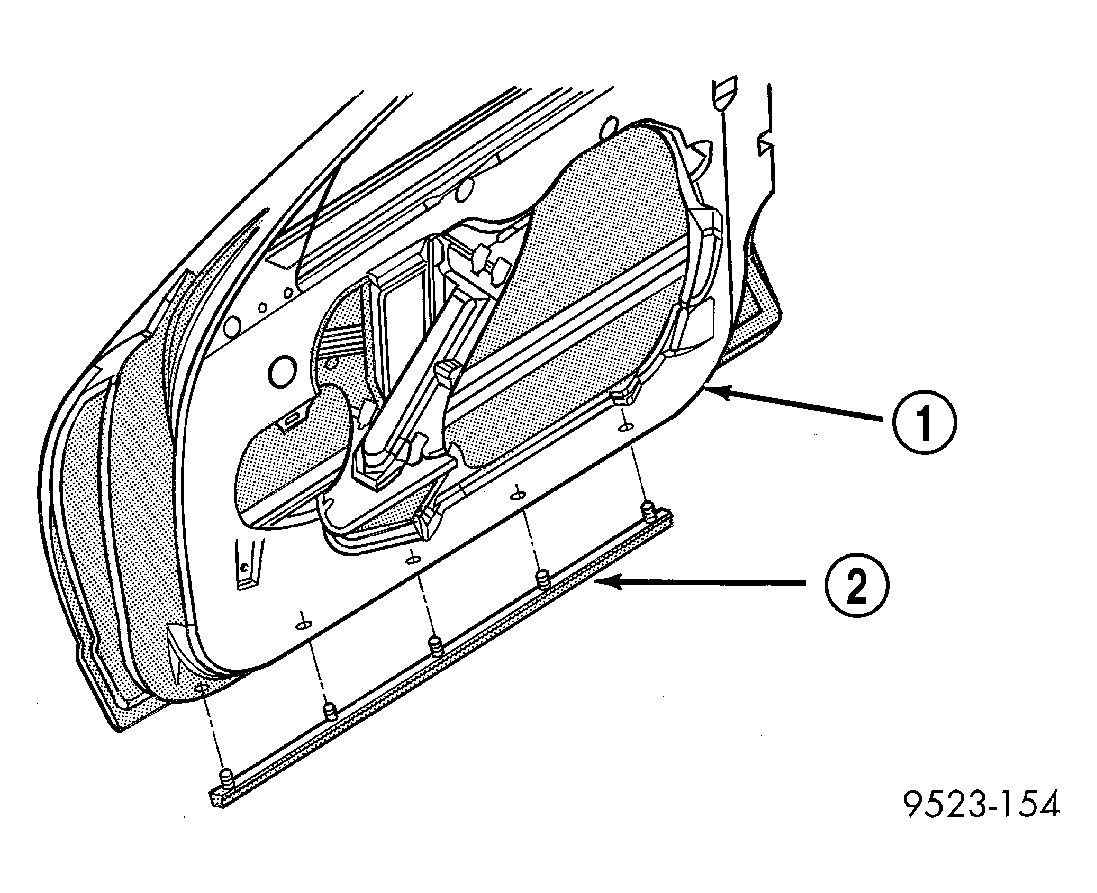

Fig 1: Secondary Sill Weatherstrip - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR

2 - SECONDARY SILL WEATHERSTRIP
