Rear Door B-Pillar Door Seal: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable heat gun, warm seal to approximately 100° F to ease adhesive separation.
  2. Peel B-pillar seal from upper door frame, top to bottom. See Fig 1.
  3. Clean adhesive residue from door frame.

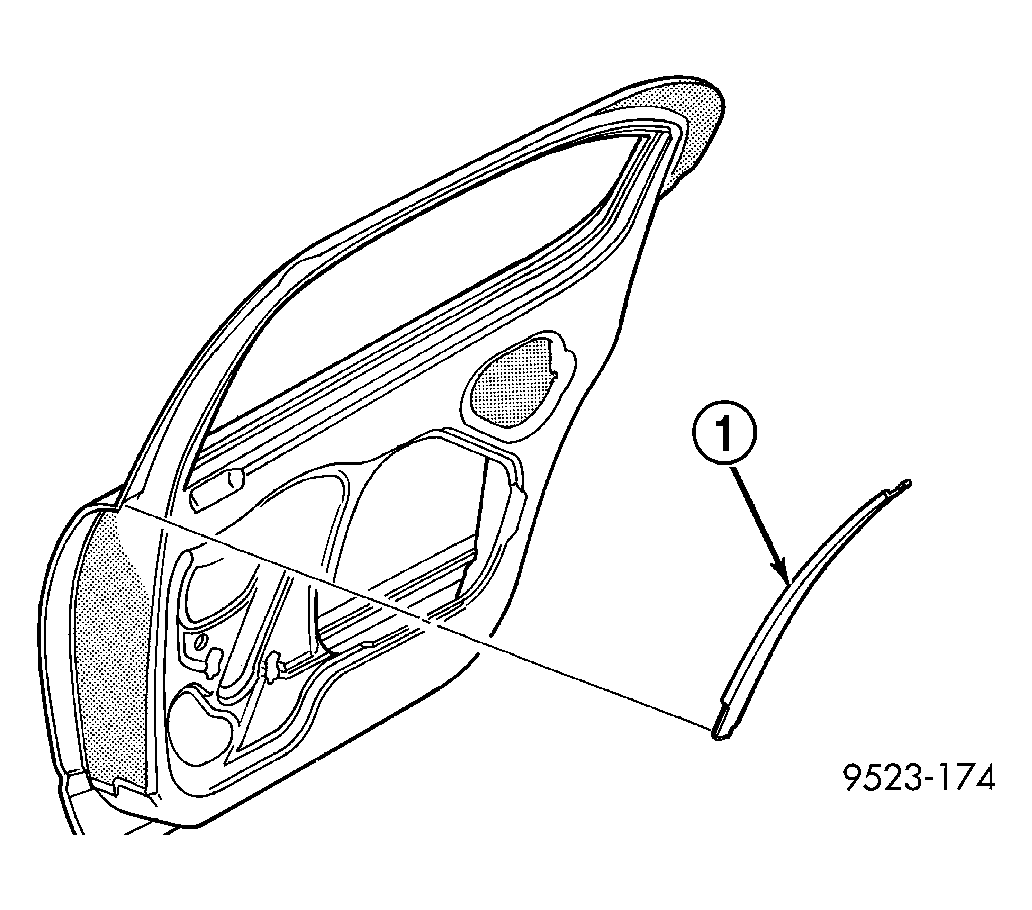

Fig 1: Rear Door B-Pillar Seal
GC0031561Courtesy of DAIMLERCHRYSLER CORP.
1 - B-PILLAR SEAL
