Quarter Panel Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door sill trim panel.
  2. Remove push in fasteners holding weatherstrip to B-pillar.
  3. Remove weatherstrip from door opening flange.
  4. Remove quarter panel weatherstrip from vehicle. See Fig 1.

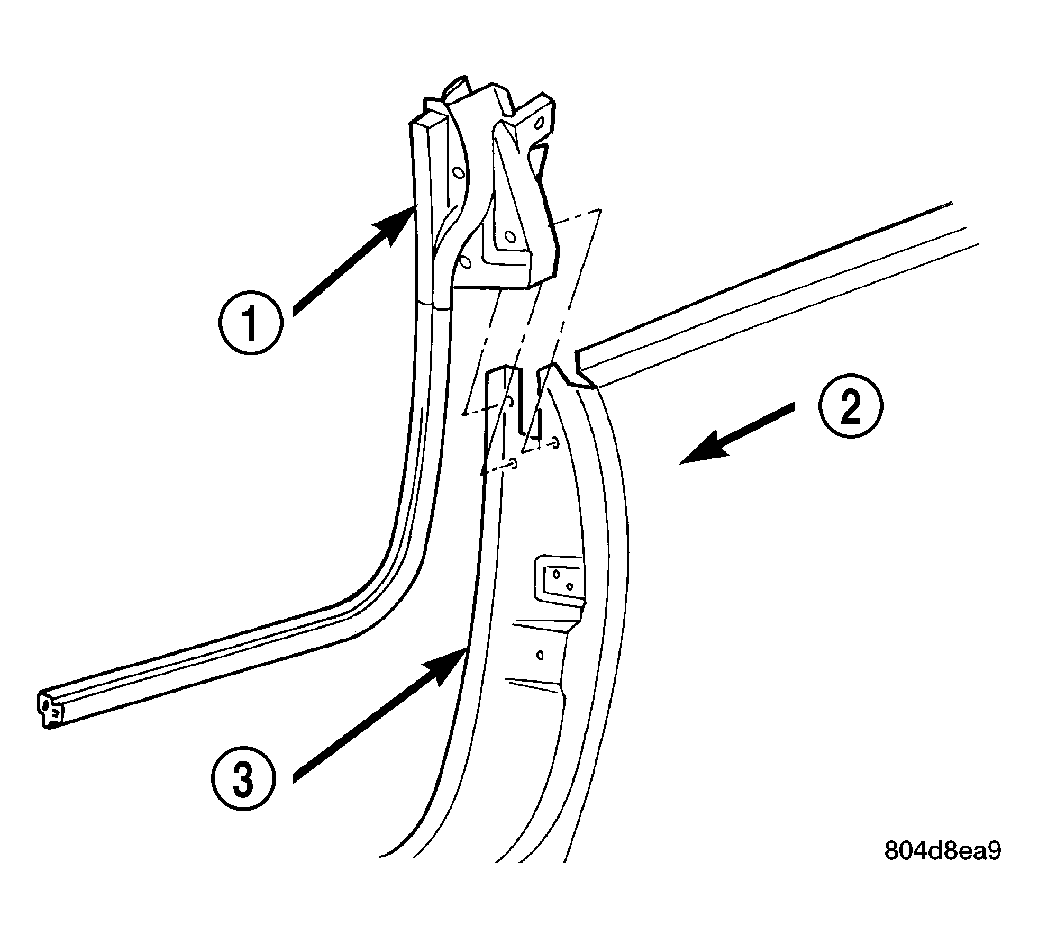

Fig 1: Quarter Panel Weatherstrip
GC0031560Courtesy of DAIMLERCHRYSLER CORP.
1 - QUARTER PANEL WEATHERSTRIP
2 - QUARTER PANEL
3 - DOOR OPENING FLANGE
