Header / A-Pillar Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise convertible top.
  2. Remove inside rear view mirror.
  3. Remove sun visors.
  4. Remove header trim panel.
  5. Remove both door sill trim panels.
  6. Remove nuts holding header and A-pillar weatherstrip at upper corners of windshield. See Fig 1.
  7. Remove push in fasteners at lower corners of windshield holding weatherstrip to A-pillar.
  8. Remove header and A-pillar weatherstrip from vehicle.
  9. Clean any residual seal material from header panel.

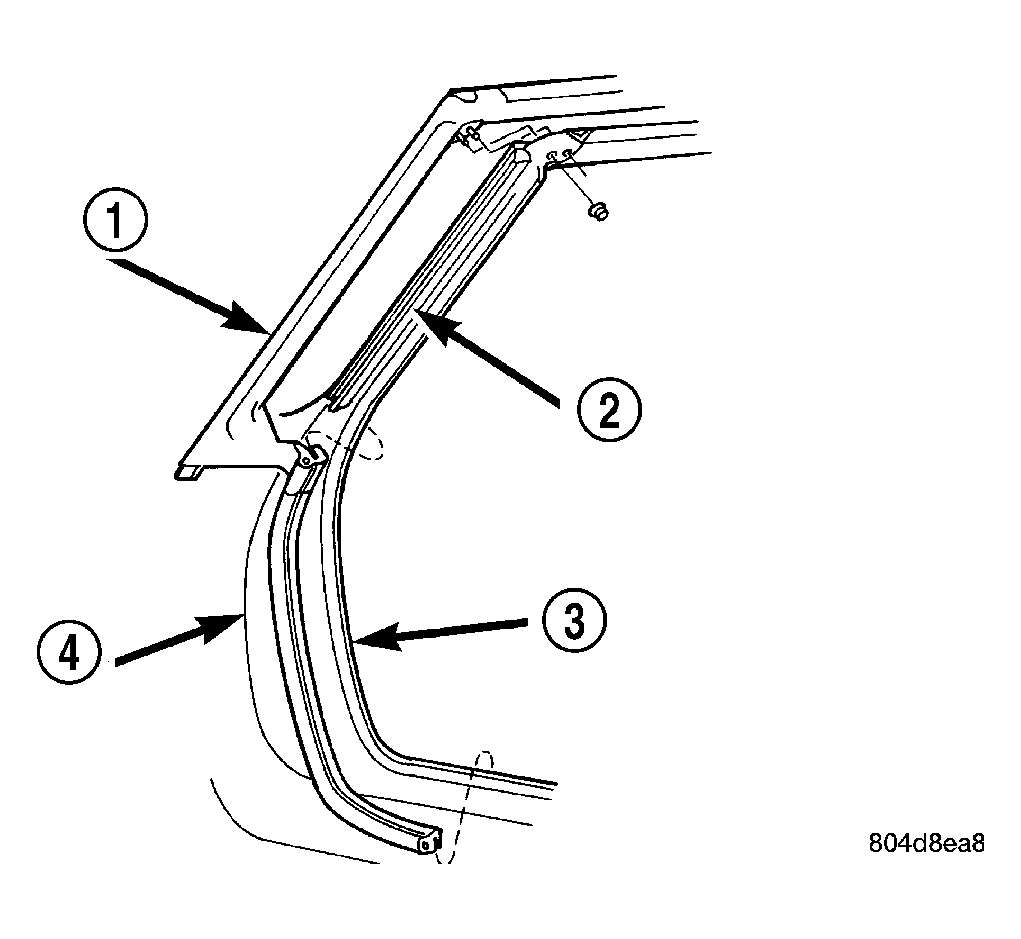

Fig 1: Header/A-Pillar Weatherstrip
GC0031555Courtesy of DAIMLERCHRYSLER CORP.
1 - HEADER/A-PILLAR WEATHERSTRIP
2 - A-PILLAR WEATHERSTRIP RETAINER
3 - DOOR OPENING FLANGE
4 - FENDER
