Header / A-Pillar Weatherstrip: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ensure that the butyl patch and butyl rope at each corner of the windshield is present and in good condition. See Fig 1. The butyl is critical for the water management system. Replace as necessary.

Install new L foam starting at upper screw on A-pillar retainer.
Install new L foam starting at upper screw on A-pillar retainer. See Fig 2.
Position header and A-pillar weatherstrip on vehicle.
Secure weatherstrip into retainers at header and A-pillar.
Install nuts at upper corners of windshield.
Install push in fasteners at lower corners of windshield.
Install door sill trim panels.
Install header trim panel.
Install sun visors.
Install inside rear view mirror.
Lower and secure convertible top.

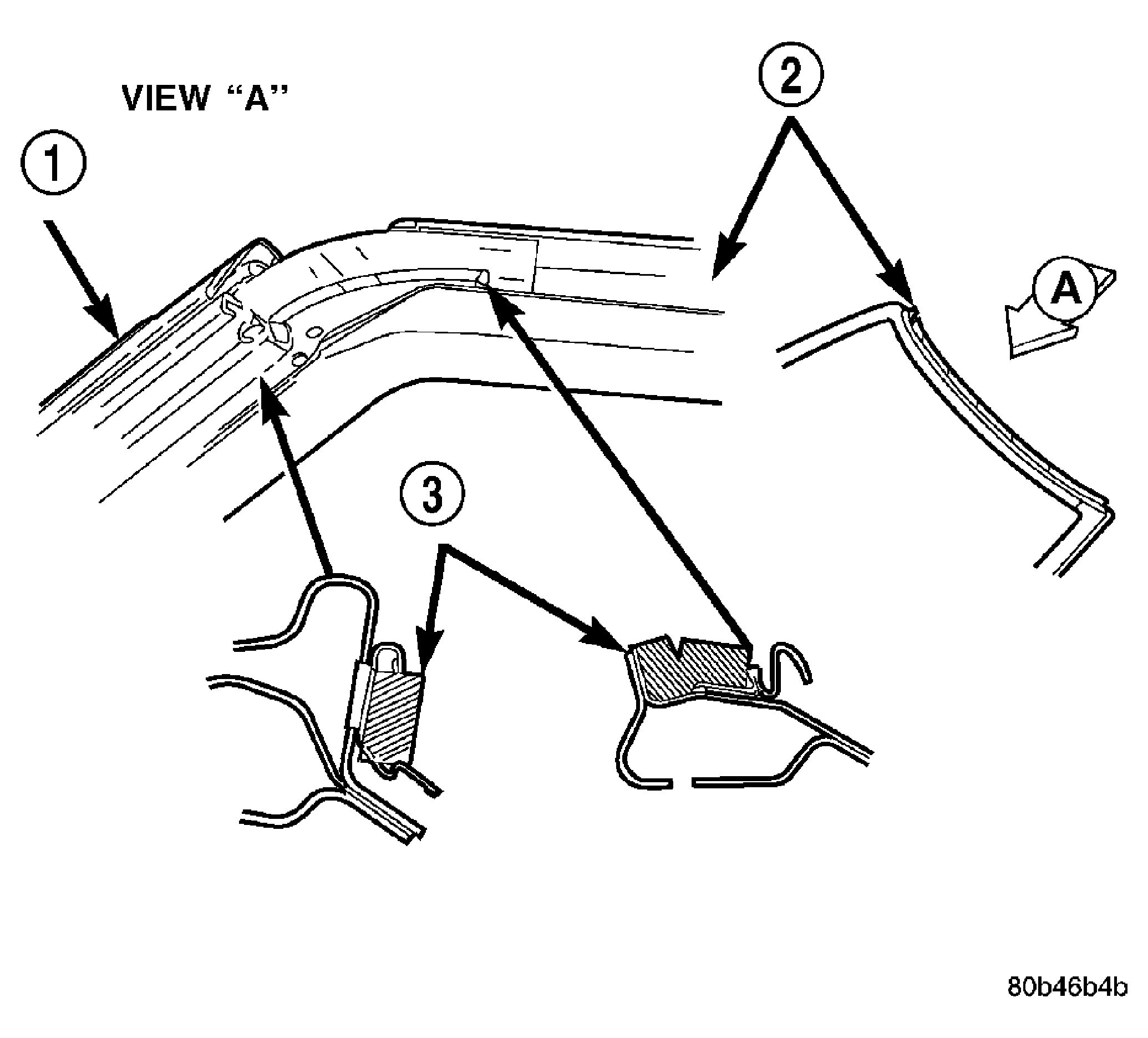

Fig 1: Butyl Patch and L - FOAM

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEADER WEATHERSTRIP RETAINER

2 - L-SHAPE FOAM ROPE

3 - A-PILLAR WEATHERSTRIP RETAINER

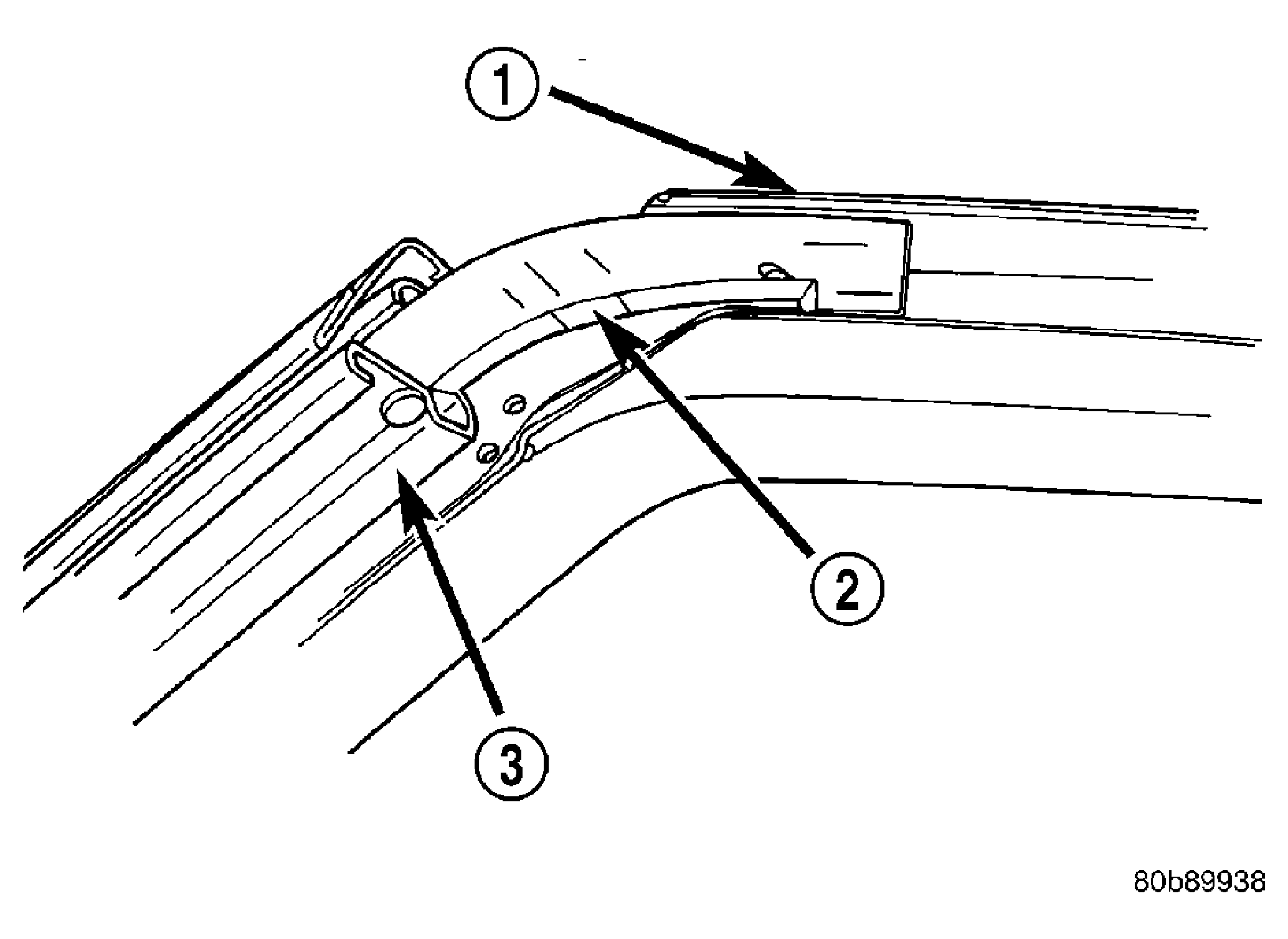

Fig 2: L Shape Foam Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - A-PILLAR

2 - HEADER

3 - L SHAPE FOAM
