Front Door Inner Belt Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front door trim panel. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL)
  2. Pull upward at rear end of inner belt weatherstrip.
  3. Remove inner belt weatherstrip from vehicle. See Fig 1.

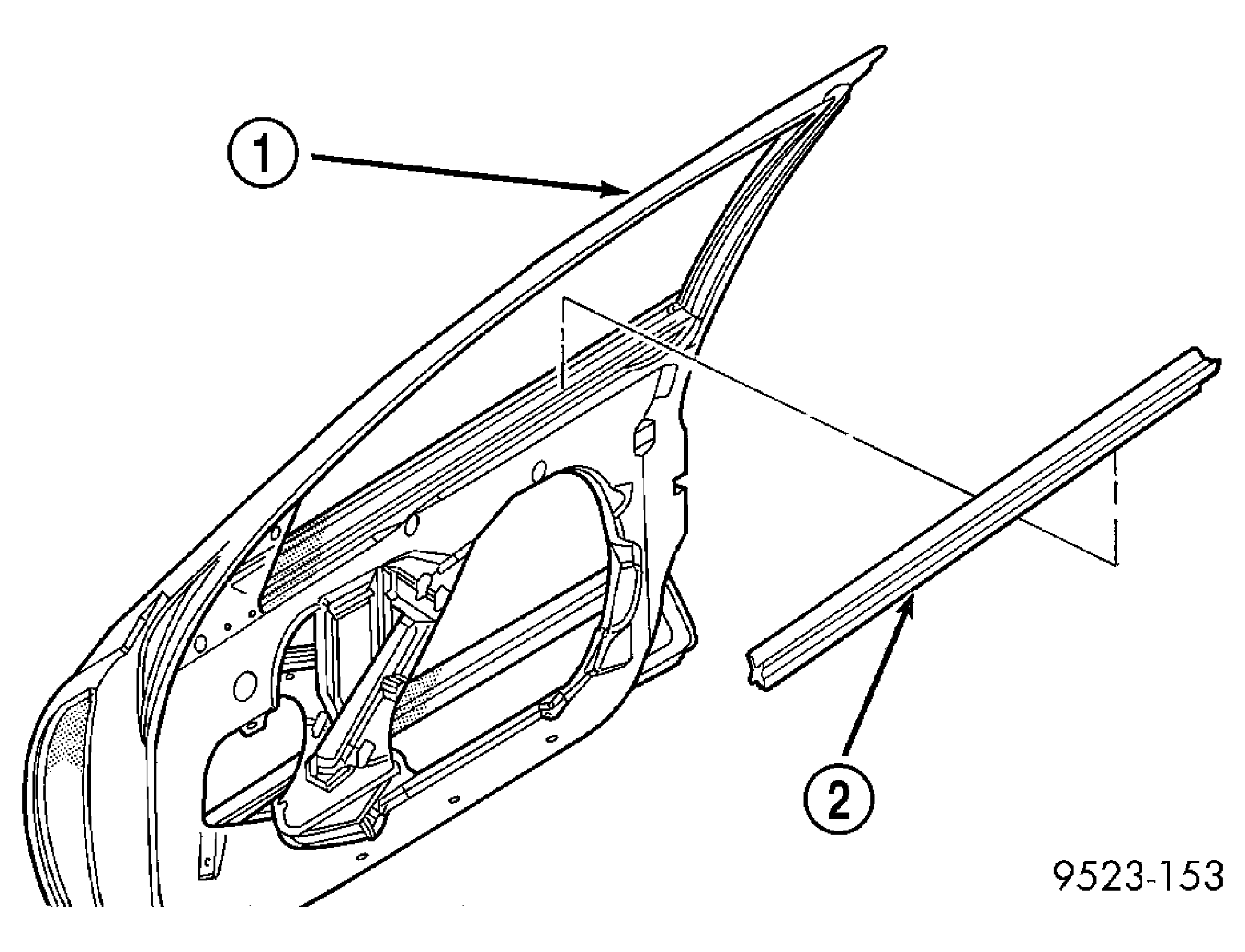

Fig 1: Front Door Inner Belt Weatherstrip
GC0031552Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT DOOR
2 - INNER BELT WEATHERSTRIP
