Front & Rear Door Opening Weatherstrip: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Open door.
- Remove door sill plate.

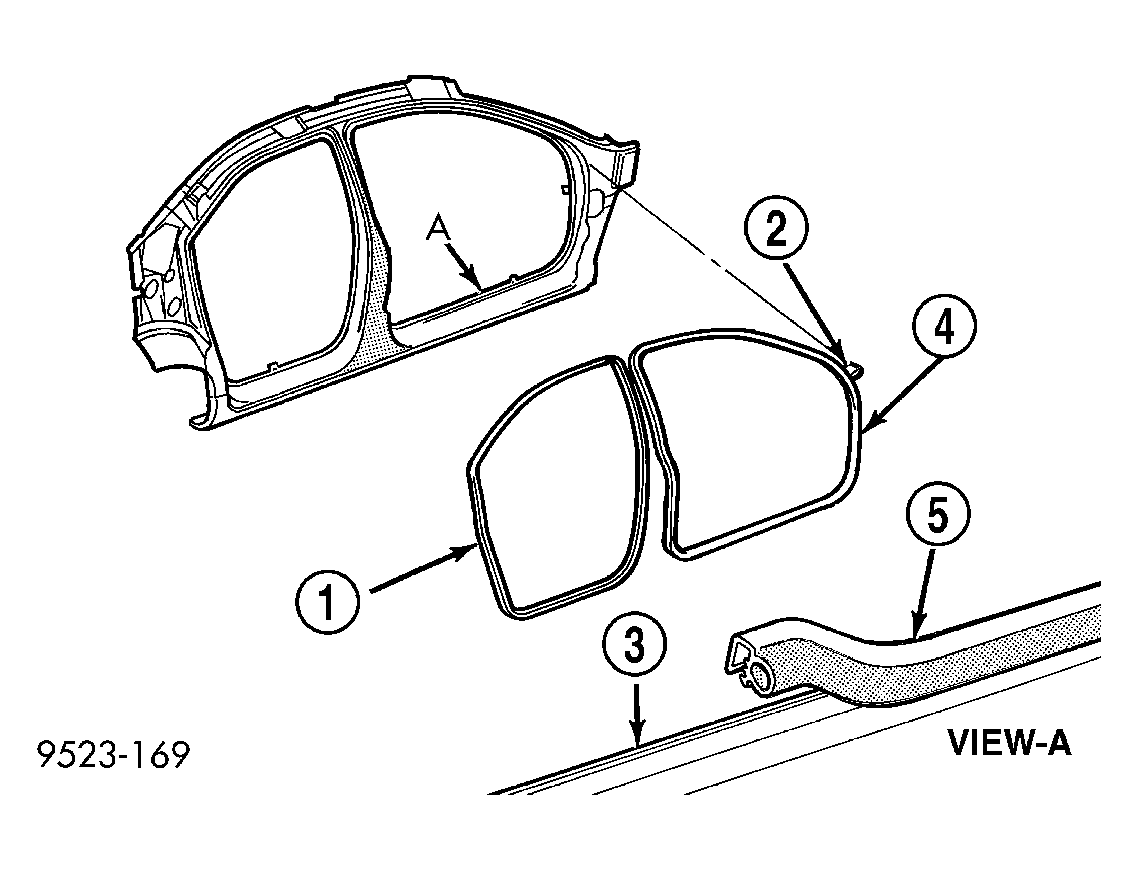

- Pull weatherstrip from pinch flange around door opening. See Fig 1.
| 1 - REAR DOOR WEATHERSTRIP |
| 2 - A-PILLAR SEAL |
| 3 - PINCH FLANGE |
| 4 - FRONT DOOR WEATHERSTRIP |
| 5 - WEATHERSTRIP |
