Drip Rail Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front and rear doors.
  2. Remove two screws. See Fig 1.
    Fig 1: Splash Shield
    GC0031549Courtesy of DAIMLERCHRYSLER CORP.
    1 - FASTENERS
    2 - SPLASH SHIELD
    3 - DRIP RAIL WEATHERSTRIP
  3. Position splash shield out of way.
  4. Starting at the bottom of the A-pillar, pull the drip rail weatherstrip from the windshield side molding.
  5. Pull the drip rail weatherstrip from the roof rail pinch flange above door openings.
  6. Remove drip rail weatherstrip from vehicle. See Fig 2.

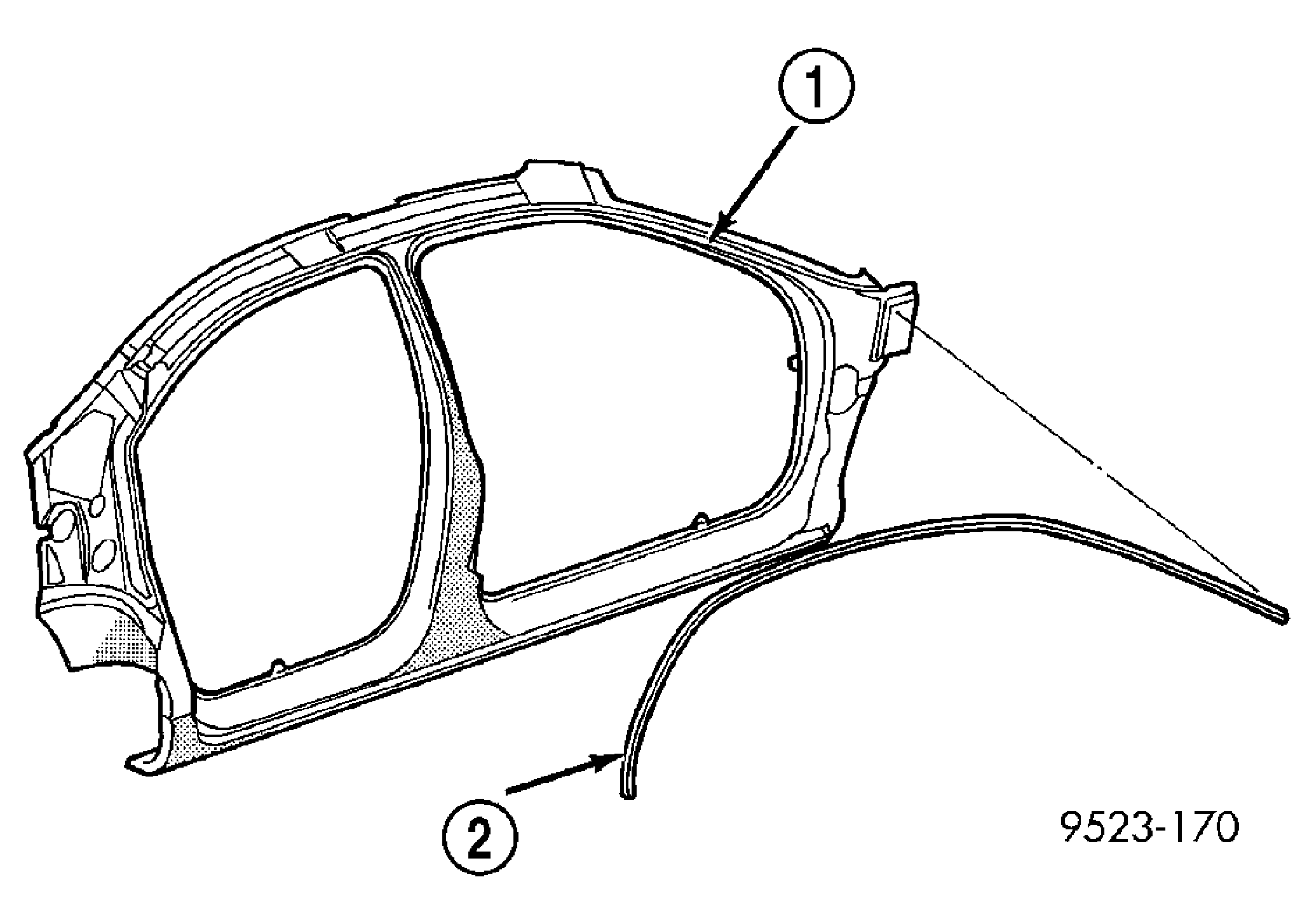

Fig 2: Drip Rail Weatherstrip
GC0031548Courtesy of DAIMLERCHRYSLER CORP.
1 - DRIP RAIL
2 - DRIP RAIL WEATHERSTRIP
