Door Inner Belt Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim panel.
  2. Pull upward on rear edge of inner belt weatherstrip. See Fig 1.
  3. Remove weatherstrip from vehicle.

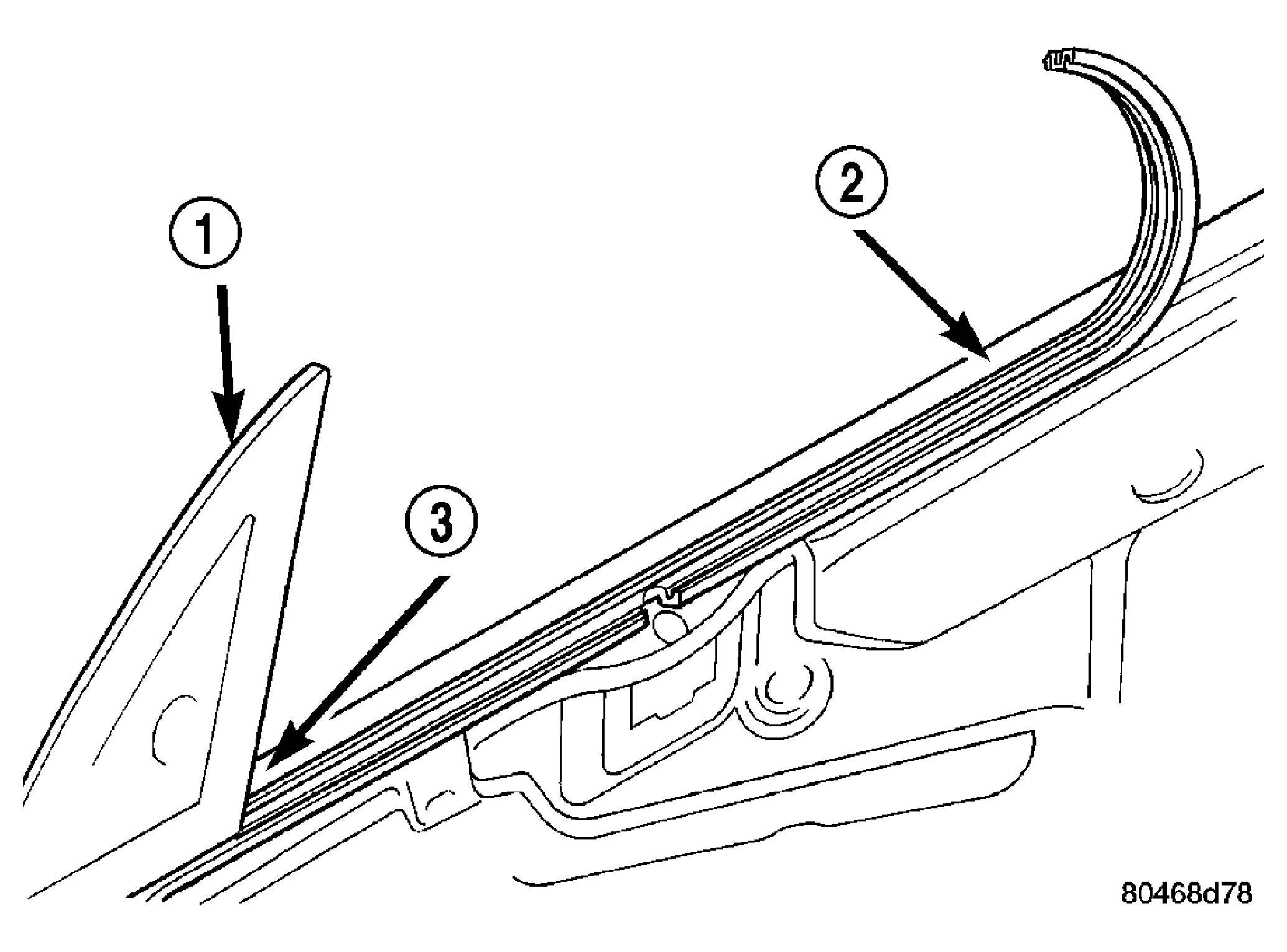

Fig 1: Door Inner Belt Weatherstrip
GC0031546Courtesy of DAIMLERCHRYSLER CORP.
1 - MIRROR FLAG/GLASS CHANNEL
2 - INNER BELT WEATHERSTRIP
3 - START THIS END FIRST
