DECKLID Opening Weatherstrip: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

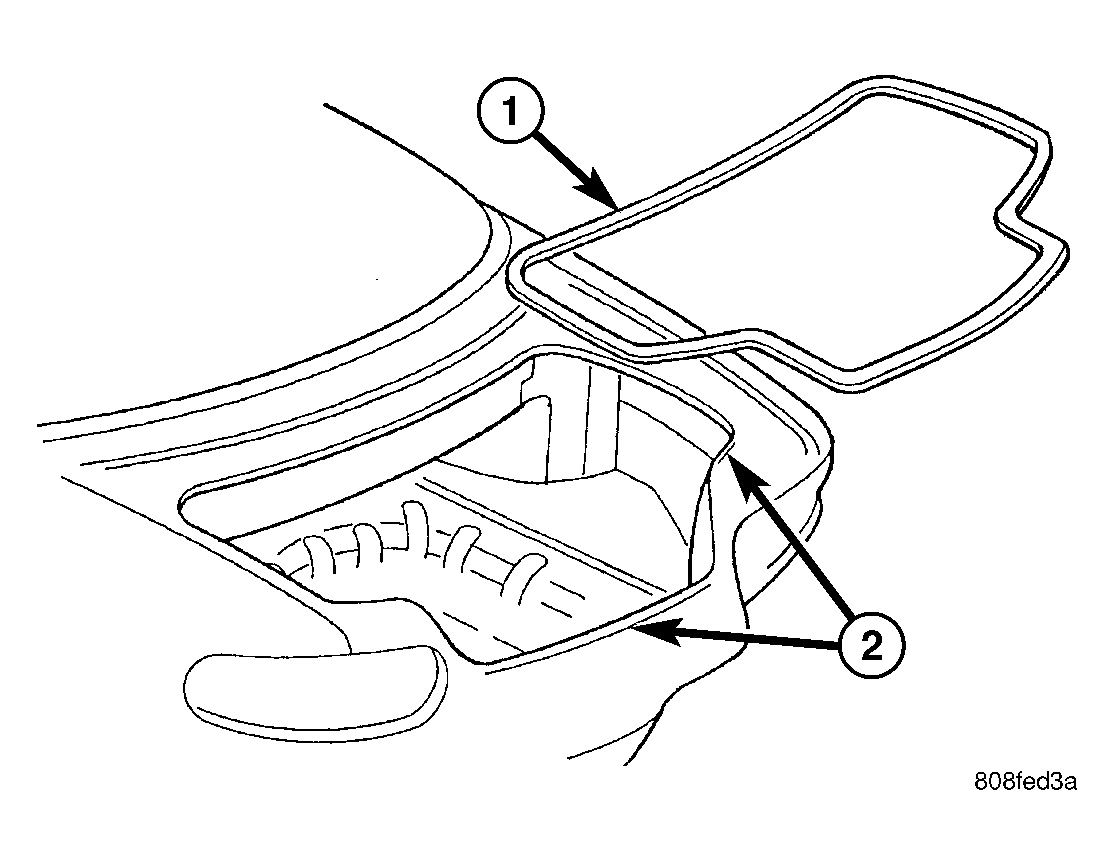

  1. Position decklid opening weatherstrip on vehicle. See Figure.
  2. Starting at center weatherstrip over decklid latch striker and press weatherstrip firmly onto decklid opening flange. Ensure that the weatherstrip seats properly along the entire length.
  3. Route the wire harness through the decklid and remove the tape and chase wire.
  4. Connect the three harness connectors and install the ground strap screw.
  5. Install the latch cover and install the four push pins.
  6. Connect the battery negative cable.
  7. Verify decklid operation and sealing.
