A-Pillar Weatherstrip Retainer And Molding: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Partially raise convertible top.
- Remove header and A-pillar weatherstrip as necessary to gain access.

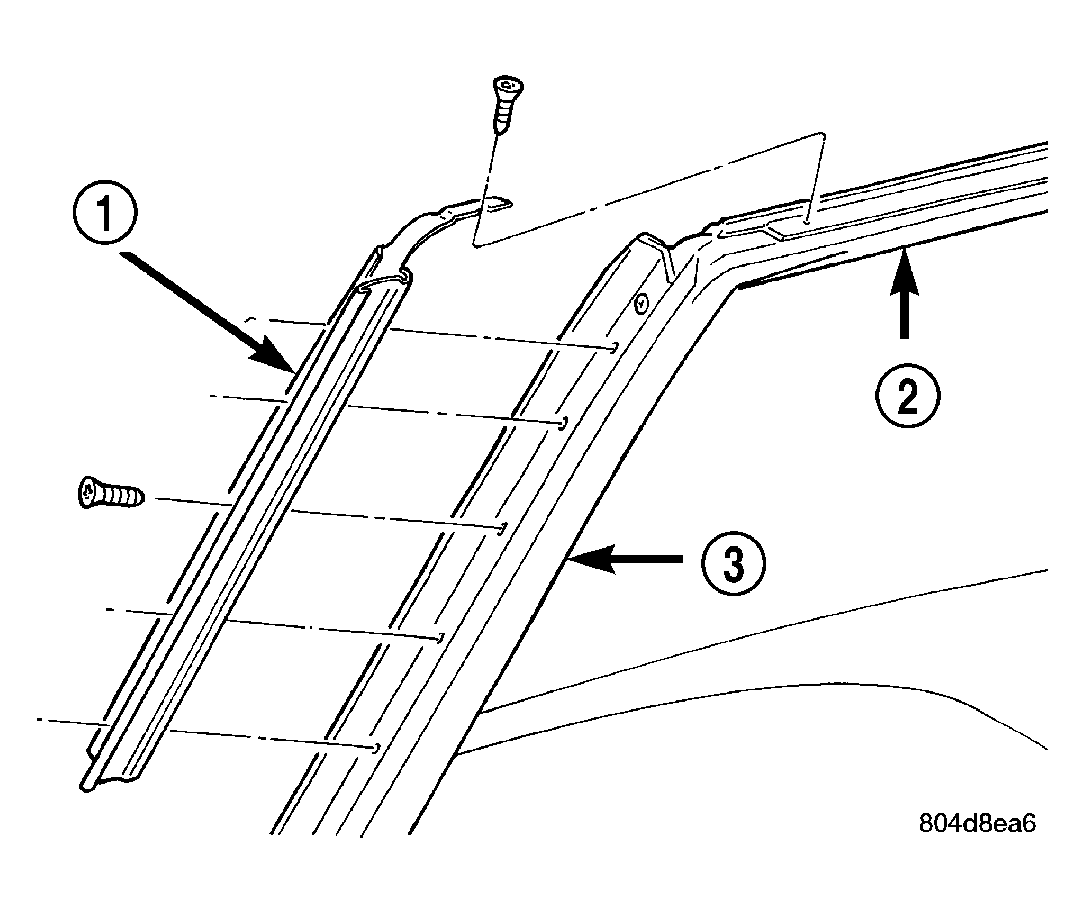

- Remove screws holding A-pillar weatherstrip retainer to A-pillar. See Fig 1.
- Remove retainer from vehicle.
- Remove screws attaching A-pillar molding to A-pillar.
- Remove A-pillar molding from vehicle.
| 1 - A-PILLAR WEATHERSTRIP RETAINER |
| 2 - HEADER |
| 3 - A-PILLAR |
