Section 82 (Interior & Exterior - Except Coupe): Sunroof: Sunshade: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install sunshade handle into the sunshade, by pressing the handle into place until the tabs lock behind the sunshade.

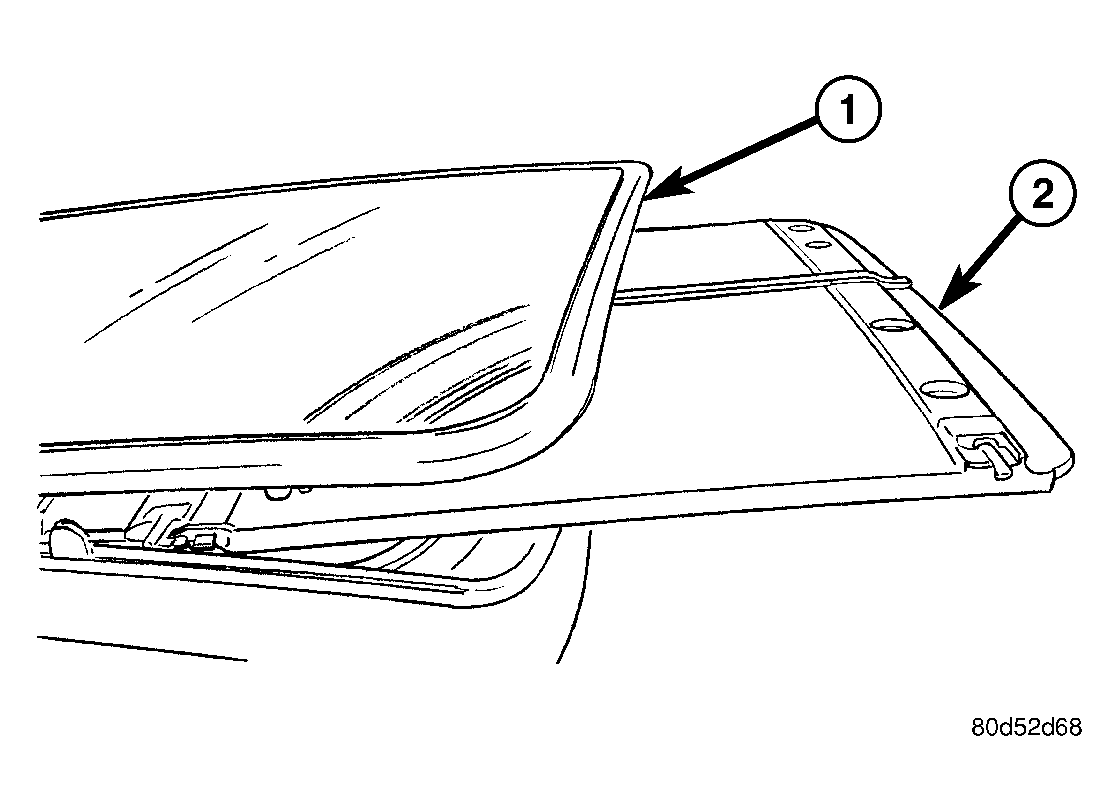

  2. Install the sunshade into the vehicle between the roof and the glass panel in the vent position. See Figure.

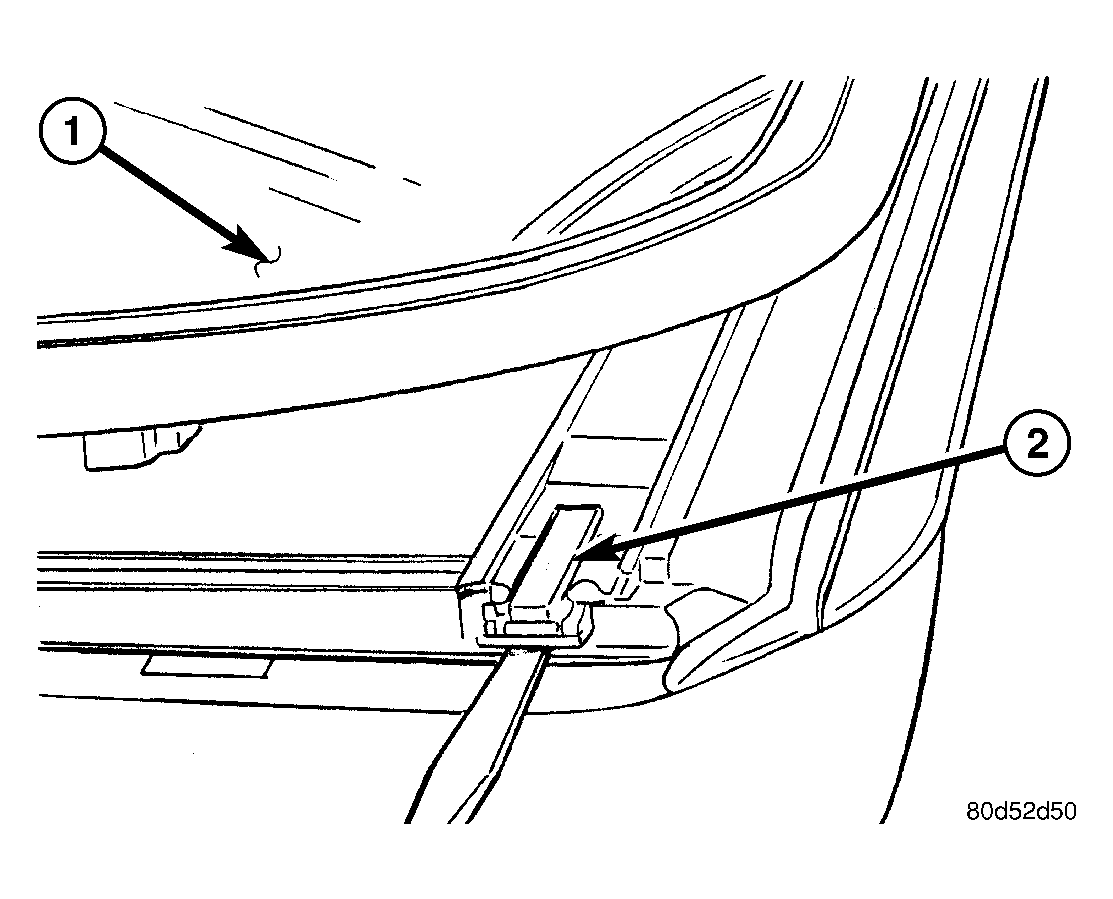

  3. Move the sunshade to the closed position. Through the opening using a flat tool, engage the rear guides into the guide rails. See Figure.
  4. Slide sunshade rearward to access the front two guides. Engage the front guides into the guide rails. See Figure.
  5. Ensure the sunshade operation and operate the sunroof.
