Sunroof Glass Panel: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide sunshade rearward to the open position.
  2. Move the glass panel to the vent position.
  3. Remove the glass panel screws on each side. See Fig 1.
  4. Lift off glass panel and remove from vehicle.

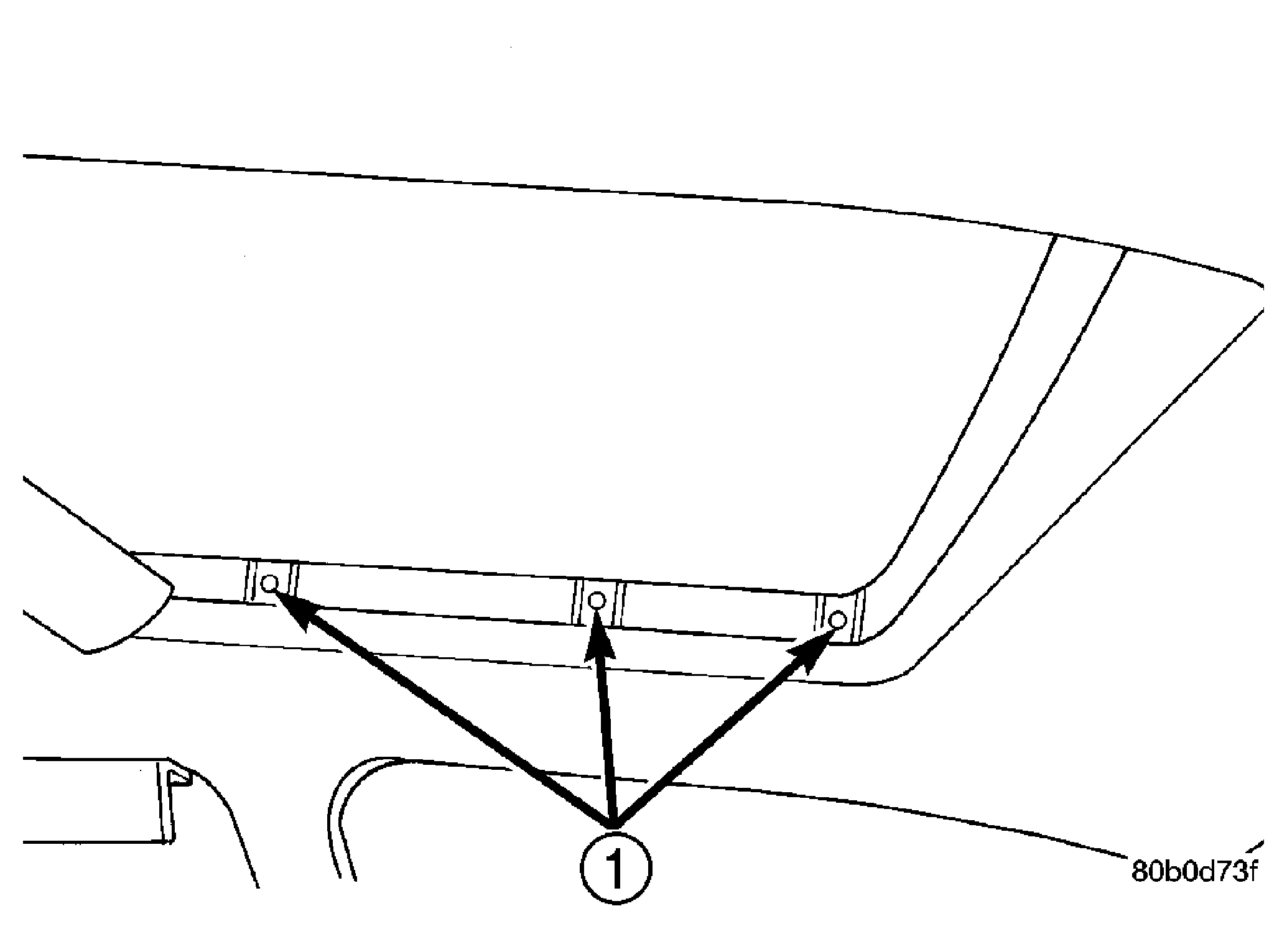

Fig 1: Sunroof Glass Panel Screws
GC0031536Courtesy of DAIMLERCHRYSLER CORP.
1 - ATTACHING SCREWS
