Removal - Front Seat Adjuster - Power

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat from vehicle.
  2. Remove seat cushion side shield and disconnect switch connector.
  3. Remove seat back.
  4. Remove bolts attaching seat adjuster to cushion pan. See Fig 1.
  5. Disconnect wire harness fasteners from cushion pan.
  6. Remove seat adjuster from seat cushion.

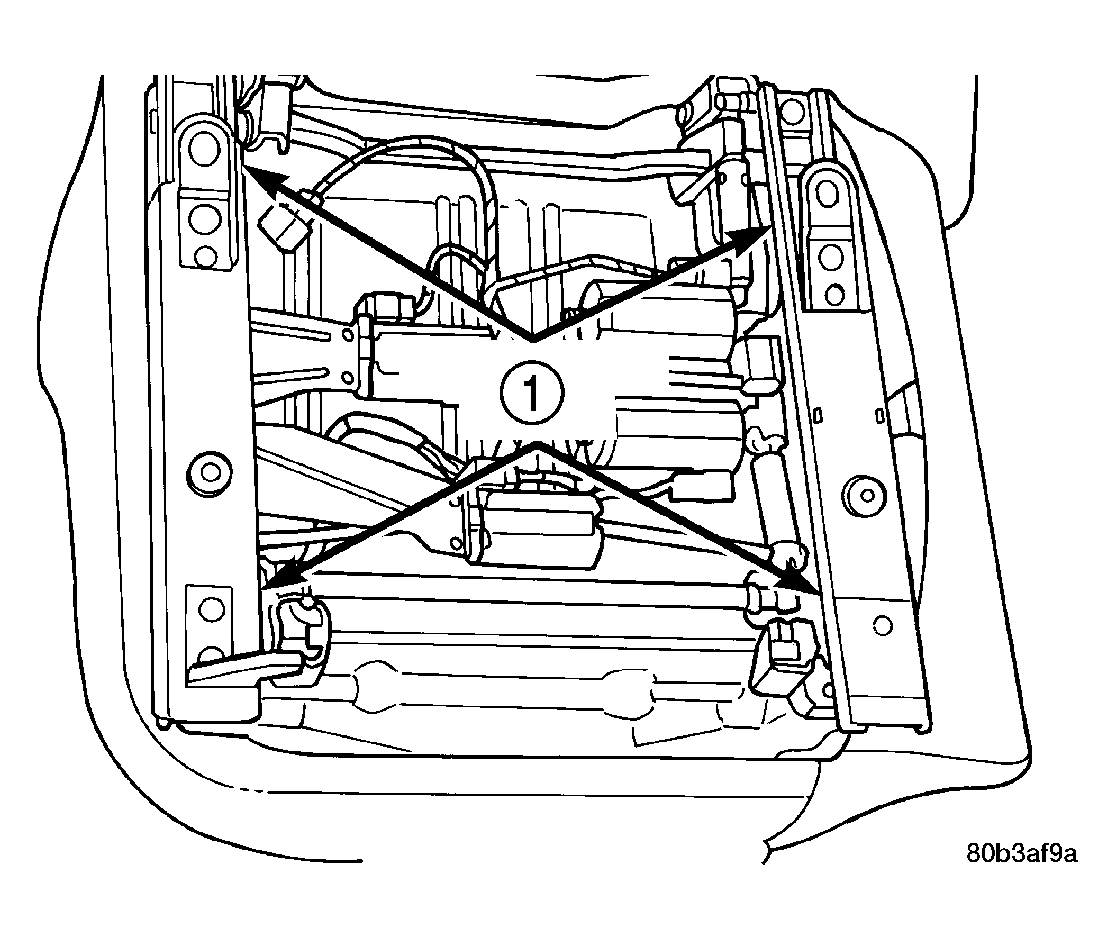

Fig 1: Front Seat Track
GC0031522Courtesy of DAIMLERCHRYSLER CORP.
1 - ATTACHING BOLTS
