Removal - Rear

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fabric covered cushions are serviced as an assembly.

Pull upward at forward edge of cushion each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor. See Fig 1.
Guild seat belts through loops.
Remove rear seat cushion from vehicle.

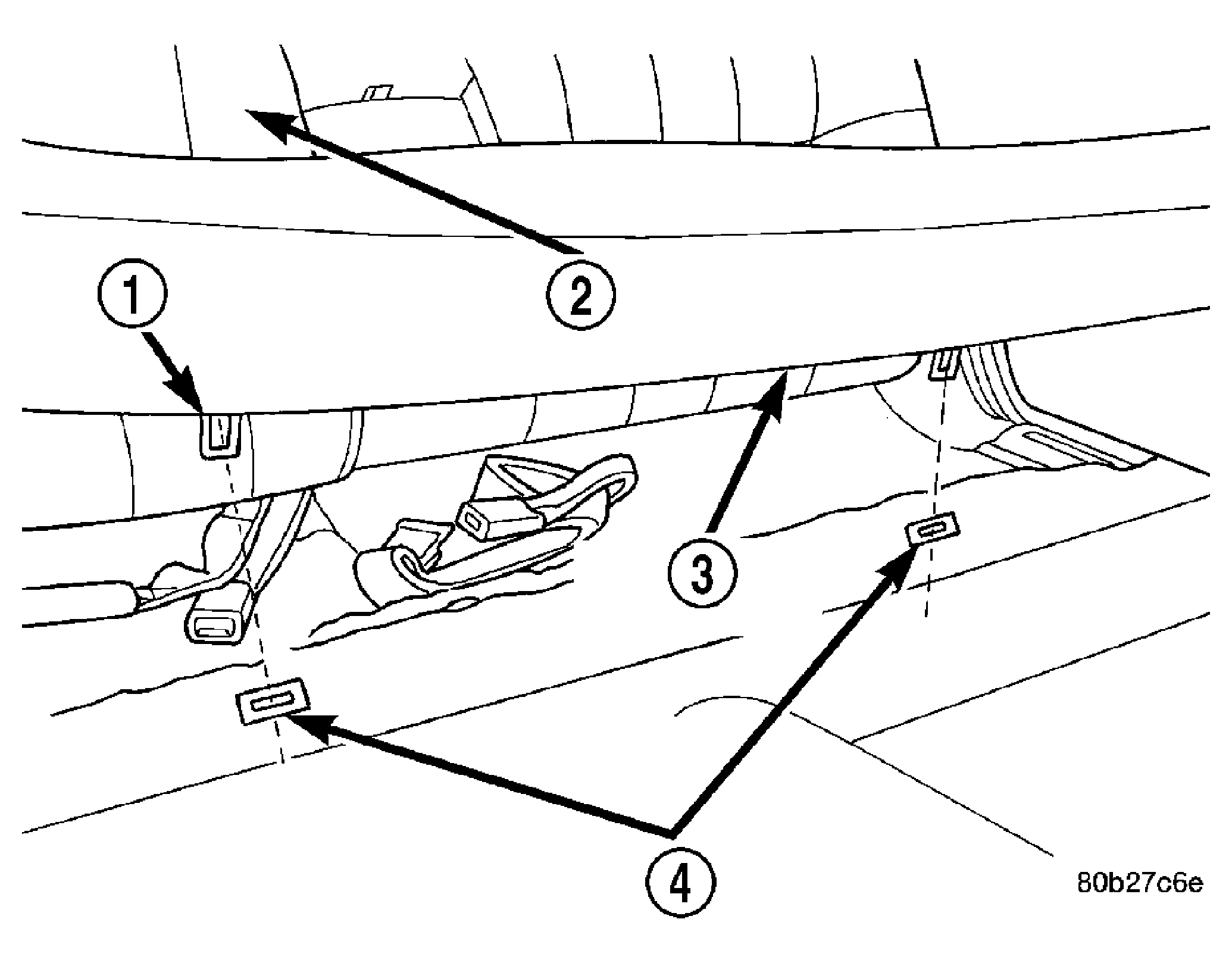

Fig 1: Rear Seat Cushion

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINER LOOP

2 - REAR SEAT BACK

3 - REAR SEAT CUSHION

4 - CUPS
