Removal - Jr-27 Only
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Special care should be taken when removing rear seat cushion to prevent damage to the cushion frame. Remove cushion at attachment areas, not at wing area.
- Push firmly rearward and upward at one attachment point and disengage wire loops from retainers in floor pan. See Fig 1.
- Repeat for other attachment point.
- Separate rear seat cushion from vehicle.

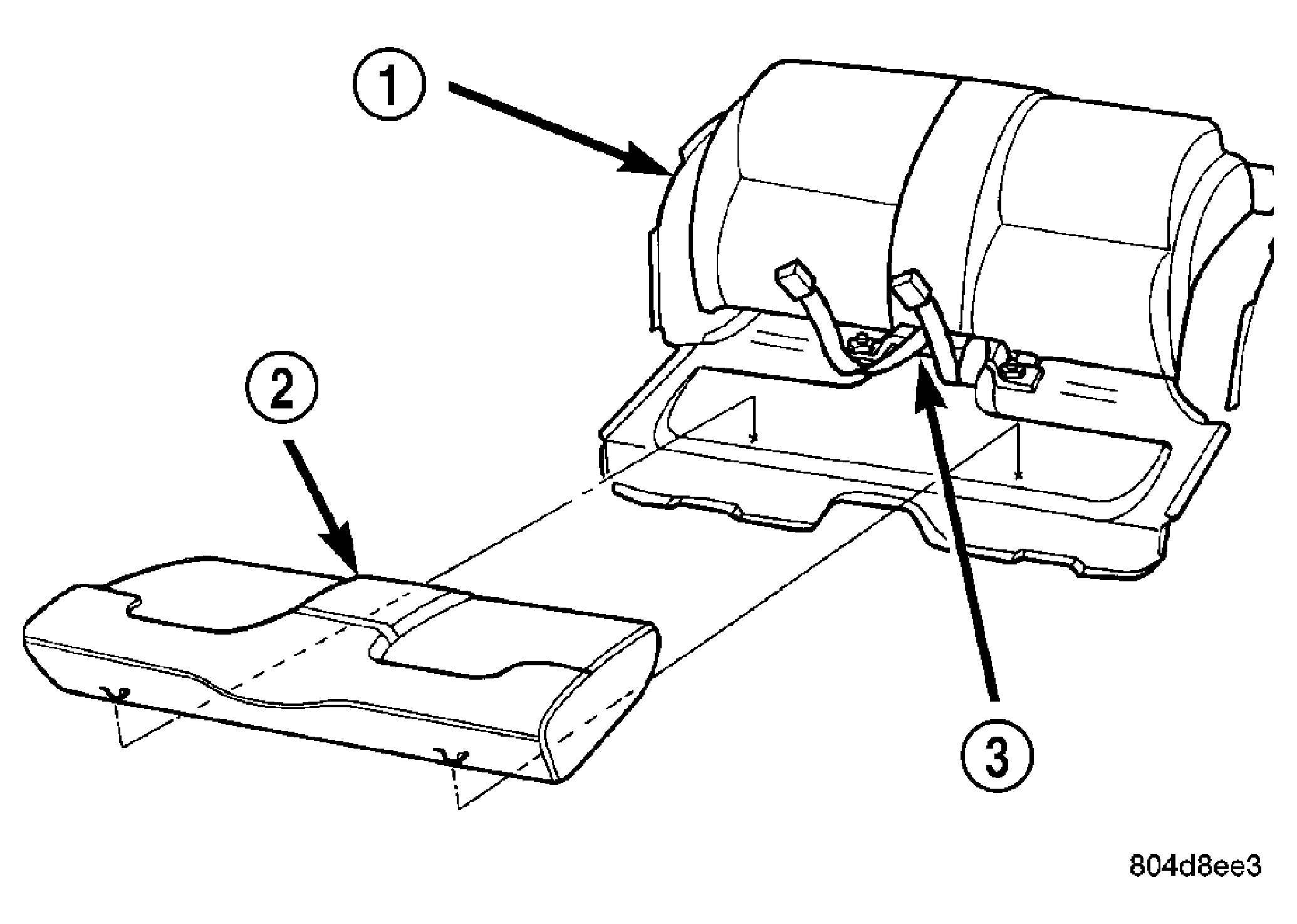

| 1 - REAR SEAT BACK |
| 2 - REAR SEAT CUSHION |
| 3 - INNER SEAT BELTS |
