Removal - Folding Back

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Fabric covered cushions are serviced as an assembly.
  1. Remove rear seat cushion. (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL)
  2. Remove the rear seat buckles and belt anchors. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT - REAR INBOARD - REMOVAL) .
  3. Remove the outer seat back bracket nuts. See Fig 1.
  4. Release folding rear seat back latches.
  5. Remove seat back from vehicle.

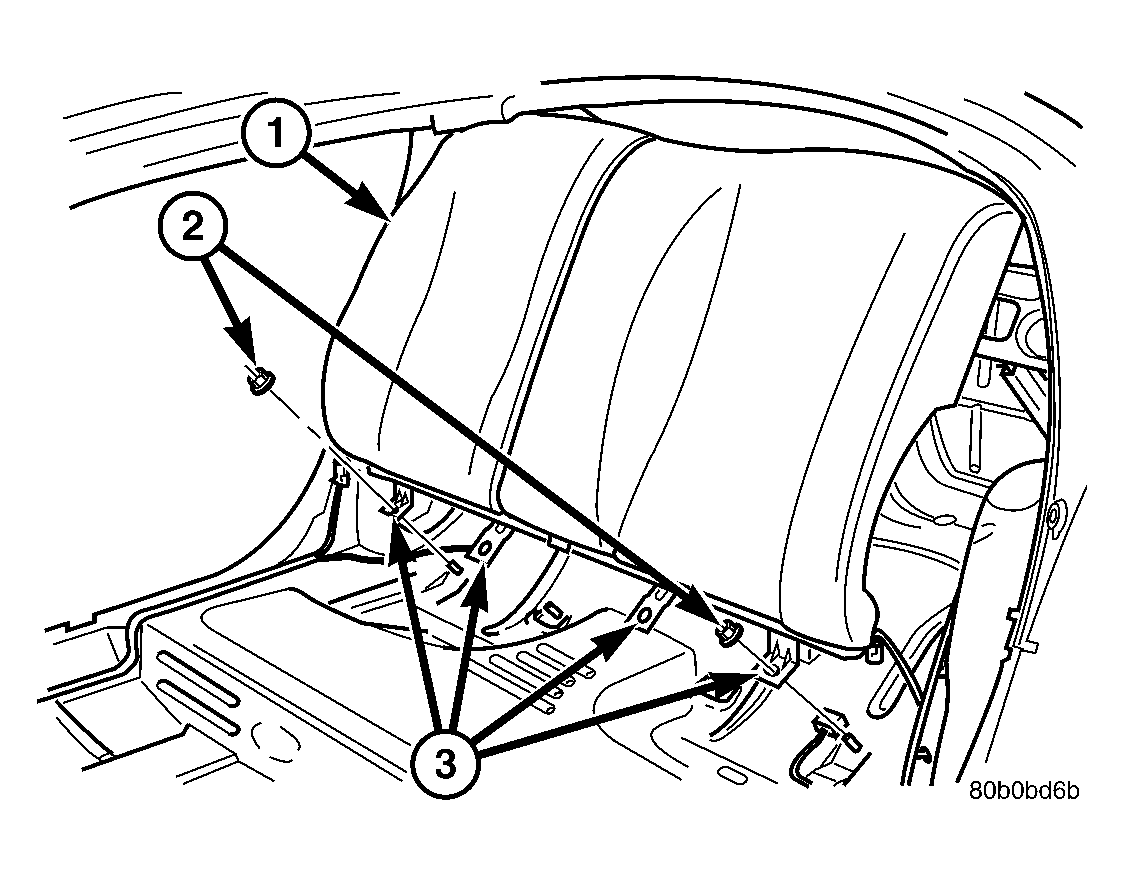

Fig 1: Rear Seat Back
GC0031518Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT BACK
2 - NUTS
3 - BRACKETS
