Removal - Power - Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move seat to full forward position.
  2. Remove rear inboard bolt attaching seat to floor pan.
  3. Remove rear outboard bolts attaching seat to side sill pylon.
  4. Position seat in full rearward position.

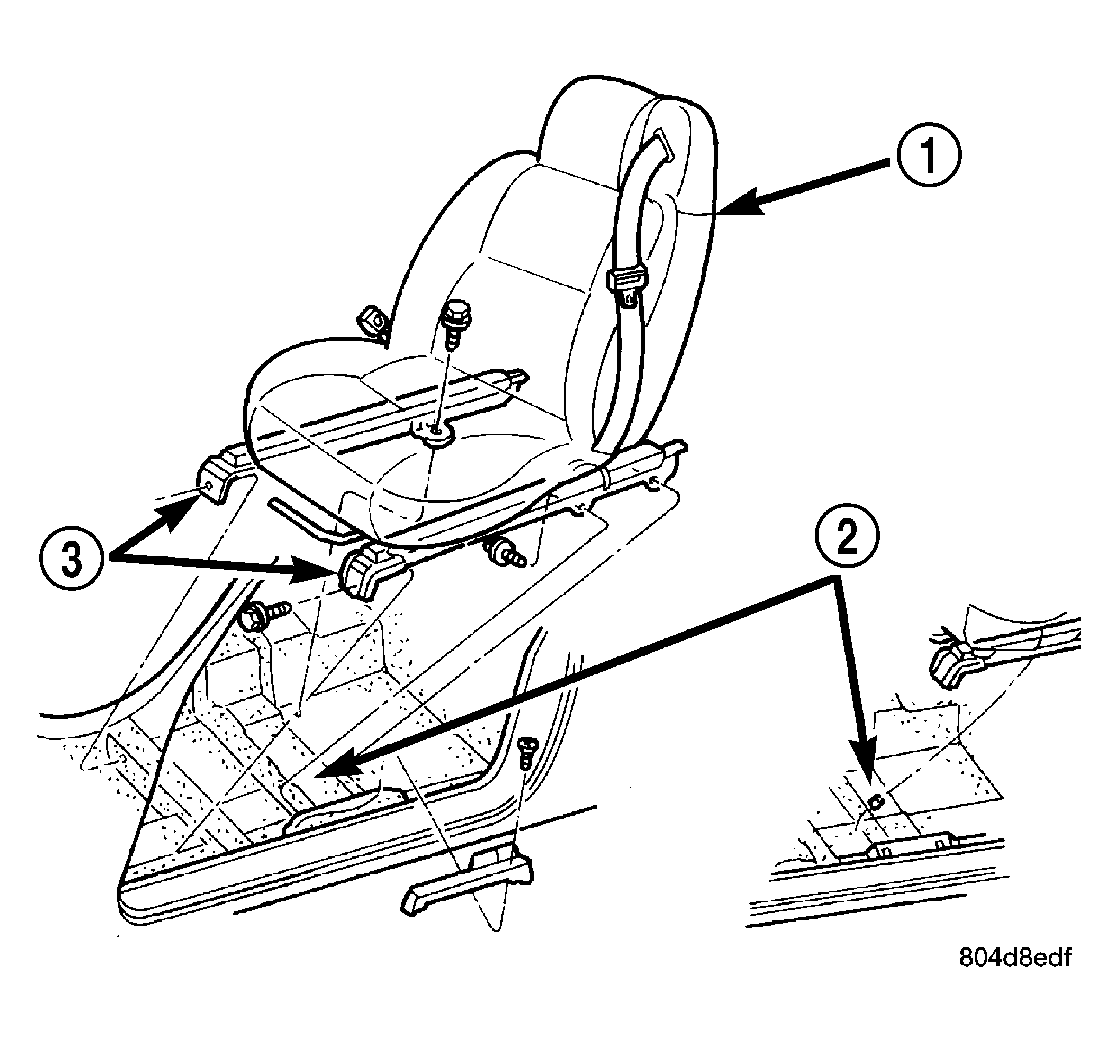

  5. Remove front inboard and outboard bolts attaching seat to floor pan crossmember. See Figure.
  6. Tilt seat rearward and disconnect wire connector to seat belt pretensioner and power seat mechanism.
  7. Remove seat from vehicle.
