Description - Jr-27 Only
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

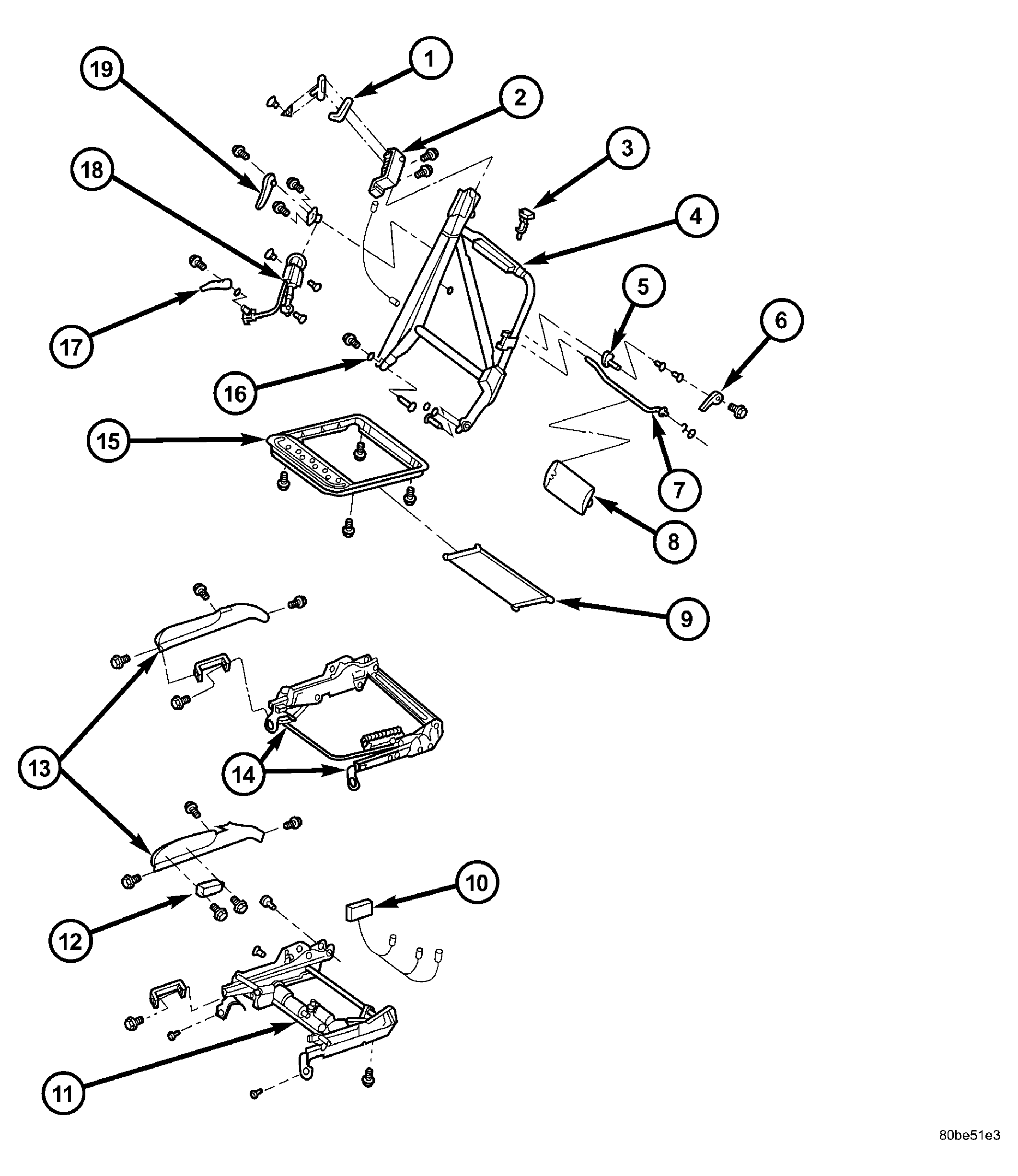

Refer to Fig 1 for more information while servicing the front seat.
| 1 - SEAT BELT TRIM BEZEL |
| 2 - SEAT BELT RETRACTOR |
| 3 - HEADREST SLEEVE |
| 4 - SEAT BACK FRAME ASSEMBLY |
| 5 - LUMBAR CAM ASSEMBLY |
| 6 - LUMBAR HANDLE |
| 7 - LUMBAR ROD ASSEMBLY |
| 8 - LUMBAR BACKREST |
| 9 - SEAT SUSPENSION |
| 10 - POWER SEAT WIRING HARNESS |
| 11 - POWER SEAT ADJUSTER ASSEMBLY |
| 12 - POWER SEAT SWITCH |
| 13 - SEAT SIDE SHIELD |
| 14 - MANUAL SEAT ADJUSTER ASSEMBLY |
| 15 - CUSHION FRAME ASSEMBLY |
| 16 - MEMORY DUMP CAM |
| 17 - LOWER RECLINER HANDLE |
| 18 - RECLINER ASSEMBLY |
| 19 - UPPER RECLINER HANDLE |
