Removal - Jr-27 Only

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower recliner handle.
  2. Remove screws attaching seat side shield to seat frame.
  3. Remove screws attaching power seat switch to side shield, if so equipped.
  4. Remove side shield from vehicle. See Fig 1.

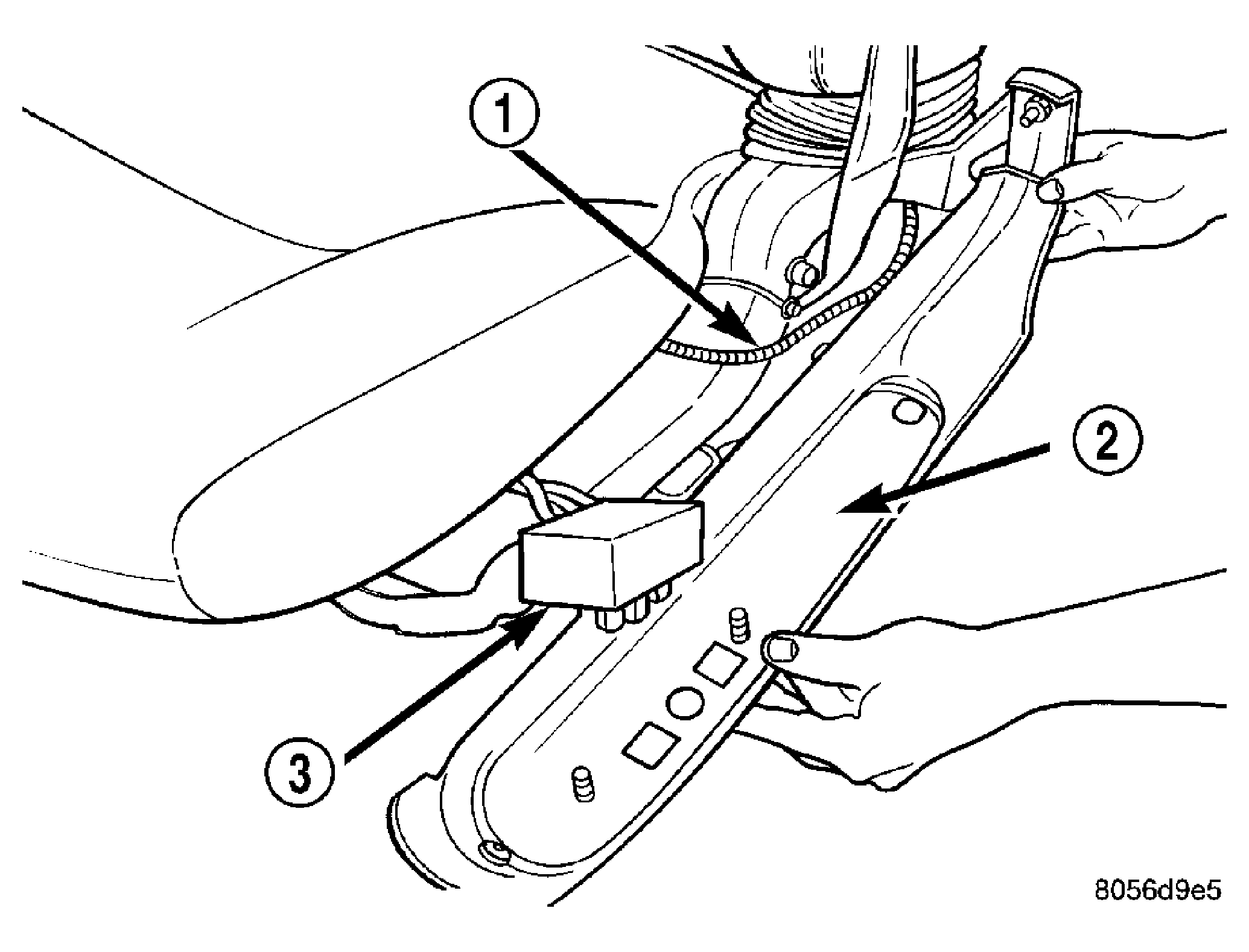

Fig 1: Front Seat Side Shield
GC0031508Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT FRAME
2 - SEAT SIDE SHIELD
3 - POWER SEAT SWITCH
