Removal - Front Seat Cushion Cover

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Fabric covered cushions are serviced as an assembly.
  1. Remove seat from vehicle.
  2. Remove front seat cushion side shields and disconnect wire connectors, if equipped.
  3. Remove seat back.
  4. Remove seat cushion bolts.
  5. Disconnect wire harness fasteners from cushion pan. See Figure.
  6. Disengage J-strap attaching seat cover from the seat cushion frame. See Fig 1.
  7. Pull cover off to the hog rings. See Fig 2.
  8. Cut hog rings attaching seat cover seat cushion.
  9. Remove seat cushion cover from seat cushion.
Fig 1: Front Seat Cushion J-Strap
GC0031510Courtesy of DAIMLERCHRYSLER CORP.
1 - J-STRAP

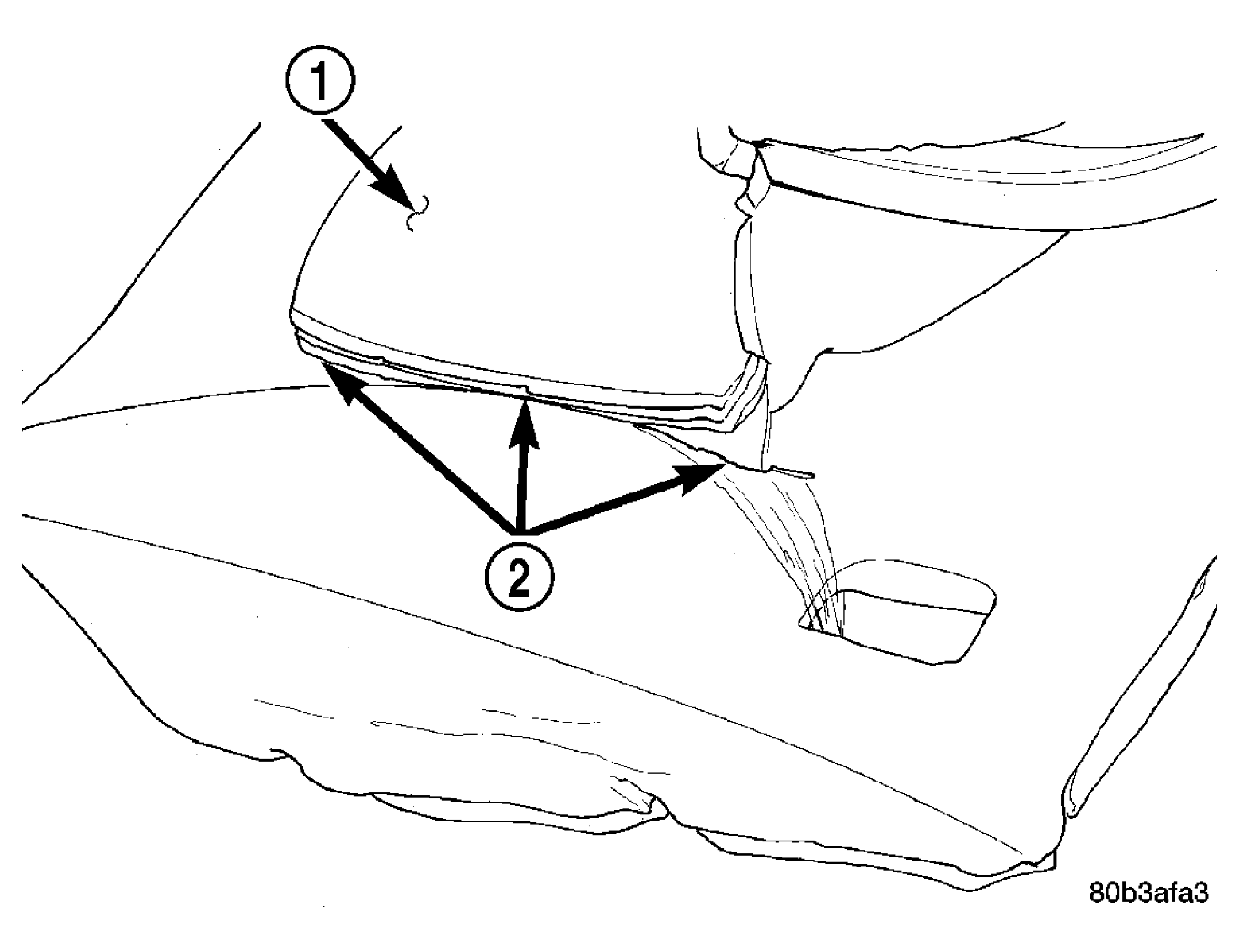

Fig 2: Seat Cushion Cover
GC0031511Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT COVER
2 - HOG RINGS
