Installation - Front Seat Cushion Cover
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fabric covered cushions are serviced as an assembly.
- Position seat cover on cushion.
- Align seat cover with cushion alignment indentations. See Fig 1.
- Install hog rings.
- Engage J-strap attaching seat cover to front of seat cushion frame.
- Install wire harness fasteners to cushion pan.
- Install seat cushion bolts.
- Install seat back. Tighten recliner bolts to 12 N.m (9 ft. lbs.) torque. Tighten pivot bolts to 40 N.m (30 ft. lbs.) torque.
- Connect switch wire connectors to the cushion side shield, if equipped.
- Install cushion side shields.
- Install seat in vehicle.

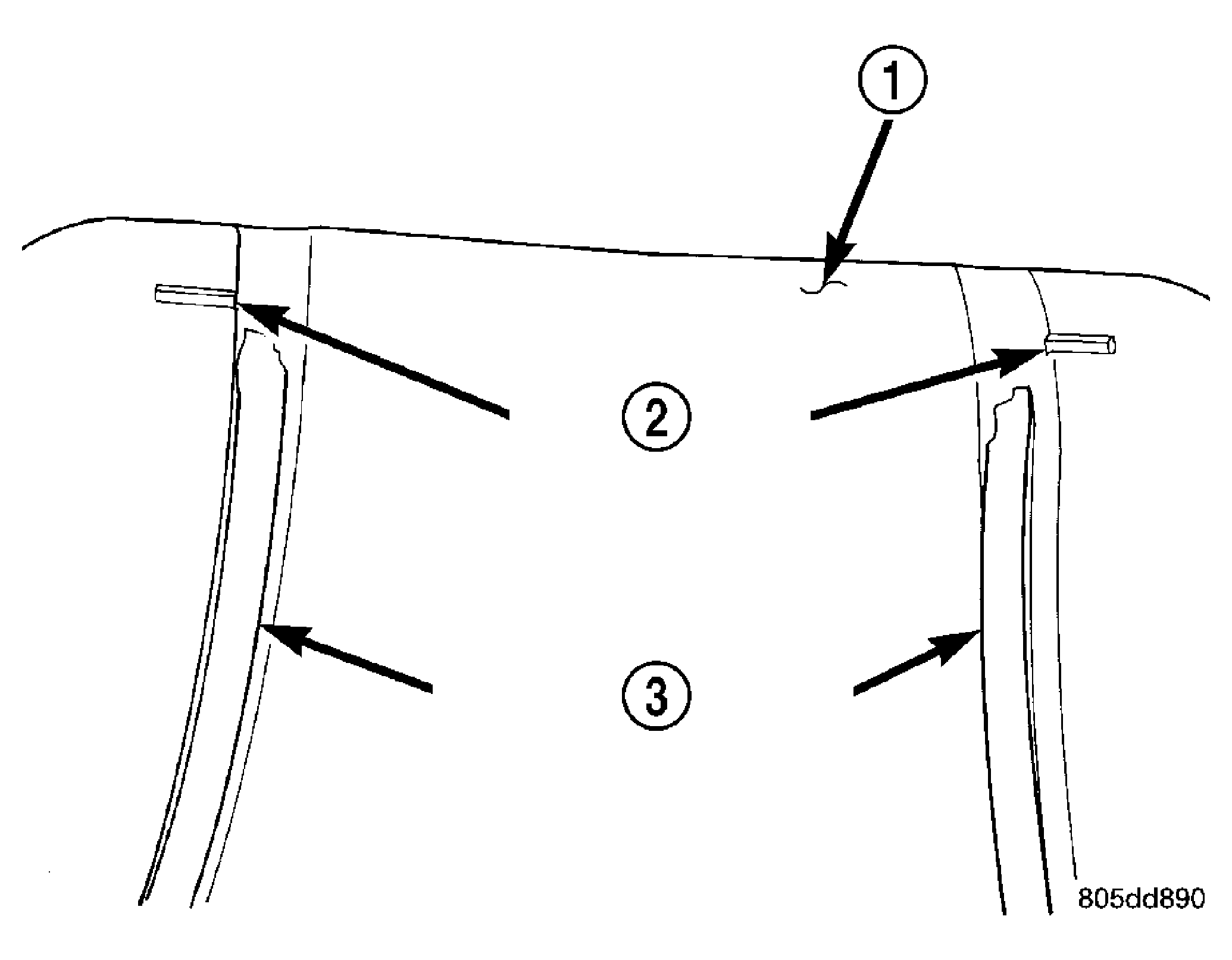

| 1 - SEAT CUSHION |
| 2 - ALIGNMENT INDENTATIONS |
| 3 - HOOK AND LOOP FASTENER |
