Removal - Jr-27 Only
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove seat from vehicle (Refer to BODY/SEATS/SEAT - REMOVAL) .
- Remove recliner handle.
- Remove seat side shield (Refer to BODY/SEATS/SEAT CUSHION SIDE SHIELDS - REMOVAL) .
- Remove recliner cable eyelet clip. See Fig 1.
- Remove recliner cable from arm on seat adjuster and feed cable back through hole in seat adjuster.
NOTE:
The torque prevailing nuts used to secure the lower seat belt anchor and seat belt buckle are not reusable. Verify availability prior to proceeding.
- Remove seat cushion (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
- Remove nut attaching lower seat belt anchor to seat frame. See Fig 1.
- Back off nut attaching seat belt buckle to seat frame.
- Remove seat belt buckle pretensioner from seat frame.

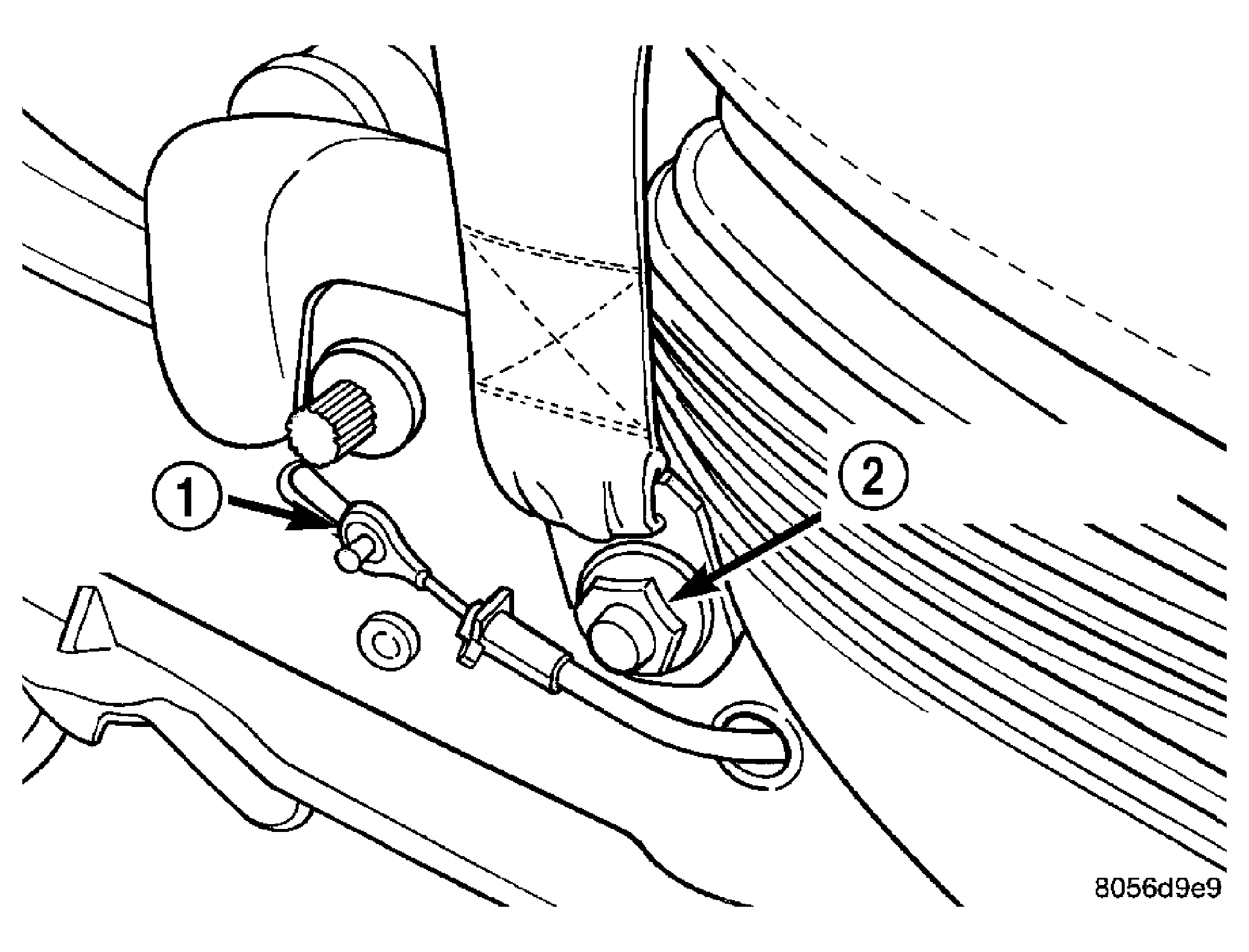

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - RECLINER CABLE |
| 2 - LOWER SEAT BELT ANCHOR |
- Remove E-clip and washer from easy entry rod at inboard side of seat, manual seat only.
- Remove rod from seat back, manual seat only.
- Remove pivot bolts attaching seat back to seat frame.
WARNING:
DO NOT PULL ON UPPER RECLINER HANDLE OR RECLINER CABLE END AT ANY POINT UNTIL THE LEAD SCREW IS REMOVED IT IS UNDER A HIGH PRESSURE LOAD.
- Remove bolt attaching recliner lead screw to seat frame.
- Remove seat back from seat frame (Refer to BODY/SEATS/SEAT BACK - REMOVAL) .
- Unscrew lead screw from recliner mechanism. See Fig 2.
- Remove lead screw, spring and spring plate. See Fig 3.

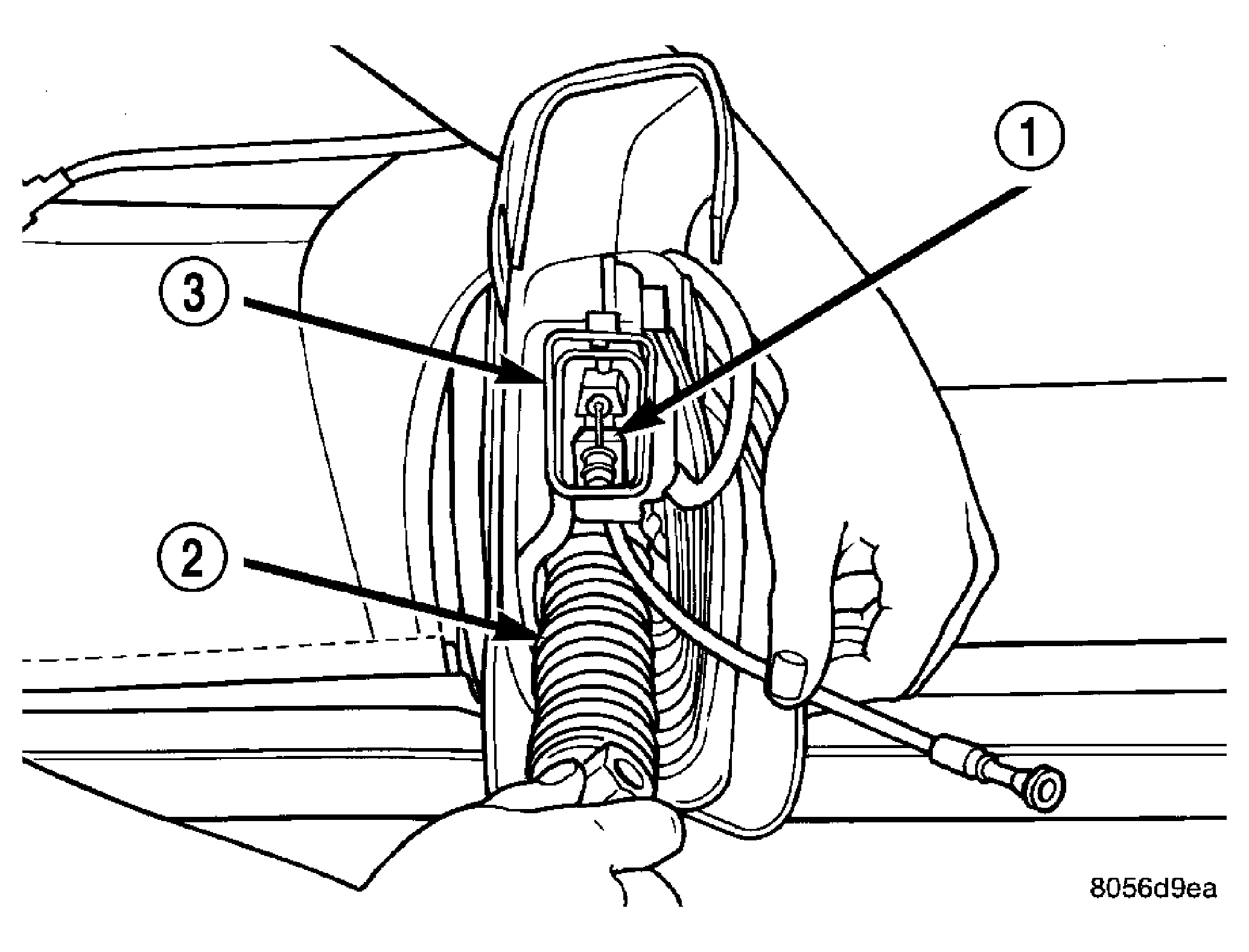

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - RECLINER MECHANISM |
| 2 - LEAD SCREW |
| 3 - SEAT FRAME |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - LEAD SCREW SPRING PLATE |
| 2 - LEAD SCREW |
