Windshield Header Damper: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove center header trim panel (Refer to BODY/INTERIOR/INTERIOR TRIM PANELS - REMOVAL) .
Remove nuts attaching damper. See Fig 1.
Remove damper from vehicle.

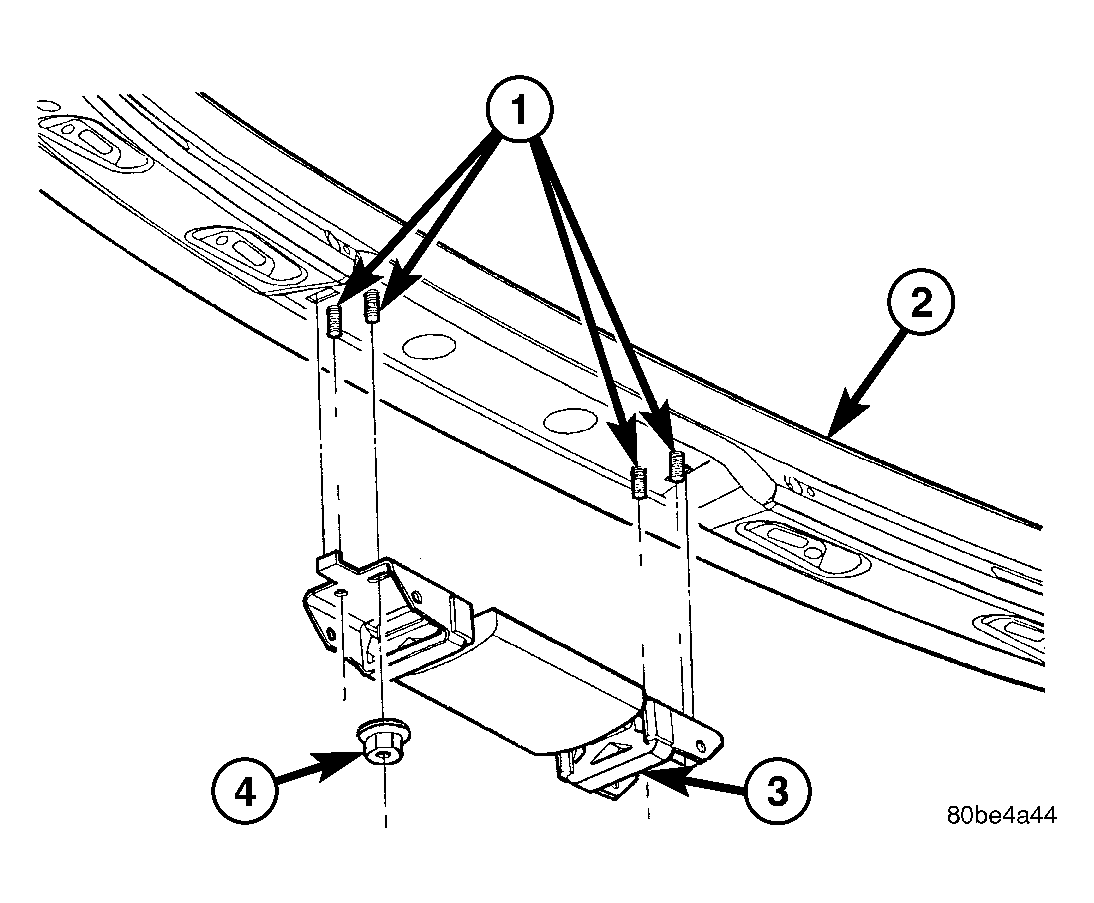

Fig 1: Windshield Header Damper

Courtesy of DAIMLERCHRYSLER CORP.

1 - STUDS

2 - HEADER PANEL

3 - WINDSHIELD HEADER DAMPER

4 - NUT(S)
