Shift Boot: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the shifter nob set screw and pull knob off of the shifter. See Fig 1.
NOTE:
Do not use a trim stick or tool to remove transmission range indicator.
- Remove transmission range indicator bezel by squeezing the sides slightly and lifting up until the locking tabs are free of the floor console. Refer to Fig 1 for pressure points.
- Disconnect the electrical connector, if equipped, and remove the shift boot. See Fig 2.

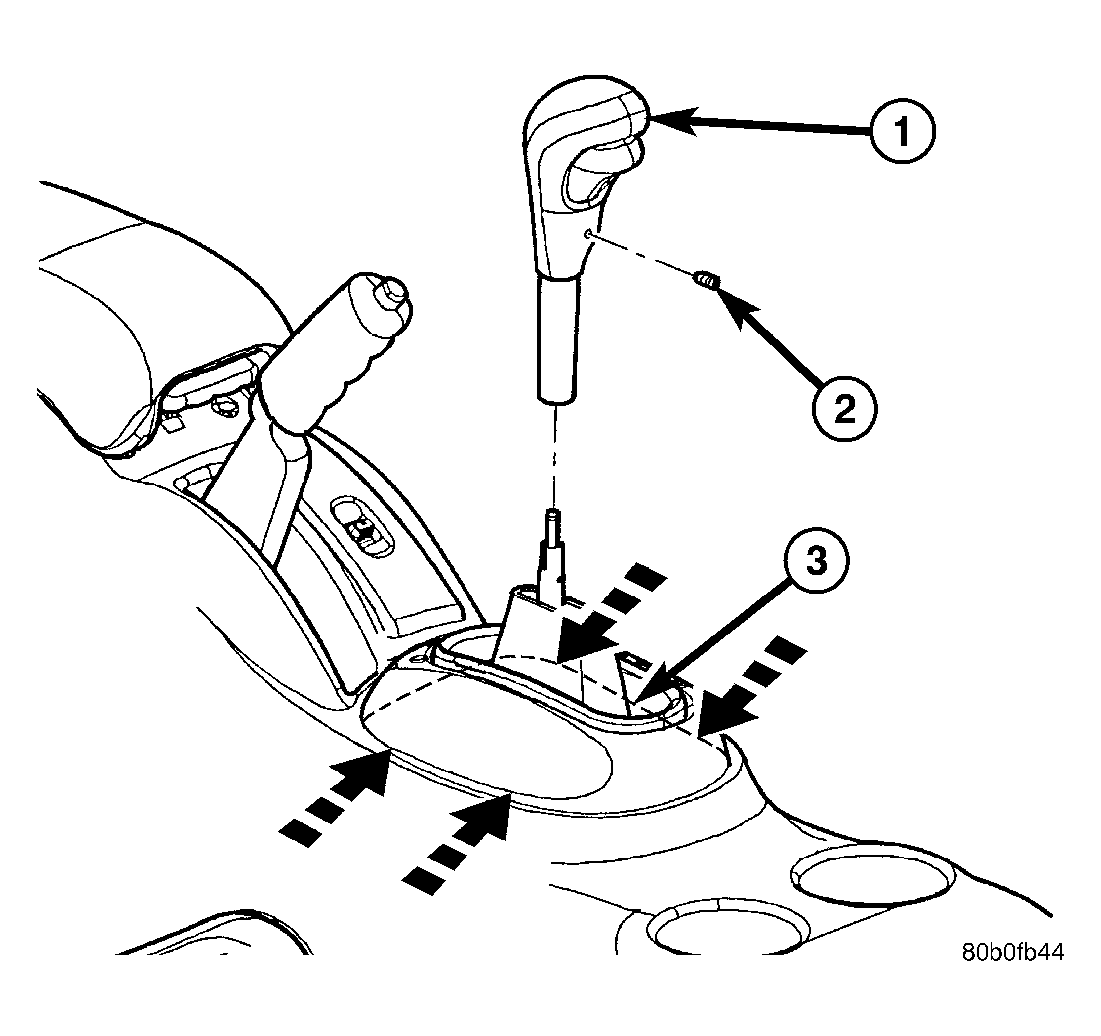

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - SHIFTER KNOB |
| 2 - SET SCREW |
| 3 - SHIFT BOOT |

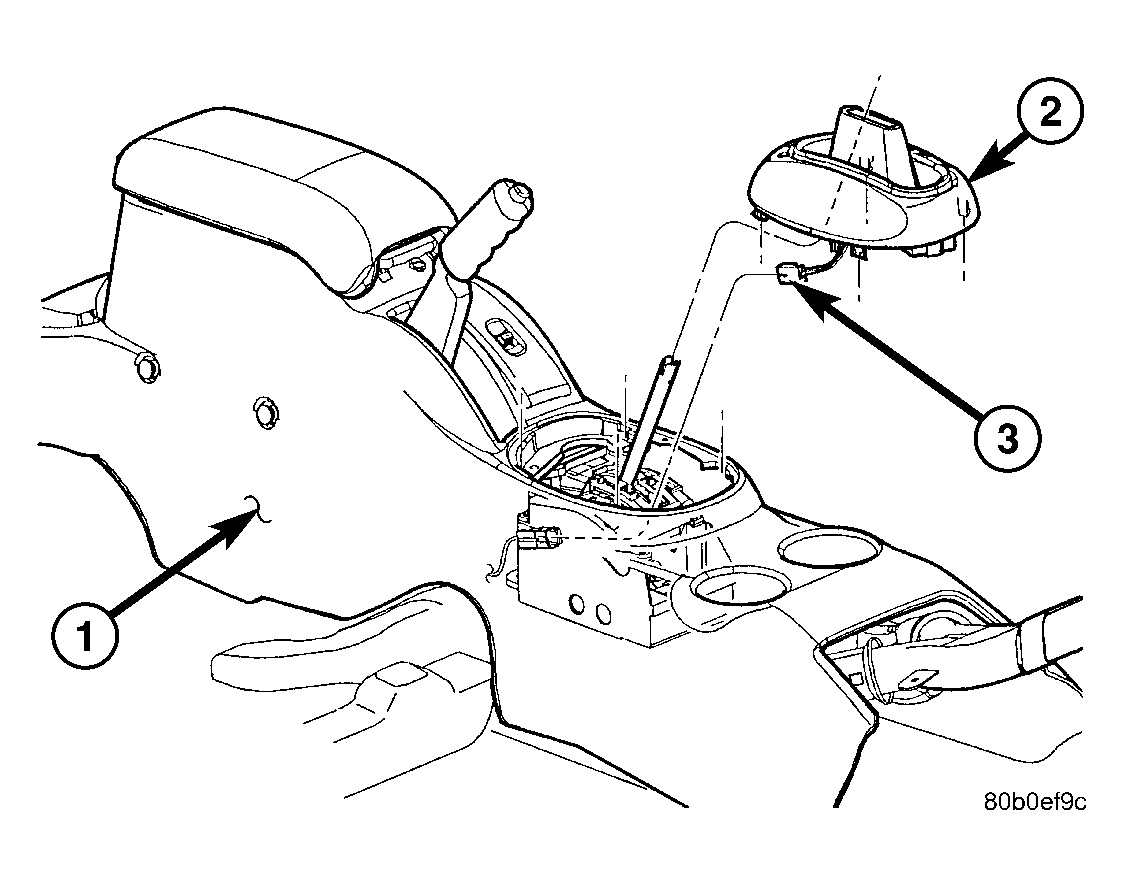

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - FLOOR CONSOLE |
| 2 - SHIFT BOOT |
| 3 - ELECTRICAL CONNECTOR |
