Quarter Trim Panel: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower convertible top.
  2. Remove rear seat cushion and rear seat back.
  3. Remove door sill trim panel.
  4. Remove speaker grille. See Fig 1.
  5. Remove vertical screws and inboard screw attaching quarter trim panel to inner quarter panel. See Fig 2.
  6. Remove screws attaching quarter trim panel to inner quarter panel through the speaker opening.
  7. Lift metal retainer blade at the front out of clip.
  8. Pull trim panel from inner quarter panel and disconnect speaker wiring connector.
  9. Remove quarter trim panel from vehicle.

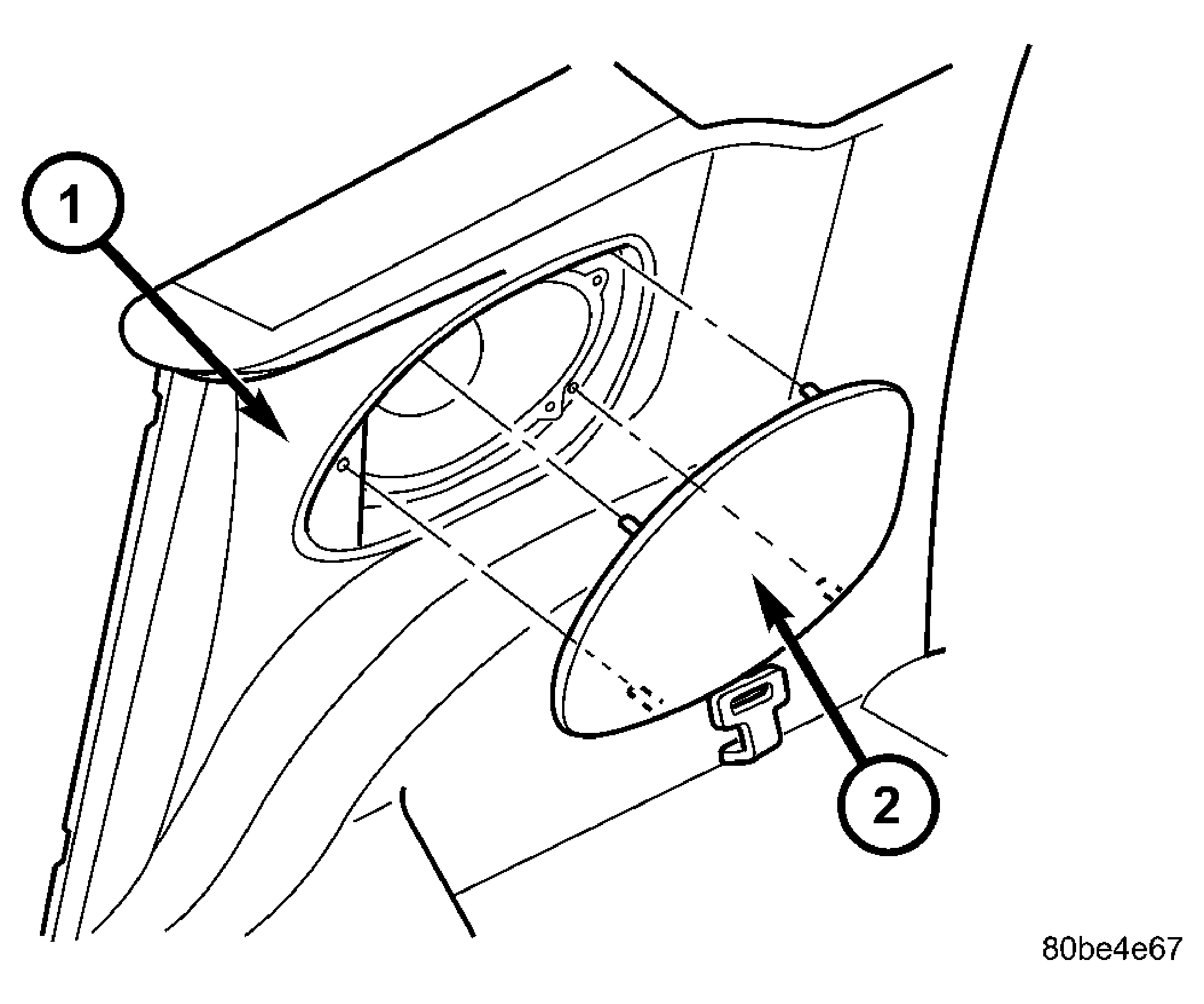

Fig 1: Speaker Grille
GC0031470Courtesy of DAIMLERCHRYSLER CORP.
1 - QUARTER TRIM PANEL
2 - SPEAKER GRILLE

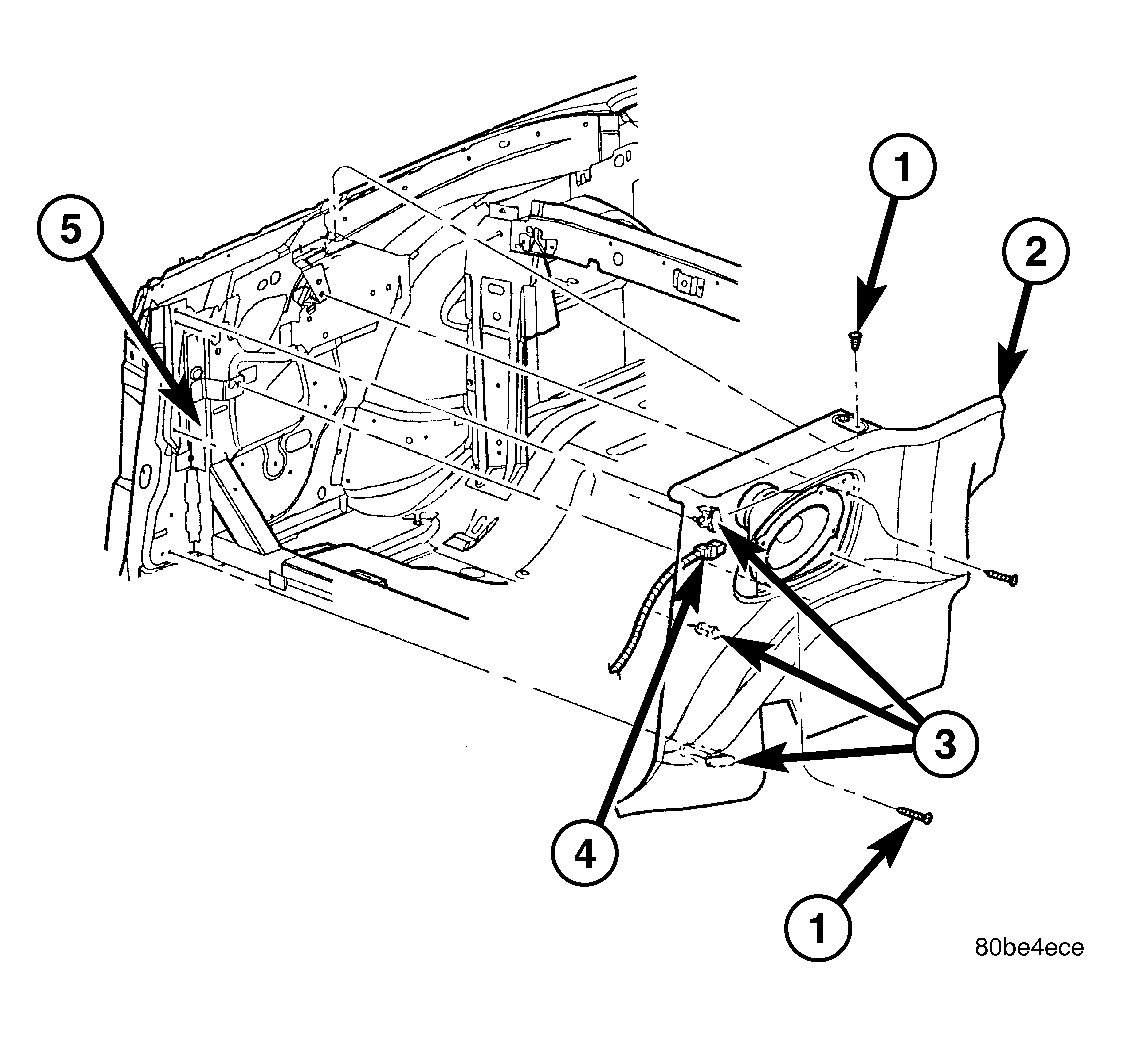

Fig 2: Quarter Trim Panel
GC0031471Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS
2 - QUARTER TRIM PANEL
3 - LOCATING PINS
4 - SPEAKER WIRE AND CONNECTOR
5 - INNER QUARTER PANEL
