Removal - Jr-27 Only

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove sun visor(s) (Refer to BODY/INTERIOR/SUN VISOR - REMOVAL) .
Remove center header trim panel (Refer to BODY/INTERIOR/INTERIOR TRIM PANELS - REMOVAL) .
Disengage clip attaching header trim panel to header panel.
Remove header trim panel from vehicle. See Fig 1.

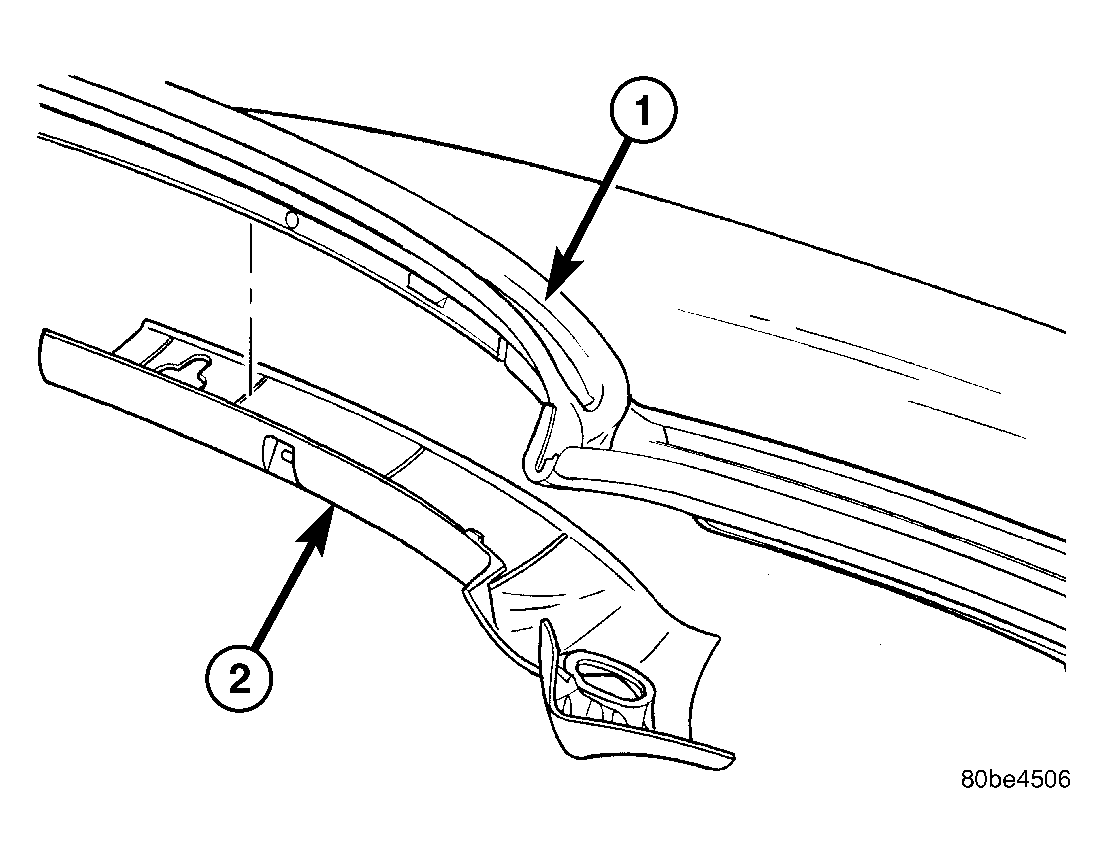

Fig 1: Header Trim Panel (Right Side)

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEADER WEATHERSTRIP

2 - HEADER TRIM PANEL
