Forward Instrument Panel Console: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove floor console.
  2. Remove instrument panel cluster hood (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) .
  3. Remove instrument panel center bezel.
  4. Remove left knee bolster.
  5. Release glove box door catches and allow to hang downward.
  6. Remove screws holding storage bin to forward instrument panel console. See Fig 1.
  7. Remove storage bin from forward instrument panel console.
  8. Remove screws holding forward instrument console to shifter mounting bracket.
  9. Remove screws attaching forward instrument panel console to instrument panel at sides of storage bin area.
  10. Remove screws attaching forward instrument panel console to instrument panel support braces.
  11. Remove forward instrument panel console from vehicle.

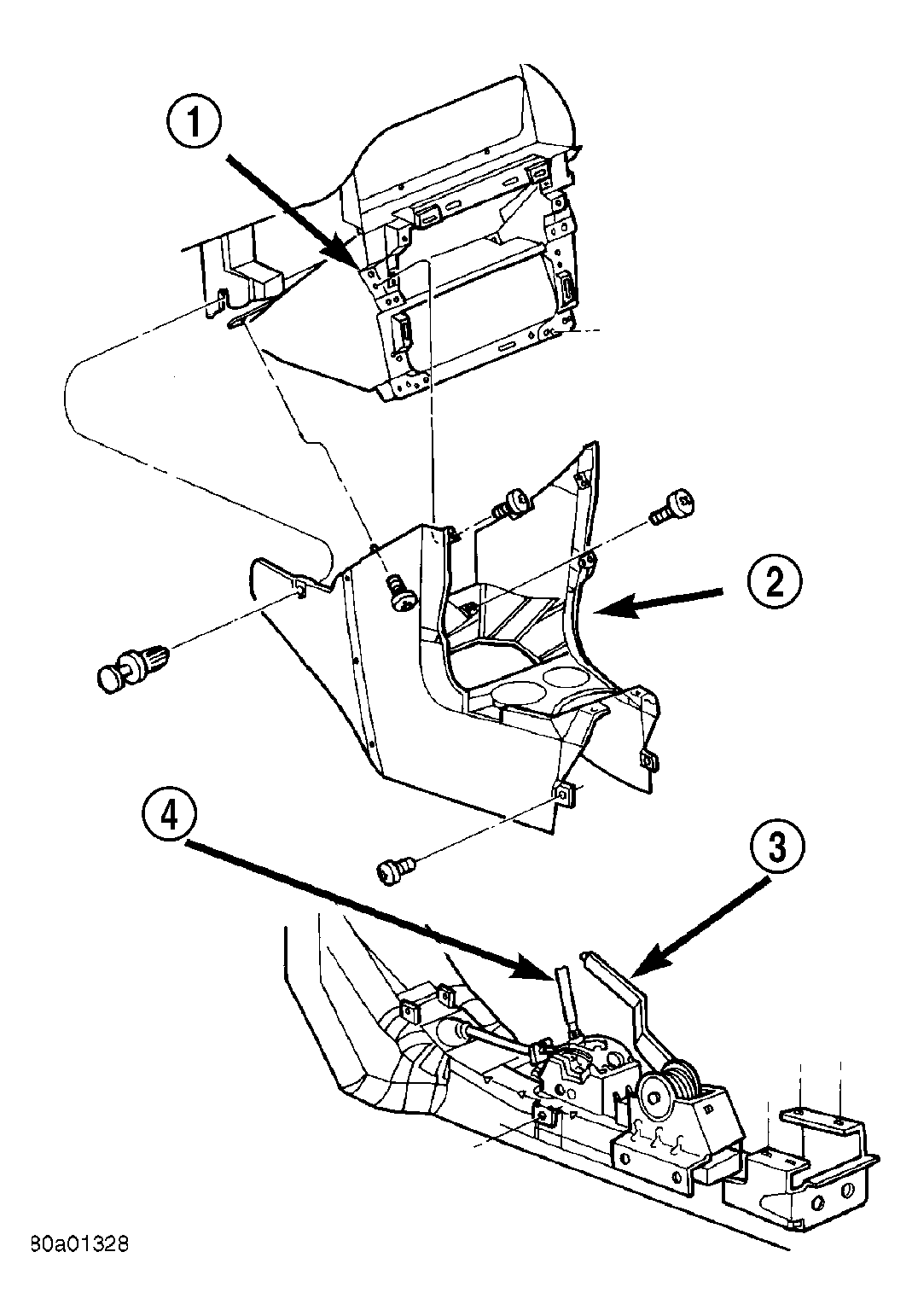

Fig 1: Forward Instrument Panel Console
GC0031466Courtesy of DAIMLERCHRYSLER CORP.
1 - INSTRUMENT PANEL
2 - FORWARD INSTRUMENT PANEL CONSOLE
3 - PARK BRAKE
4 - GEAR SHIFTER
