Door Sill Trim Panel: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

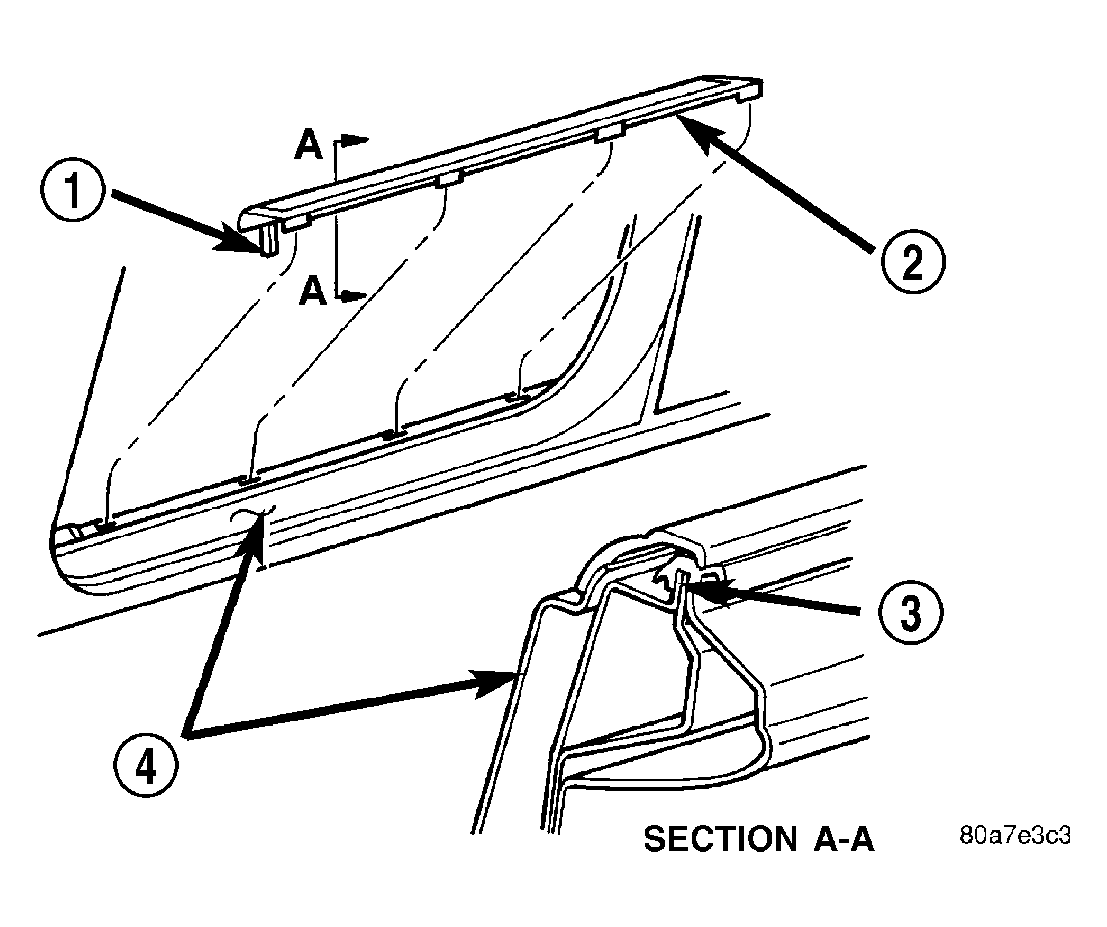

- Using a fork type prying tool, disengage clips holding door sill trim panel to door sill. See Fig 1.
- Starting at one end of sill trim panel, pull upward on sill trim panel in order to disengage clips attaching sill trim panel to door opening flange.
- Remove door sill trim panel from vehicle.
| 1 - LOCATING TAB |
| 2 - DOOR SILL TRIM PANEL |
| 3 - DOOR OPENING FLANGE |
| 4 - DOOR SILL |
