Cowl Trim Panel: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door sill trim panel.
  2. Remove screws attaching cowl trim panel to inner cowl panel.
  3. Remove cowl trim panel from vehicle. See Fig 1.

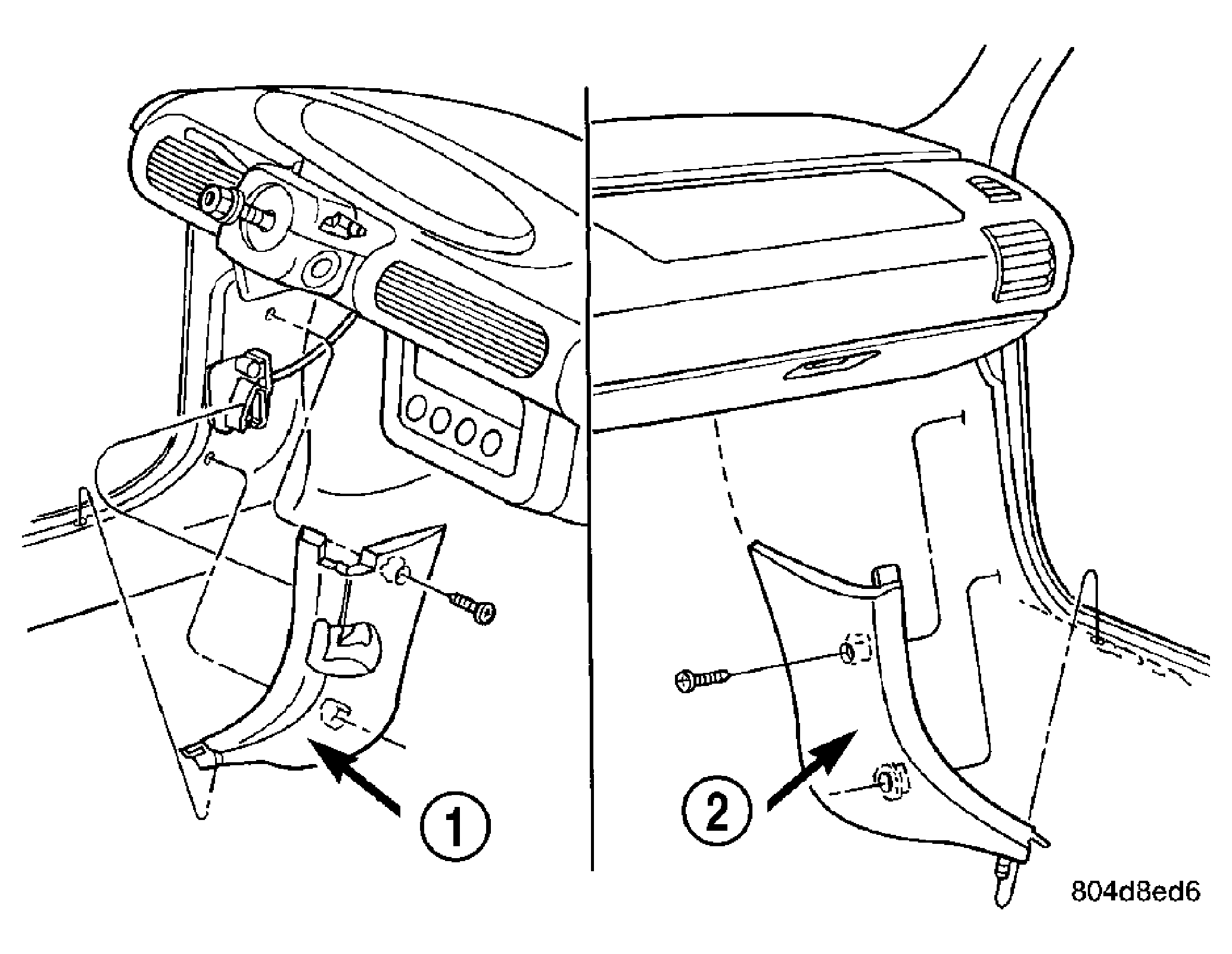

Fig 1: Cowl Trim Panel
GC0031461Courtesy of DAIMLERCHRYSLER CORP.
1 - LEFT COWL TRIM PANEL
2 - RIGHT COWL TRIM PANEL
