Removal- Jr-27 Only
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove header molding panel (Refer to BODY/INTERIOR/INTERIOR TRIM PANELS - REMOVAL) .
- Disengage clips attaching A-pillar trim panel to A-pillar.

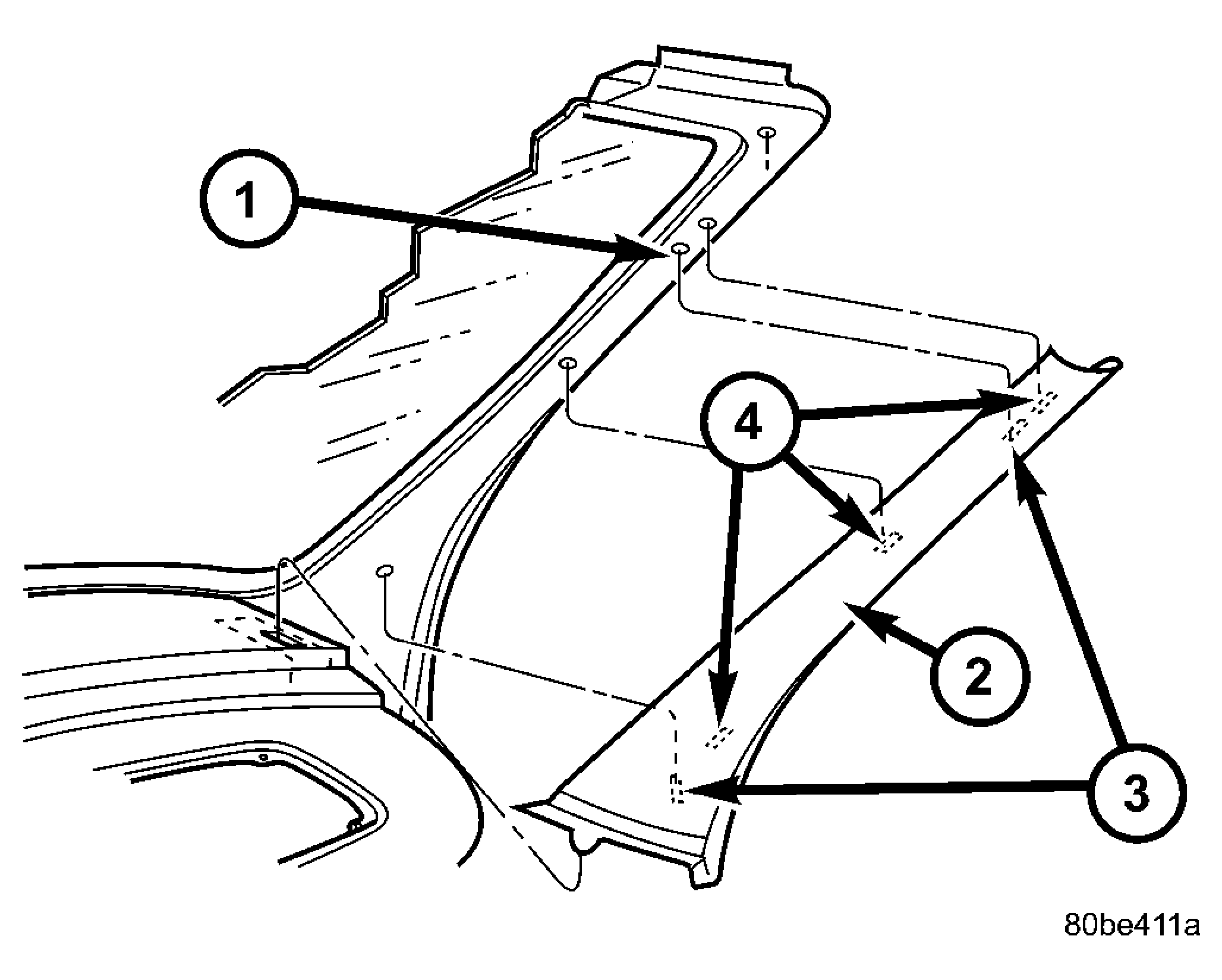

- Remove trim panel from vehicle. See Fig 1.
| 1 - A-PILLAR |
| 2 - A-PILLAR TRIM PANEL |
| 3 - LOCATOR(S) |
| 4 - CLIP(S) |
