Instrument Panel Top Cover: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

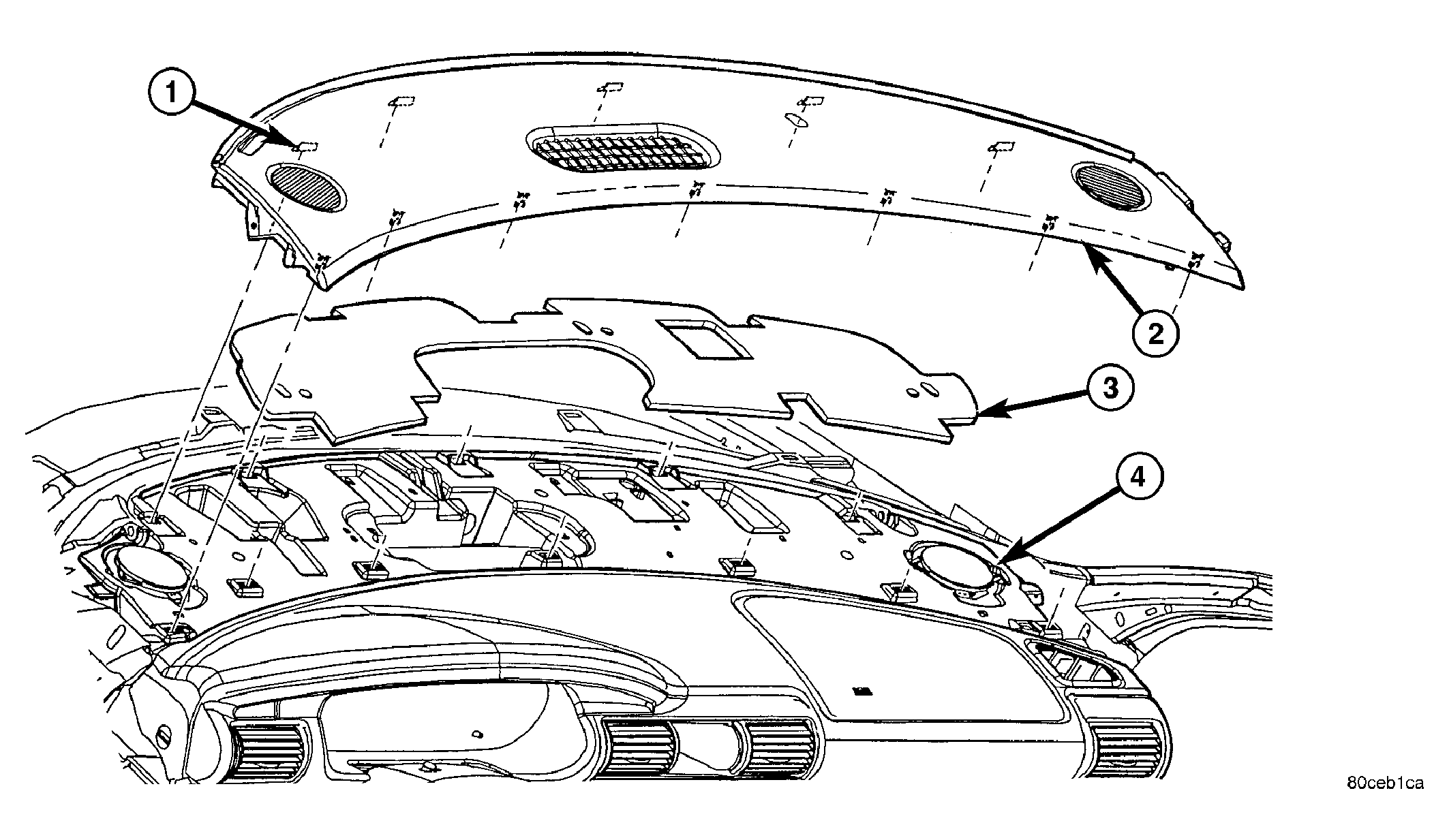

  1. Place instrument panel top cover in position on vehicle. See Figure.
  2. Push top cover forward to engage hooks to hold front of top cover to instrument panel.
  3. Engage clips to hold rear edge of top cover to instrument panel.
  4. Pull top cover rearward as you firmly push down and snap into place.
  5. Install A-pillar trim.
