Instrument Panel Outboard Bezel: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

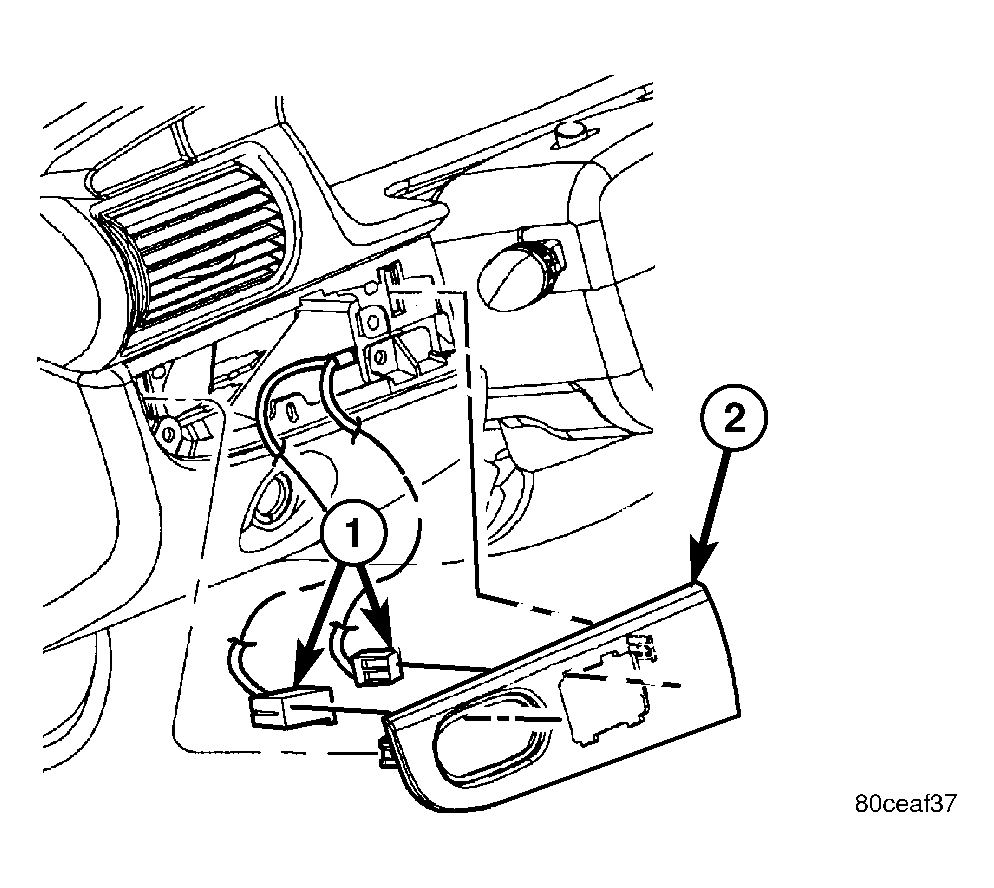

  1. Place the power mirror switch into the outboard switch bezel and firmly snap into place. See Figure.
  2. Connect the wire connector.
  3. Position the instrument panel outboard switch bezel over retaining slots and firmly snap into place.
  4. Connect the battery negative remote cable.
