Instrument Panel Cluster Bezel: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

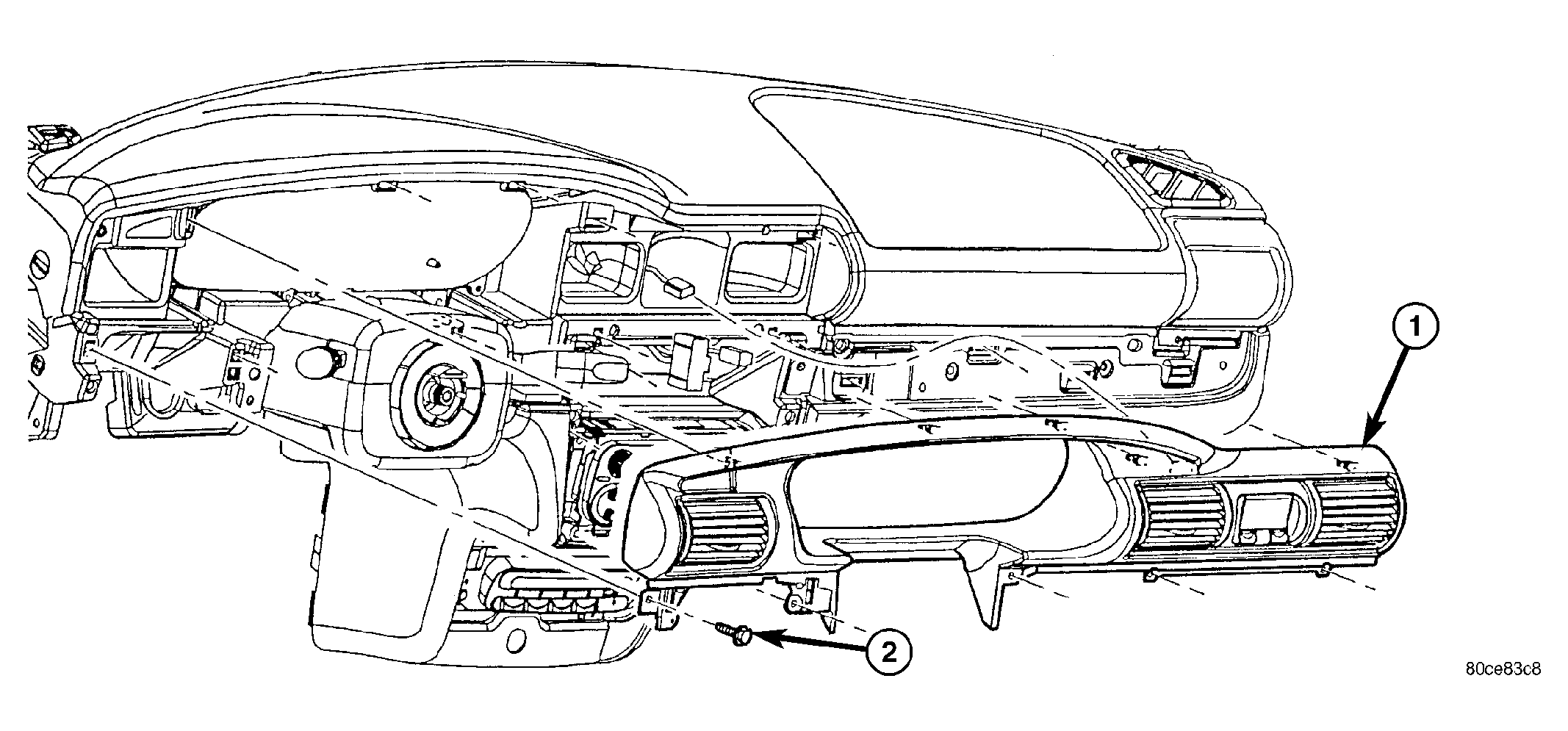

  1. Position the cluster bezel and if so equipped, connect the traveler connector, then snap the cluster bezel into position. See Figure.
  2. Install the four screws to the cluster bezel.
  3. Install the five screws to the left lower instrument panel trim.
  4. Connect the mirror switch connector and firmly snap it into place.
  5. Install the one screw to the trim bezel to the right side of the steering column.
  6. Firmly snap into place and then install one screw to the passenger side trim bezel.
  7. Connect the HVAC control connectors.
  8. Position the center bezel over the retaining slots and firmly snap instrument panel center bezel into place.
  9. Install the left end cover.
  10. Connect the battery negative cable.
