Prop Rod: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Release hood latch and open hood.CAUTION: Do not place prop-rod or substitute against outer hood panel, damage to exterior finish will result.
- Prop hood open using a length of wooden dowel rod, ex (Broomstick).
- Disengage prop-rod from retainer attaching prop-rod to radiator closure panel. See Fig 1.
- Remove prop-rod from vehicle.

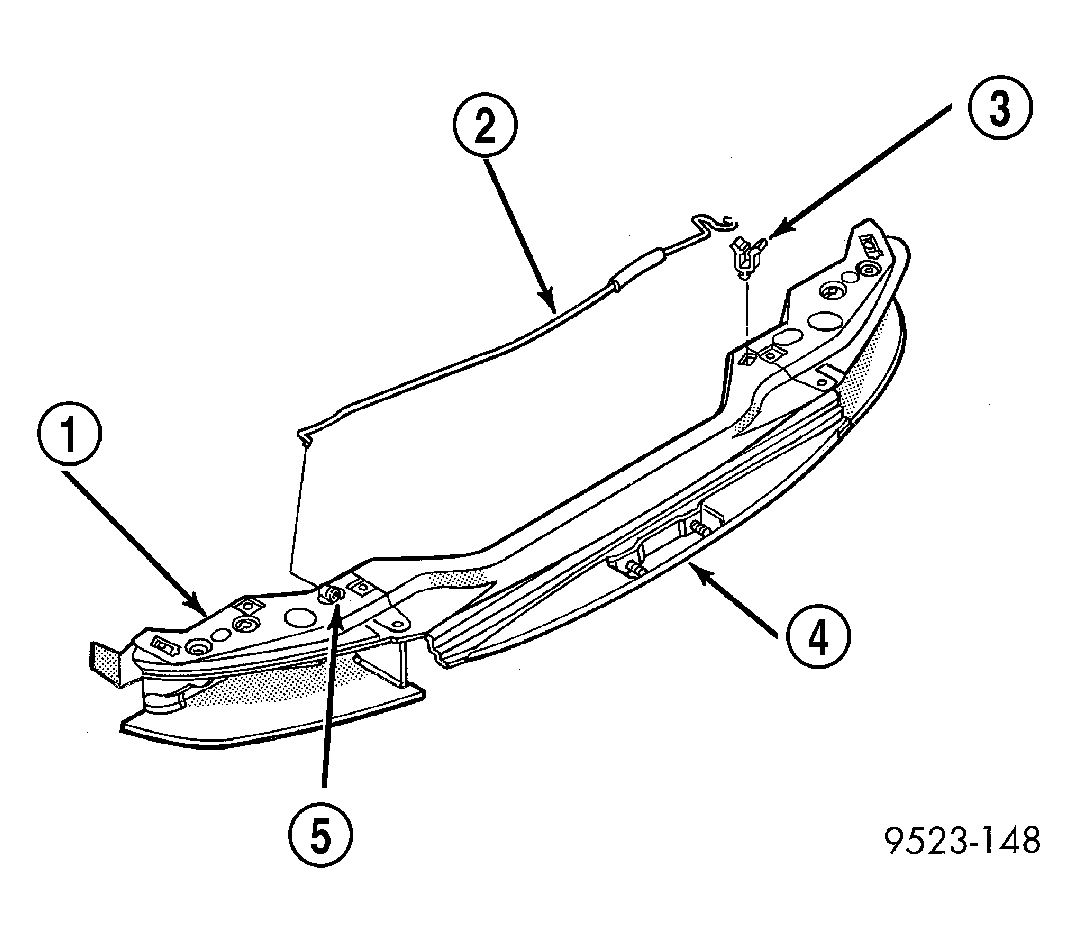

| 1 - RADIATOR CLOSURE PANEL |
| 2 - HOOD PROP-ROD |
| 3 - CLIP |
| 4 - RADIATOR SUPPORT CROSSMEMBER |
| 5 - RETAINER |
