Section 82 (Interior & Exterior - Except Coupe): Hood: Latch: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

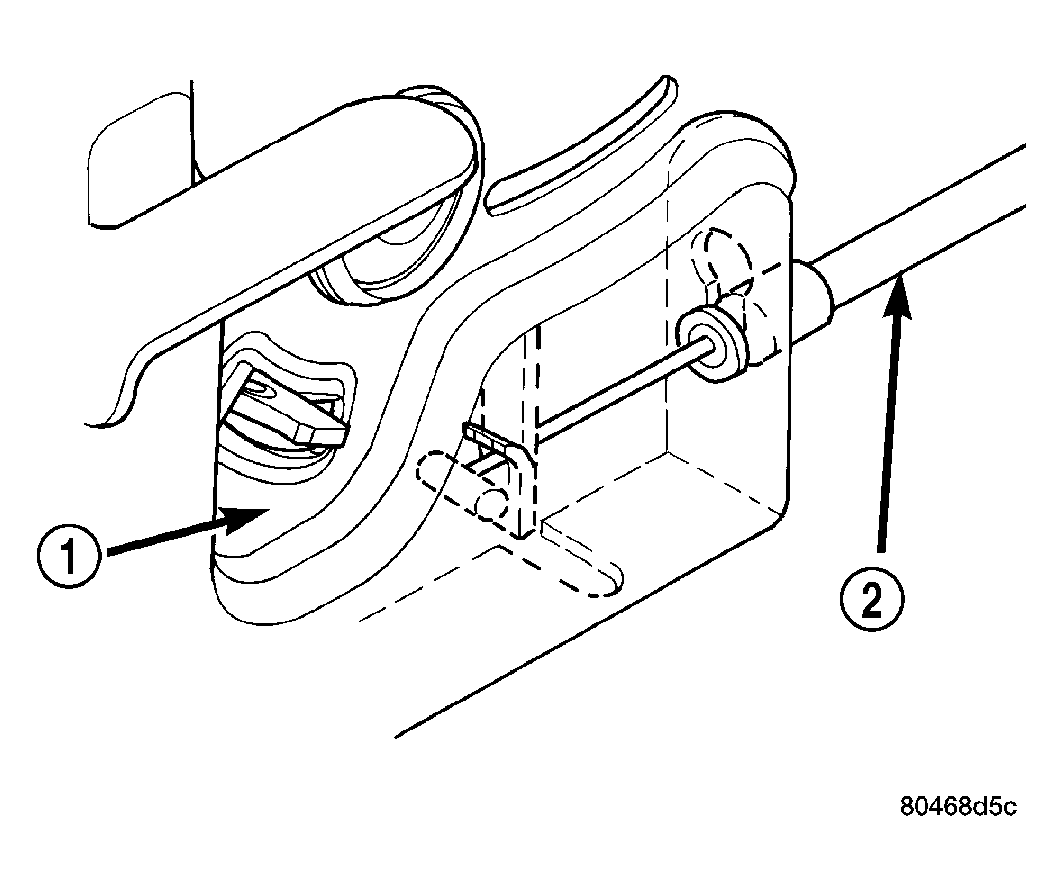

  1. Engage remote release cable into hood latch. See Figure.
  2. Position hood latch on vehicle.
  3. Install nuts attaching hood latch onto upper radiator support crossmember.
  4. Tighten nut to 28 N.m (20 ft. lbs.) torque.
  5. Verify operation. Adjust as necessary.
