Adjuster Bumper: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Ensure that hood overslam bumpers proper position. See Fig 1.

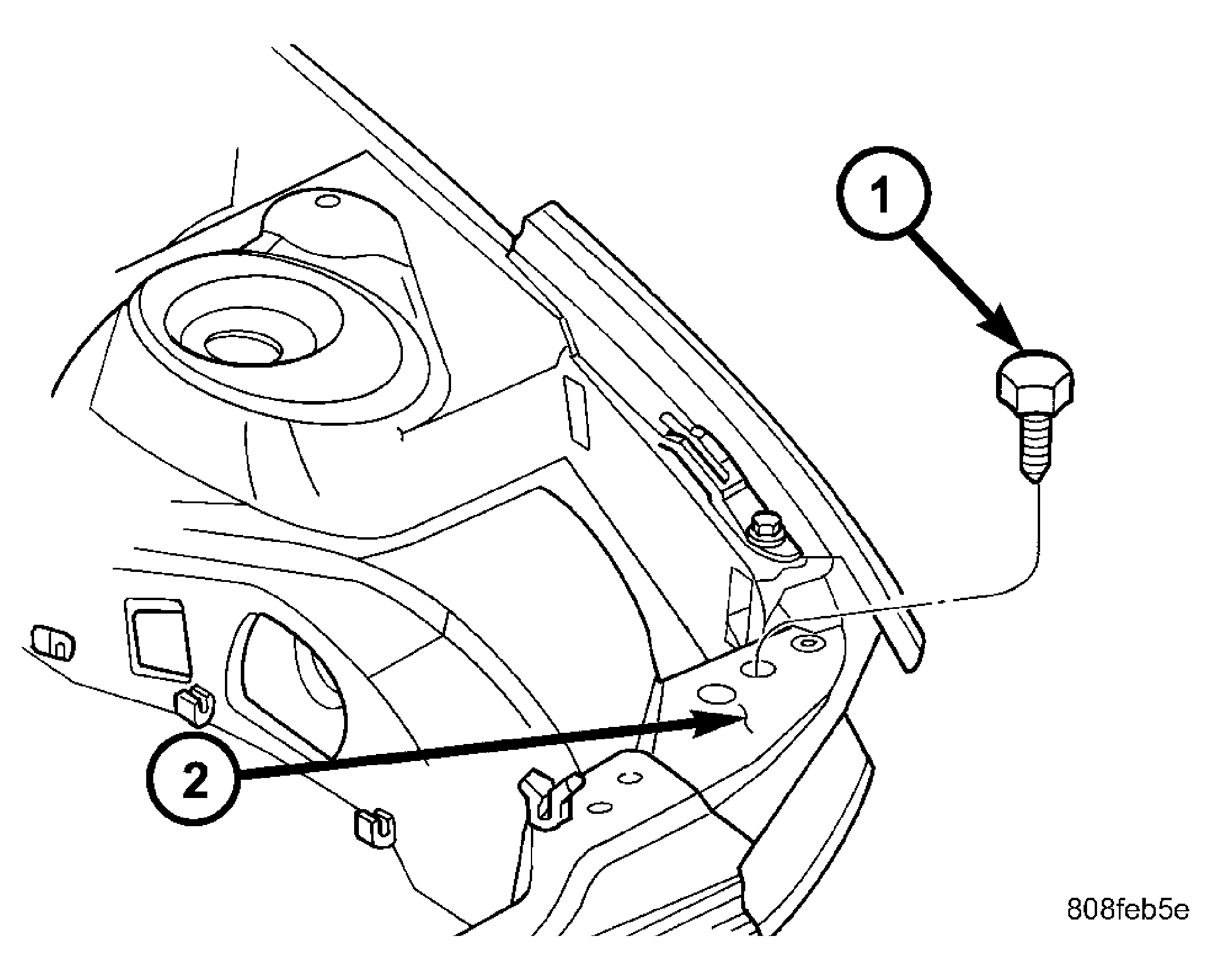

Start hood adjuster bumper into headlamp reinforcement. See Figure.
Rotate hood adjuster bumper clockwise. Adjust hood adjuster bumper to achieve a hood height that is flush across the top surfaces along fenders.
Close hood.

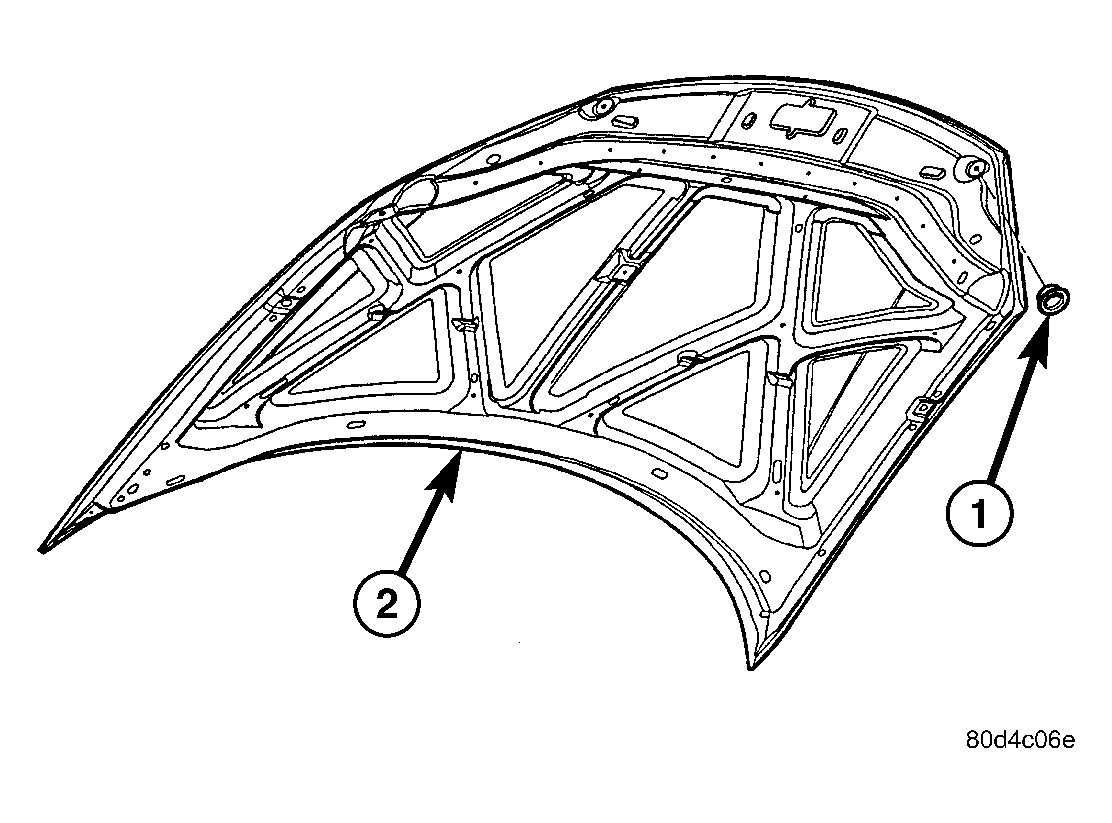

Fig 1: Hood Overslam Bumper

Courtesy of DAIMLERCHRYSLER CORP.

1 - OVERSLAM BUMPER

2 - HOOD
