Removal - Jr-41

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the decklid cover if necessary.
  2. Remove the four nuts and remove the spoiler. See Fig 1.

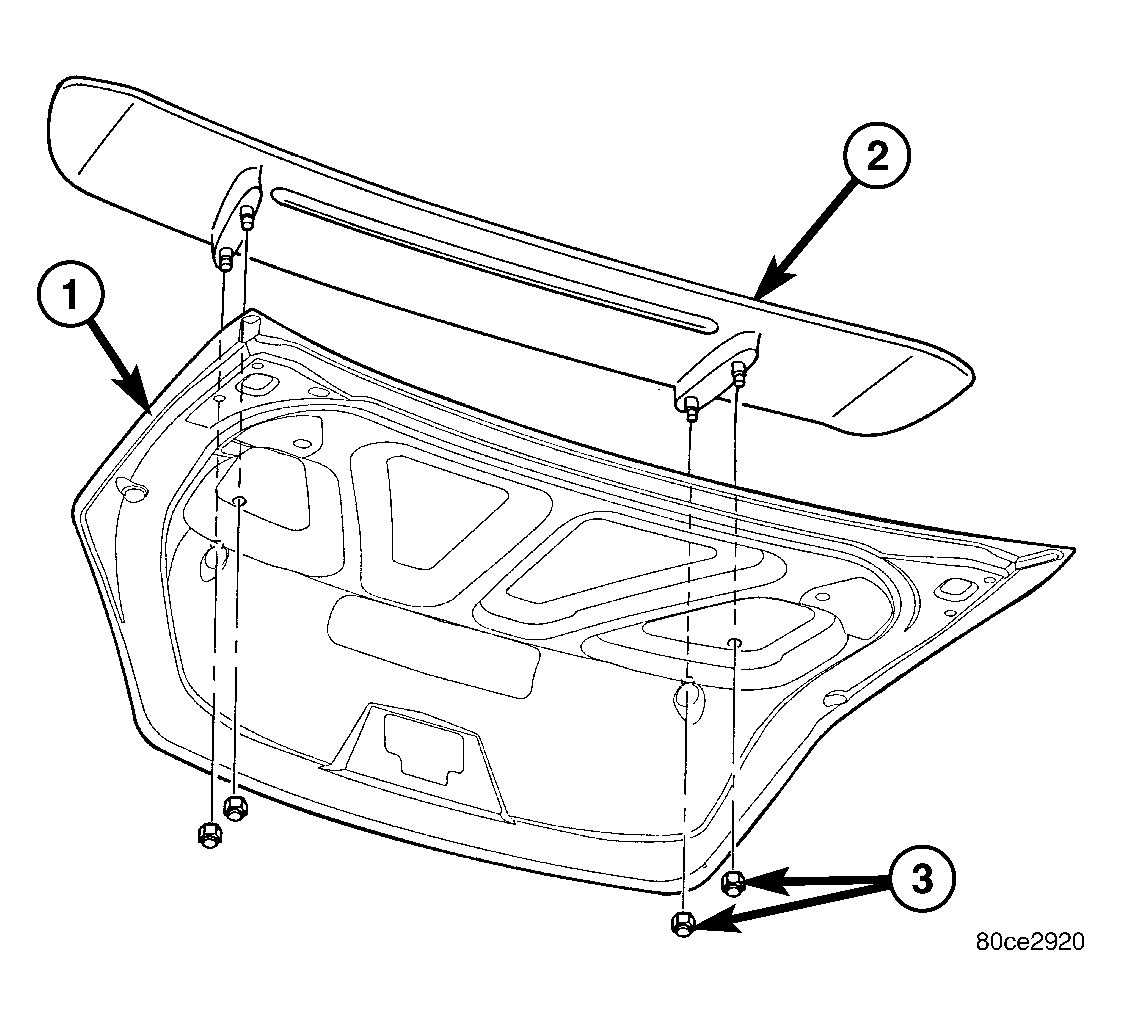

Fig 1: Spoiler - JR-41
GC0031428Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID
2 - SPOILER
3 - NUTS
