Removal - Jr-27

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove the decklid cover if necessary.
Remove the three nuts. See Fig 1.
Using a trim stick or a suitable tool release the double sided tape attaching spoiler to the decklid. See Fig 2.
Raising the rear edge of spoiler so the studs clear the decklid and remove the spoiler.
Clean area by remove all of the double sided tape and thoroughly clean the area with MOPAR(R) Super Kleen, or equivalent.

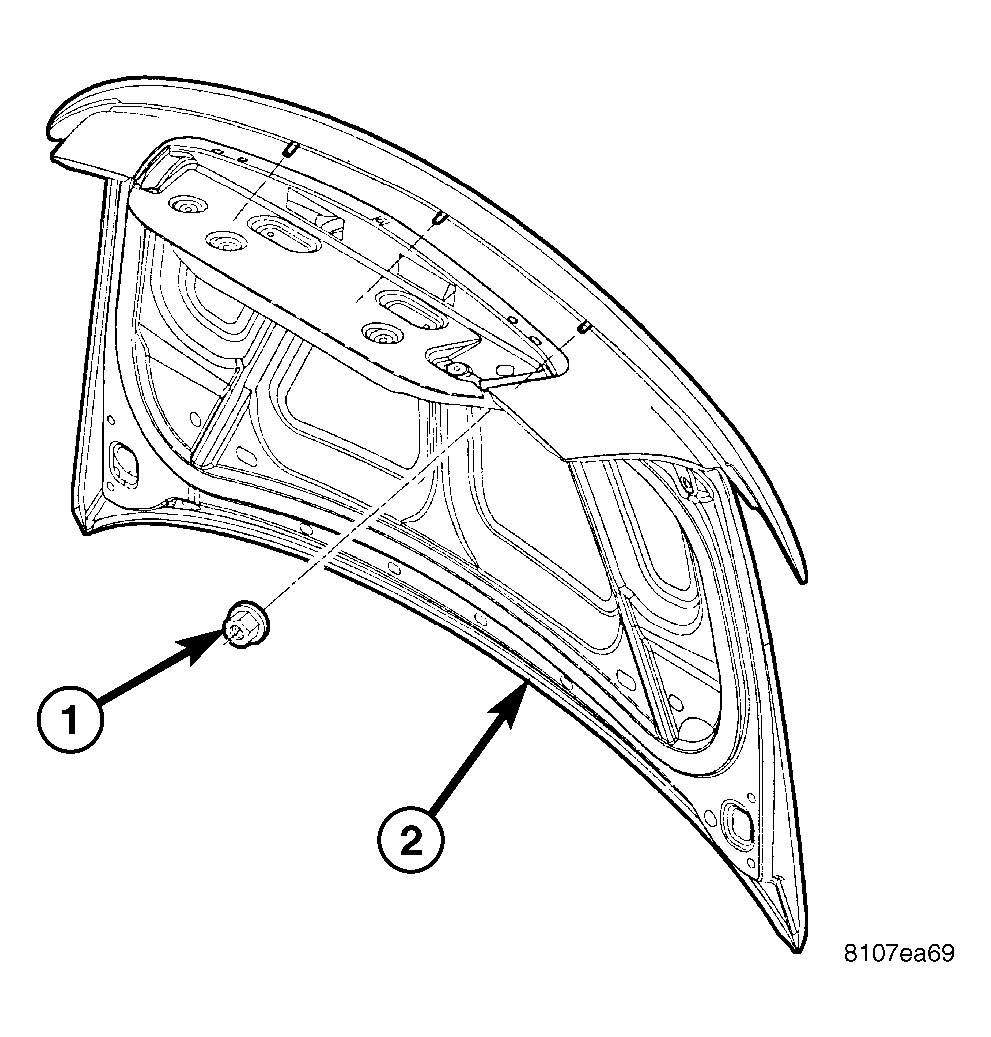

Fig 1: Spoiler Attaching Nuts

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING NUT (S)

2 - DECKLID

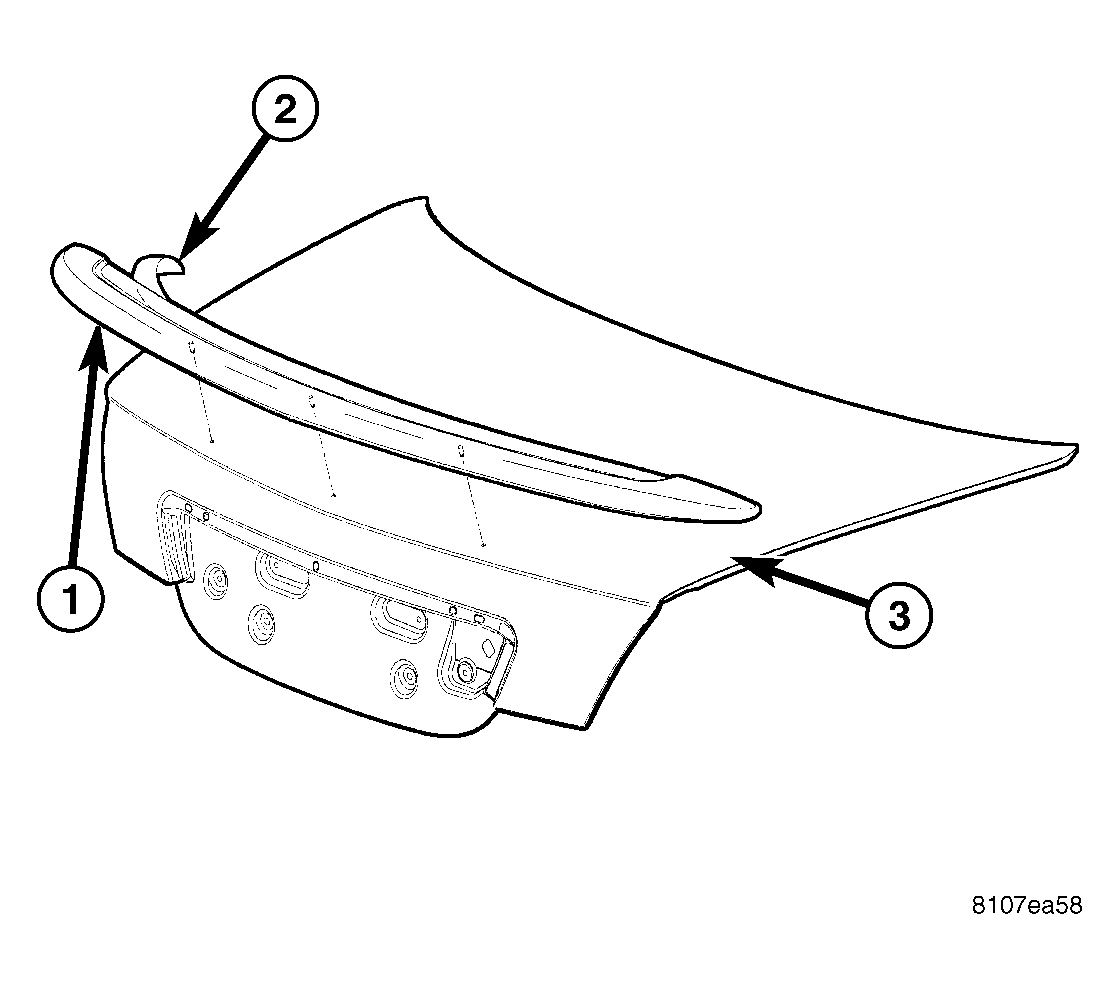

Fig 2: Spoiler

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPOILER ASSEMBLY

2 - DOUBLE BACK TAPE

3 - DECK LID
