Side View Mirror: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove side view mirror cover. See Fig 1.
- Remove the door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
- Disconnect power window mirror motor wire connector, if so equipped.
- Disengage wire harness grommet from mirror flag, if so equipped.
- Disconnect manual mirror adjuster from side mirror cover, if so equipped.
- Remove nuts attaching side view mirror to mirror flag. See Fig 2.
- Remove side view mirror from vehicle.

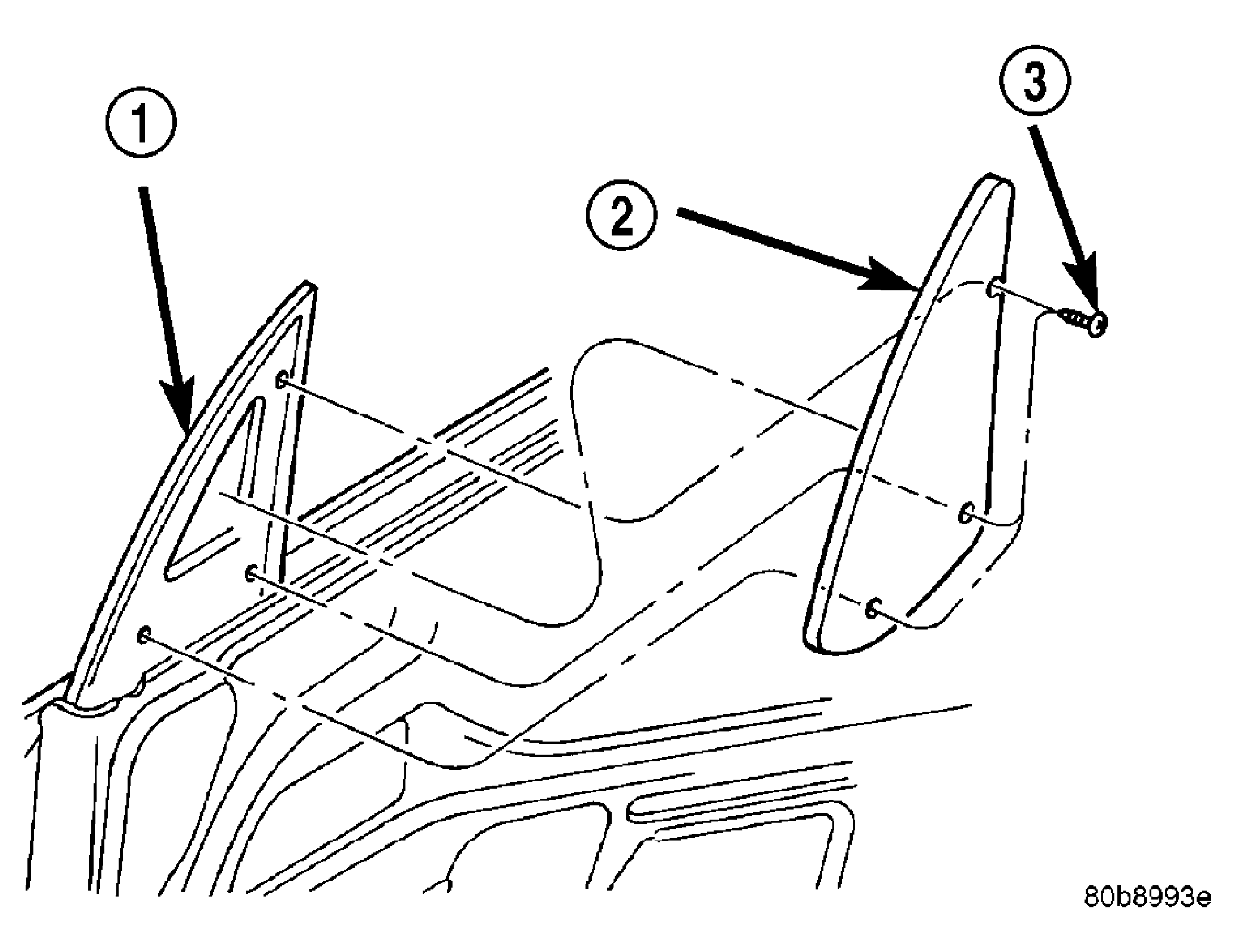

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - MIRROR FLAG |
| 2 - SIDE VIEW MIRROR COVER |
| 3 - FASTENERS |

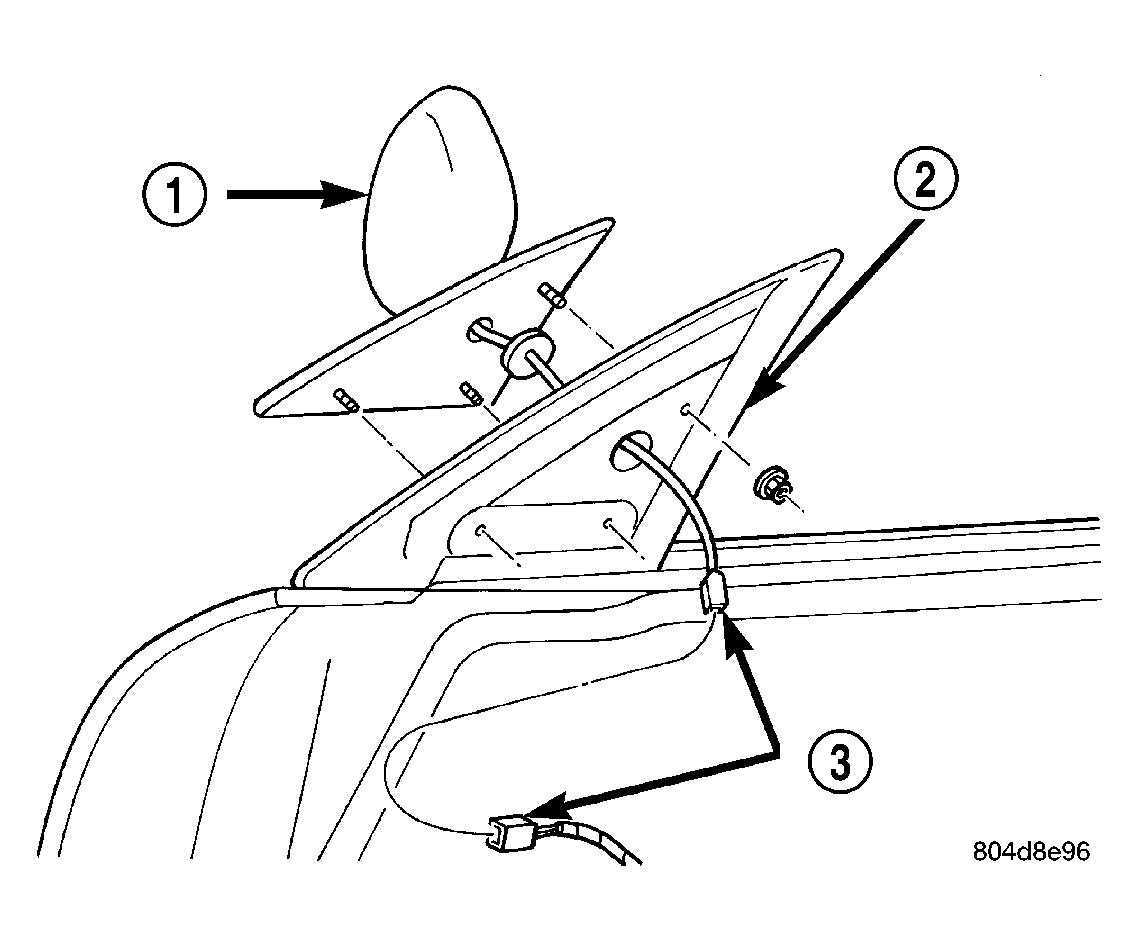

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - SIDE VIEW MIRROR |
| 2 - MIRROR FLAG/GLASS CHANNEL |
| 3 - WIRE CONNECTOR |
